126-6954 - Exmark Ultra Vac Bagger for Radius Mower, Heavy Duty (SN: 402082300 - 404314158) (2018) Blower Assembly Parts Diagram

Ultra Vac Bagger for Radius Mower, Heavy Duty

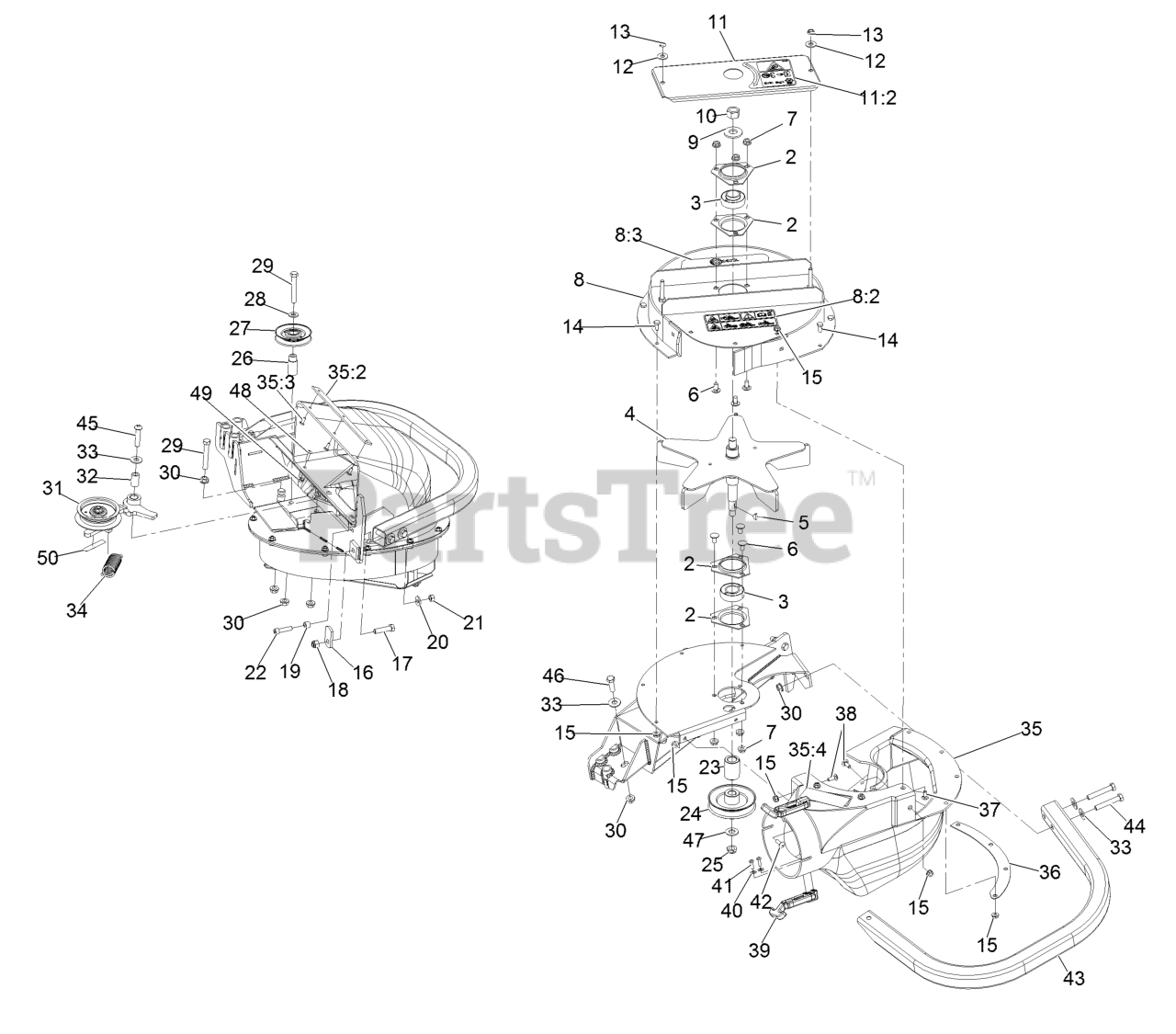

Blower Assembly Parts Diagram

  • Title

2

Exmark 1-513013

Housing-Flange

$5.49

$

In Stock, Qty 20+

0

3

Exmark 1-653346

Bearing

$69.99

$

In Stock, Qty 20+

0

4

Exmark 103-3815

Impeller

$300.99

$

In Stock, Qty 12

0

5

Exmark 3257-32

Key-Woodruff 3/16 X 5/8

$2.99

$

In Stock, Qty 20+

0

6

Exmark 3230-18

Bolt-Carriage 5/16-18 X 5/8

$5.49

$

In Stock, Qty 13

0

7

Exmark 32128-20

Nut-Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

0

8

Exmark 126-9913

Upper-Housing W/Decal

$426.99

$

Usually ships in 3-6 days

0

8:2

Exmark 126-7211

Decal-Ultravac S-Series

$7.49

$

Usually ships in 3-6 days

0

8:3

Exmark 126-9451

Decal-Warning

$8.49

$

Usually ships in 3-6 days

0

9

Exmark 1-513208

Washer-Spring Disc 5/8

$8.99

$

In Stock, Qty 20+

0

10

Exmark 3219-6

Nut-Hex 5/8-18

$3.99

$

In Stock, Qty 20+

0

11

Exmark 126-9785

Cover-Bearing W/Decal

$40.99

$

Usually ships in 3-6 days

0

11:2

Exmark 126-9595

Decal-Warning

$8.49

$

Usually ships in 3-6 days

0

12

Exmark 3256-3

Washer-5/16 Std

$0.99

$

In Stock, Qty 20+

0

13

Exmark 3296-47

Nut-Nyloc 5/16-18 Thin

$3.99

$

In Stock, Qty 20+

0

14

Exmark 321-3

Screw-HH 1/4-20 X 5/8

$1.49

$

In Stock, Qty 12

0

15

Exmark 32128-33

Nut-Whizlock 1/4-20

$0.99

$

In Stock, Qty 20+

0

16

Exmark 1-353054

Latch-Catcher, Grass

$7.99

$

In Stock, Qty 7

0

17

Exmark 323-8

Screw-HH 3/8-16 X 1 1/2

$1.49

$

In Stock, Qty 20+

0

18

Exmark 3296-39

Nut-Nyloc 3/8-16

$2.99

$

In Stock, Qty 20+

0

19

Exmark 103-0126

Bushing

$6.99

$

In Stock, Qty 11

0

20

Exmark 1-303334

Washer-Spring Disc 5/16

$2.99

$

In Stock, Qty 7

0

21

Exmark 3217-6

Nut-Hex 5/16-18

$1.49

$

In Stock, Qty 5

0

22

Exmark 3274-18

Screw-Sh 5/16-18 X 1 1/4

$9.49

$

In Stock, Qty 10

0

23

Exmark 1-653365

Spacer

$27.99

$

In Stock, only 4 left!

0

24

Exmark 103-1047

Sheave-Blower

$75.99

$

In Stock, Qty 6

0

25

Exmark 3296-28

Nut-Lock, NI

$1.99

$

In Stock, Qty 6

0

26

Exmark 1-653366

Spacer

$25.99

$

In Stock, only 3 left!

0

27

Exmark 1-653322

Idler-Inside

$66.99

$

In Stock, Qty 12

0

28

Exmark 3256-24

Washer-3/8 SAE

$0.99

$

In Stock, Qty 20+

0

29

Exmark 323-12

Screw-HH 3/8-16 X 2 1/2

$2.49

$

In Stock, Qty 20+

0

30

Exmark 3290-357

Nut-Whizlock 3/8-16

$0.99

$

In Stock, Qty 20+

0

31

Exmark 1-654330

ASM, Idler

$123.99

$

Usually ships in 3-6 days

0

32

Exmark 103-0130

Bushing-Pivot, Idler

$18.99

$

In Stock, Qty 20+

0

33

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

0

34

Exmark 1-653331

Spring

$12.99

$

In Stock, Qty 9

0

35

Exmark 109-1985

Chute, Blower (46, 50 And 56)

$455.99

$

Usually ships in 3-6 days

0

35:2

Exmark 103-4752-03

Plate-Reinforcing

$13.99

$

Usually ships in 3-6 days

0

35:3

Exmark 114439

Rivet

$1.49

$

In Stock, Qty 20+

0

35:4

Exmark 126-4853

Decal-Warning

$6.99

$

Usually ships in 3-6 days

0

36

Exmark 1-653596-03

Plate-Backing, Blower

$49.99

$

In Stock, only 1 left!

0

37

Exmark 3229-11

Bolt-Carriage 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

0

38

Exmark 3229-1

Bolt-Carriage 1/4-20 X 3/4

$3.99

$

In Stock, Qty 11

0

39

Exmark 103-4080

Latch-Rubber

$31.99

$

In Stock, Qty 8

0

40

Exmark 3256-14

Washer-#10 Std

$0.99

$

In Stock, Qty 20+

0

41

Exmark 3290-500

Screw-PPH #10-24 X 5/8

$1.49

$

In Stock, Qty 20+

0

42

Exmark 1-803076

Screw-PPH 1/4-20 X 3/4

$1.49

$

Usually ships in 3-6 days

0

43

Exmark 109-1122-01

Bumper

$116.99

$

In Stock, only 1 left!

0

44

Exmark 323-11

Screw-HH 3/8-16 X 2 1/4

$2.49

$

In Stock, Qty 14

0

45

Exmark 3274-107

Screw-Button Head 3/8-16 X 1 3/4

$5.49

$

In Stock, Qty 17

0

46

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

47

Exmark 3256-26

Washer-1/2 SAE

$0.99

$

In Stock, Qty 20+

0

48

Exmark 1-803075

Screw-Truss Head #10-24 X 3/4

$1.49

$

In Stock, Qty 6

0

49

Exmark 3290-148

Nut-Whizlock #10-24

$0.99

$

In Stock, Qty 15

0

50

Exmark 126-4659

Decal-Warning

$5.49

$

Usually ships in 3-6 days

0
