126-8680 - Exmark Ultra Vac Bagger for Lazer Z-Series, Diesel (SN: 400000000 - 402082299) (2017)

Ultra Vac Bagger for Lazer Z-Series, Diesel

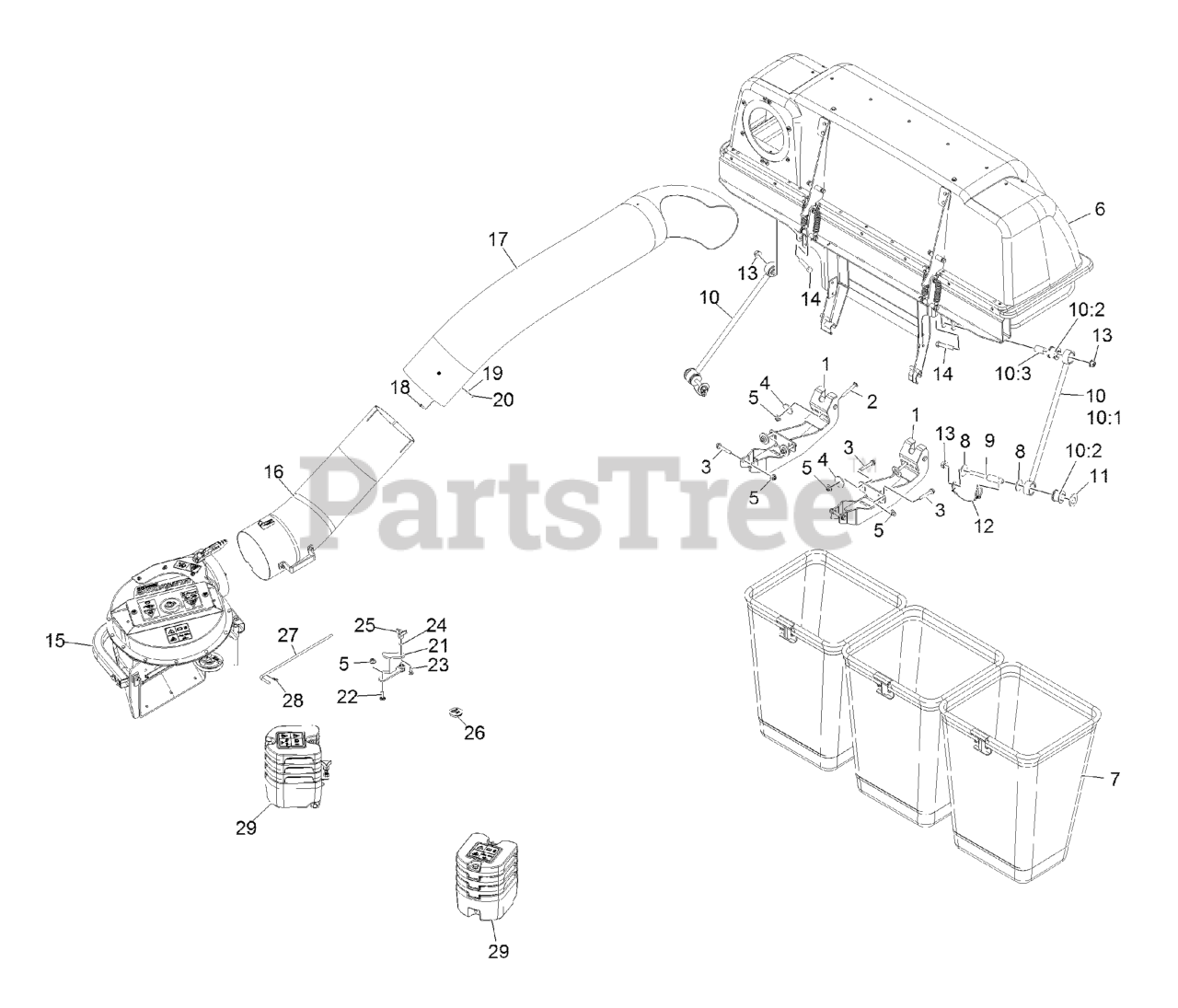

126-8680 - Exmark Ultra Vac Bagger for Lazer Z-Series, Diesel (SN: 400000000 - 402082299) (2017) > Parts Diagrams (13) > 126-8680 Assembly

  • Title
135-2023-03

1

MOUNT-BAGGER, LOWER

Part# 135-2023-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $150.73

3231-10

2

SCREW-CARR

Part# 3231-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.44

3234-39

3

Screw-HHF

Part# 3234-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.30

115-1485

4

Washer-Plain

Part# 115-1485

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.61

109-6658

5

Nut-Nyloc 3/8-16 Flg

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.77

6

ASM, Hood Duv3-Bag

Part#

Note: - Not serviced separately

Not available

116-0754

7

BAG AND FRAME ASM

Part# 116-0754

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $128.12

86-1990

8

WASHER-THRUST

Part# 86-1990

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.97

126-9293

9

PIN-BAGGER BRKT

Part# 126-9293

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.08

126-9557

10

SUPPORT ROD ASM

Part# 126-9557

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $49.82

109-5014-03

10:1

Wld,Panhard Rod

Part# 109-5014-03

OEM Warranty Repair Part for Exmark

Currently unavailable

135-2466

10:2

BUSHING-RUBBER

Part# 135-2466

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.03

109-5010

10:3

SPACER

Part# 109-5010

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.18

3256-62

11

Washer-Flat

Part# 3256-62

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.66

126-9292

12

PIN-MOUNT, BAGGER

Part# 126-9292

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.15

99-5107

13

Nut-Lock 1/2-13

Part# 99-5107

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.40

325-10

14

SCREW-HH

Part# 325-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.28

109-9836

15

ASM, BLOWER LARGE - SVC O

Part# 109-9836

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1388.29

109-1973

16

LOWER TUBE ASM

Part# 109-1973

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $215.85

126-8679

17

TUBE-UPPER

Part# 126-8679

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $215.85

32105-13

18

SCREW-HWH

Part# 32105-13

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.40

3256-14

19

WASHER-FLAT

Part# 3256-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

3296-2

20

NUT-LOCK, NI

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.29

109-9463-03

21

BRACKET,BELT COVER

Part# 109-9463-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $32.63

3231-28

22

Bolt-Carriage 3/8-16 X 1 1/4

Part# 3231-28

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.23

3230-2

23

BOLT-CARR

Part# 3230-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.08

109-5667

24

RING-RETAINING, BOLT

Part# 109-5667

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.29

1-323385

25

KNOB-3 PRONG

Part# 1-323385

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.75

103-1279

26

PLUG, BLACK NYLON 1.75

Part# 103-1279

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.50

109-3458

27

PIN,CHUTE PIVOT

Part# 109-3458

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.69

1-806003

28

PIN-COTTER

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

29

ASM-Caster Weight

Part#

Note: - Not serviced separately

Not available
