126-8680 - Exmark Ultra Vac Bagger for Lazer Z-Series, Diesel (SN: 400000000 - 402082299) (2017)

Ultra Vac Bagger for Lazer Z-Series, Diesel

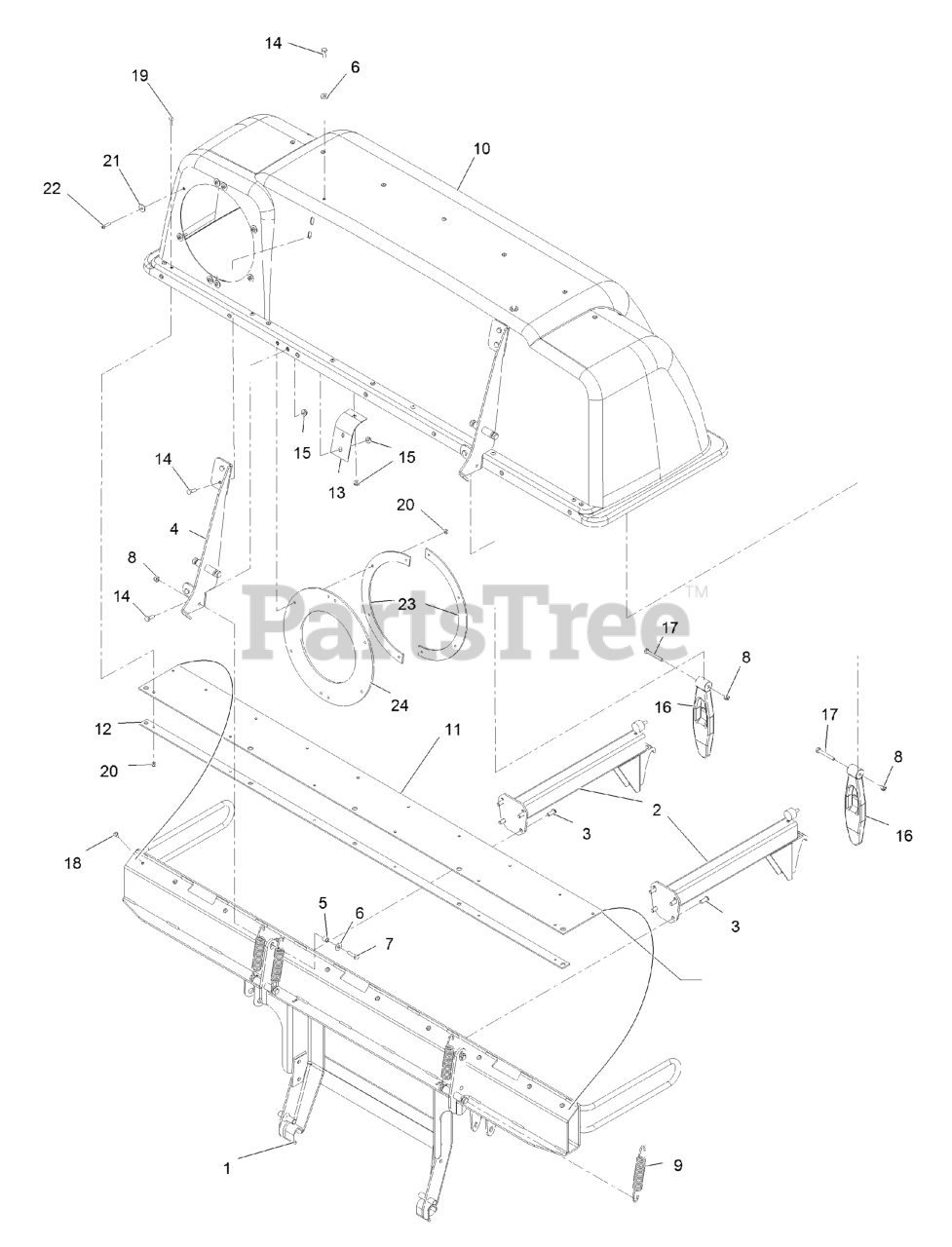

126-8680 - Exmark Ultra Vac Bagger for Lazer Z-Series, Diesel (SN: 400000000 - 402082299) (2017) > Parts Diagrams (13) > Hood and Frame Assembly

  • Title
126-8224-03

1

FRAME-3-BAG

Part# 126-8224-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $751.27

103-5166

2

BAG SUPPORT ASM

Part# 103-5166

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $111.90

3274-55

3

SCREW-HSBH

Part# 3274-55

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

109-8351-03

4

HINGE

Part# 109-8351-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $69.25

1-633545

5

SPACER

Part# 1-633545

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.91

3256-2

6

WASHER-FLAT

Part# 3256-2 (Superseded to 3256-2)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.46

321-6

7

SCREW-HH

Part# 321-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.41

3296-42

8

NUT-LOCK, NI

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.36

1-653544

9

SPRING-EXTENSION

Part# 1-653544

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.73

103-0437

10

ASM, HOOD

Part# 103-0437

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $767.10

103-0451

11

SEAL-HINGE

Part# 103-0451

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $188.15

103-0452-03

12

PLATE-BACKING

Part# 103-0452-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.69

103-0391

13

REINFORCEMENT-HOOD, BAGGE

Part# 103-0391

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.68

321-4

14

SCREW-HH

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

32128-33

15

NUT-HF

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

1-653403

16

LATCH

Part# 1-653403

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $54.25

321-11

17

SCREW-HH

Part# 321-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

114439

18

RIVET-BLIND

Part# 114439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.59

1-803075

19

SCREW-HEAD, TRUSS

Part# 1-803075

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.83

3296-2

20

NUT-LOCK, NI

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.29

3256-61

21

WASHER-FLAT

Part# 3256-61

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.34

3250-27

22

SCREW-PPH

Part# 3250-27

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.57

103-0378

23

CLAMP-SEAL

Part# 103-0378

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.72

103-0439

24

SEAL-TUBE

Part# 103-0439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $34.61
