126-8680 - Exmark Ultra Vac Bagger for Lazer Z-Series, Diesel (SN: 400000000 - 402082299) (2017)

Ultra Vac Bagger for Lazer Z-Series, Diesel

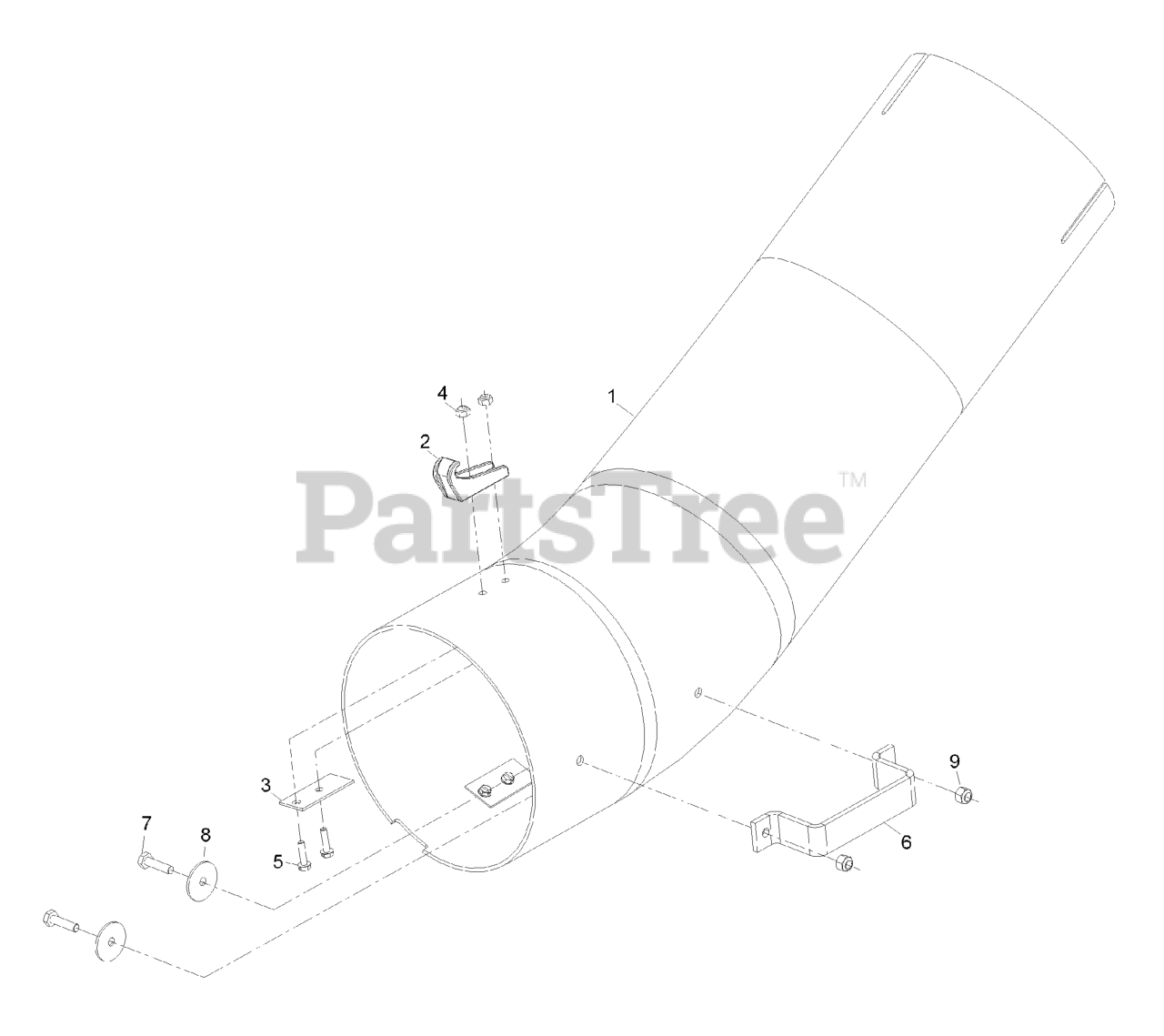

126-8680 - Exmark Ultra Vac Bagger for Lazer Z-Series, Diesel (SN: 400000000 - 402082299) (2017) > Parts Diagrams (13) > Lower Tube Assembly No. 109-1973

  • Title
1-353005-03

1

HANDLE

Part# 1-353005-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.82

103-2897

2

LATCH-CATCH

Part# 103-2897

Note: - Kit No. 103-4143 - Contains catch, rubber latch, and mounting hardware

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.07

103-3079

3

PLATE-BACKING

Part# 103-3079

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.76

109-1974

4

TUBE-LOWER

Part# 109-1974

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $148.90

321-6

5

SCREW-HH

Part# 321-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.41

3256-55

6

WASHER-FLAT

Part# 3256-55

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.81

3296-2

7

NUT-LOCK, NI

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.29

3296-42

8

NUT-LOCK, NI

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.36

32105-13

9

SCREW-HWH

Part# 32105-13

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.40
