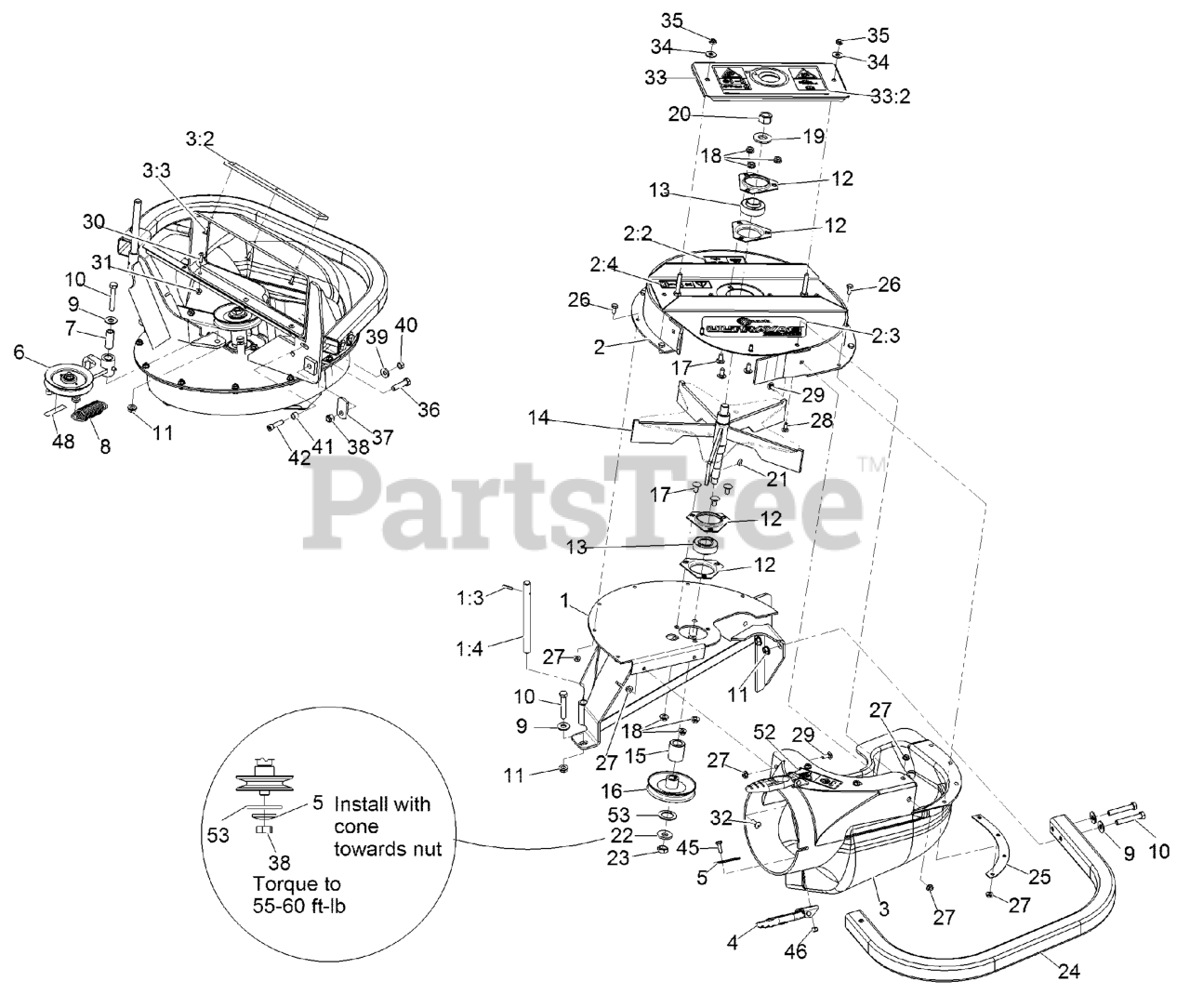

126-8680 - Exmark Ultra Vac Bagger for Lazer Z-Series, Diesel (SN: 402082300 - 404314158) (2018) > Parts Diagrams (13) > Blower Assembly No. 109-9836

  • Title
109-8885-03

1

WLD,FRAME LG BLOWER

Part# 109-8885-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $446.15

1-806323

1:3

PIN-ROLL

Part# 1-806323

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.59

1-353050

1:4

SHAFT-CATCHER, GRASS

Part# 1-353050

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.22

116-4816

2

ASM-UPPER HOUSING LARGE

Part# 116-4816

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $380.02

126-4662

2:2

DECAL-WARNING, TRACTION

Part# 126-4662

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.58

126-7210

2:3

Decal-Ultravac X-Series

Part# 126-7210

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.86

112-9028

2:4

DECAL-COVER, MISSING

Part# 112-9028

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.24

109-2954

3

ASM,BLOWER CHUTE LZ

Part# 109-2954

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $229.74

103-4751-03

3:2

PLATE,REINFORCEMENT LARGE

Part# 103-4751-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.58

114439

3:3

RIVET-BLIND

Part# 114439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.59

103-2898

4

LATCH-RUBBER

Part# 103-2898

Note: Kit No. 103-4143 - Contains catch, rubber latch, and mounting hardware

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.23

103-3093

5

PLATE-BACKING

Part# 103-3093

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.76

6

ASM, Idler

Part#

Note: Not serviced separately

Not available

1-603044

7

BUSHING

Part# 1-603044

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.22

1-653331

8

SPRING-IDLER

Part# 1-653331

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.91

3256-4

9

WASHER-FLAT

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

323-11

10

SCREW-HH

Part# 323-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.72

3290-357

11

NUT-HHF, WHIZ

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

1-513013

12

HOUSING-FLANGE

Part# 1-513013

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.46

1-653346

13

BEARING

Part# 1-653346

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $48.47

103-0455

14

IMPELLER

Part# 103-0455

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $295.50

103-0460

15

SPACER

Part# 103-0460

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.30

103-0456

16

SHEAVE

Part# 103-0456

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $38.08

3230-18

17

SCREW-CARR

Part# 3230-18

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.10

32128-20

18

NUT-HF

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

1-513208

19

WASHER-SPRING

Part# 1-513208

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.88

3219-6

20

NUT-HEX

Part# 3219-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.09

3257-32

21

KEY-WOODRUFF

Part# 3257-32

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.98

1-513435

22

WASHER-SPRING

Part# 1-513435

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.46

3220-5

23

NUT-JAM

Part# 3220-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

103-0458-01

24

BUMPER

Part# 103-0458-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $81.95

103-0461-03

25

PLATE-BACKING, BLOWER

Part# 103-0461-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.39

321-3

26

SCREW-HH

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

32128-33

27

NUT-HF

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

3229-11

28

SCREW-CARR

Part# 3229-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.94

3229-1

29

BOLT-CARR

Part# 3229-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.71

1-803075

30

SCREW-HEAD, TRUSS

Part# 1-803075

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.83

3290-148

31

NUT-HF

Part# 3290-148

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.57

1-803076

32

SCREW

Part# 1-803076

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.95

103-3583

33

ASM, BEARING COVER

Part# 103-3583

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $68.07

103-3584-03

33

COVER, BEARING

Part# 103-3584-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $24.31

109-5890

33:2

DECAL-WARNING, BLOWER

Part# 109-5890

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $48.47

3256-3

34

WASHER-FLAT

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

3296-47

35

NUT-LOCK, NI

Part# 3296-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.29

323-8

36

SCREW-HH

Part# 323-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.52

1-353054

37

LATCH-CATCHER, GRASS

Part# 1-353054

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.00

3296-39

38

NUT-LOCK, NI

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

1-303334

39

WASHER-SPRING

Part# 1-303334

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.33

3217-6

40

NUT-HEX

Part# 3217-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.05

103-0126

41

BUSHING, LOCATOR

Part# 103-0126

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.61

3274-18

42

SCREW-HSH

Part# 3274-18

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.67

321-4

45

SCREW-HH

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

3296-42

46

NUT-LOCK, NI

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.36

126-4659

48

DECAL-WARNING

Part# 126-4659

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.58

126-4853

52

Decal-Blower-Impeller Hazard

Part# 126-4853

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.53

1-523157

53

WASHER-SPACER

Part# 1-523157

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01
