126-8680 - Exmark Ultra Vac Bagger for Lazer Z-Series, Diesel (SN: 413950474 - 416150474) (Rev A) (2023) 126-8680 Assembly Parts Diagram

Ultra Vac Bagger for Lazer Z-Series, Diesel

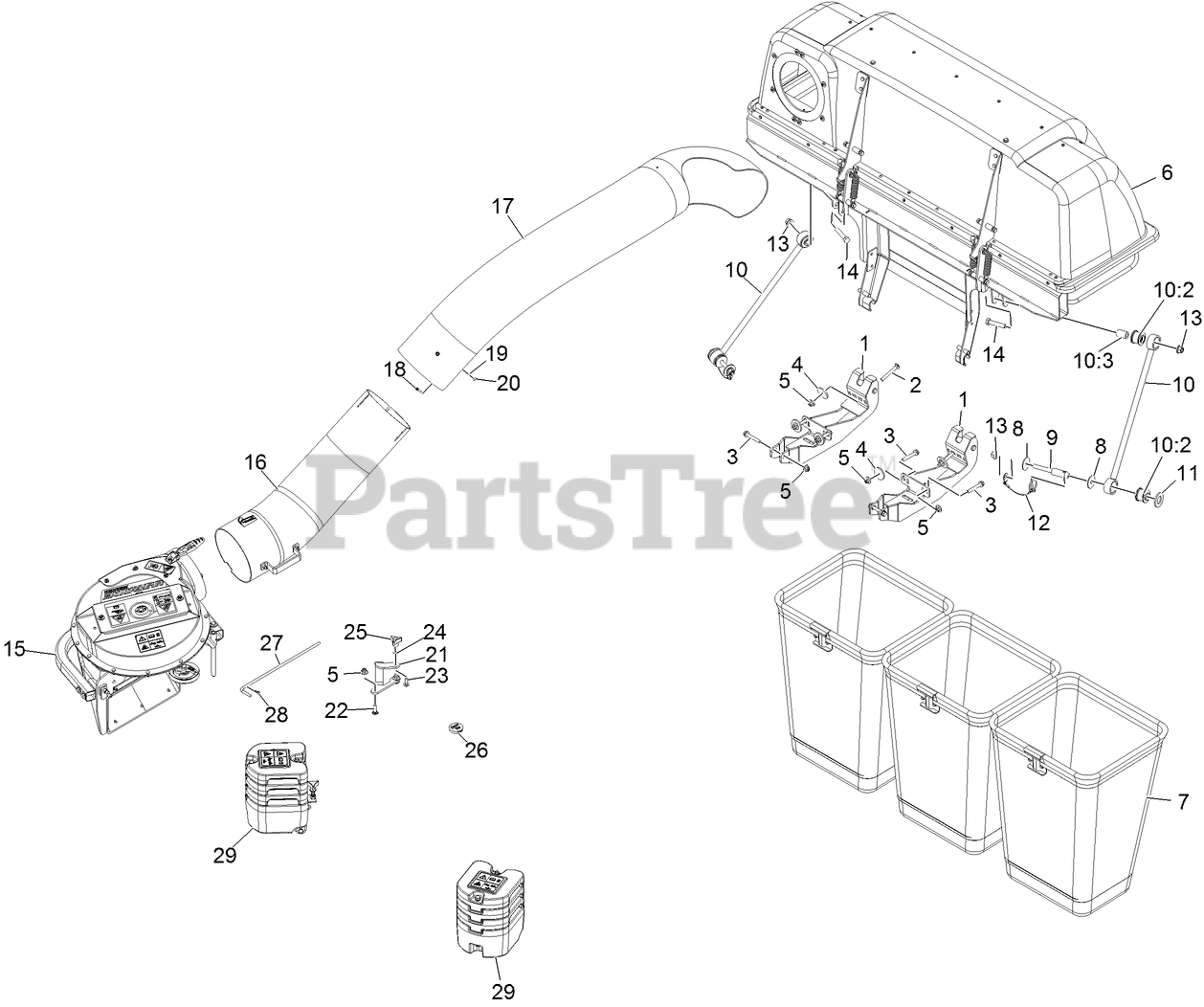

126-8680 Assembly Parts Diagram

  • Title

1

Exmark 135-2023-03

MOUNT-BAGGER, LOWER

$696.99

$

Usually ships in 3-6 days

0

2

Exmark 3231-10

SCREW-CARR

$4.99

$

In Stock, only 4 left!

0

3

Exmark 3234-39

Screw-HHF

$3.49

$

Usually ships in 3-6 days

0

4

Exmark 115-1485

Washer-Plain

$4.99

$

Usually ships in 3-6 days

0

5

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

6

ASM, Hood Duv3-Bag

Note: Not serviced separately

$

$

Not available

7

Exmark 116-0754

BAG AND FRAME ASM

$208.99

$

In Stock, only 2 left!

0

8

Exmark 86-1990

WASHER-THRUST

$4.49

$

In Stock, Qty 18

0

9

Exmark 126-9293

PIN-BAGGER BRKT

$36.99

$

Usually ships in 3-6 days

0

10

Exmark 126-9557

SUPPORT ROD ASM

$85.99

$

Usually ships in 3-6 days

0

10:2

Exmark 135-2466

BUSHING-RUBBER

$8.49

$

Usually ships in 3-6 days

0

10:3

Exmark 109-5010

SPACER

$14.99

$

In Stock, Qty 20+

0

11

Exmark 3256-62

Washer-Flat

$0.99

$

Usually ships in 3-6 days

0

12

Exmark 126-9292

PIN-MOUNT, BAGGER

$20.99

$

Usually ships in 3-6 days

0

13

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 15

0

14

Exmark 325-10

SCREW-HH

$5.99

$

In Stock, only 2 left!

0

15

Exmark 109-9836

ASM, BLOWER LARGE - SVC ONLY

$2320.99

$

Usually ships in 3-6 days

0

16

Exmark 109-1973

LOWER TUBE ASM

$352.99

$

Usually ships in 3-6 days

0

17

Exmark 126-8679

TUBE-UPPER

$352.99

$

Usually ships in 3-6 days

0

18

Exmark 32105-13

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

19

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

21

Exmark 109-9463-03

BRACKET,BELT COVER

$53.99

$

Usually ships in 3-6 days

0

22

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 6

0

23

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, only 1 left!

0

24

Exmark 109-5667

RING-RETAINING, BOLT

$7.49

$

In Stock, only 2 left!

0

25

Exmark 1-323385

KNOB-3 PRONG

$5.99

$

In Stock, Qty 20+

0

26

Exmark 103-1279

PLUG, BLACK NYLON 1.75

$13.99

$

Usually ships in 3-6 days

0

27

Exmark 109-3458

PIN,CHUTE PIVOT

$19.99

$

Usually ships in 3-6 days

0

28

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

29

Caster Weight ASM

Note: Not serviced separately

$

$

Not available
