126-9360 - Toro CE Kit for 122cm E-Z Vac Bagger for Titan HD Mower CE COMPLIANCE ASSEMBLY NO. 126-9360 Parts Diagram

CE Kit for 122cm E-Z Vac Bagger for Titan HD Mower

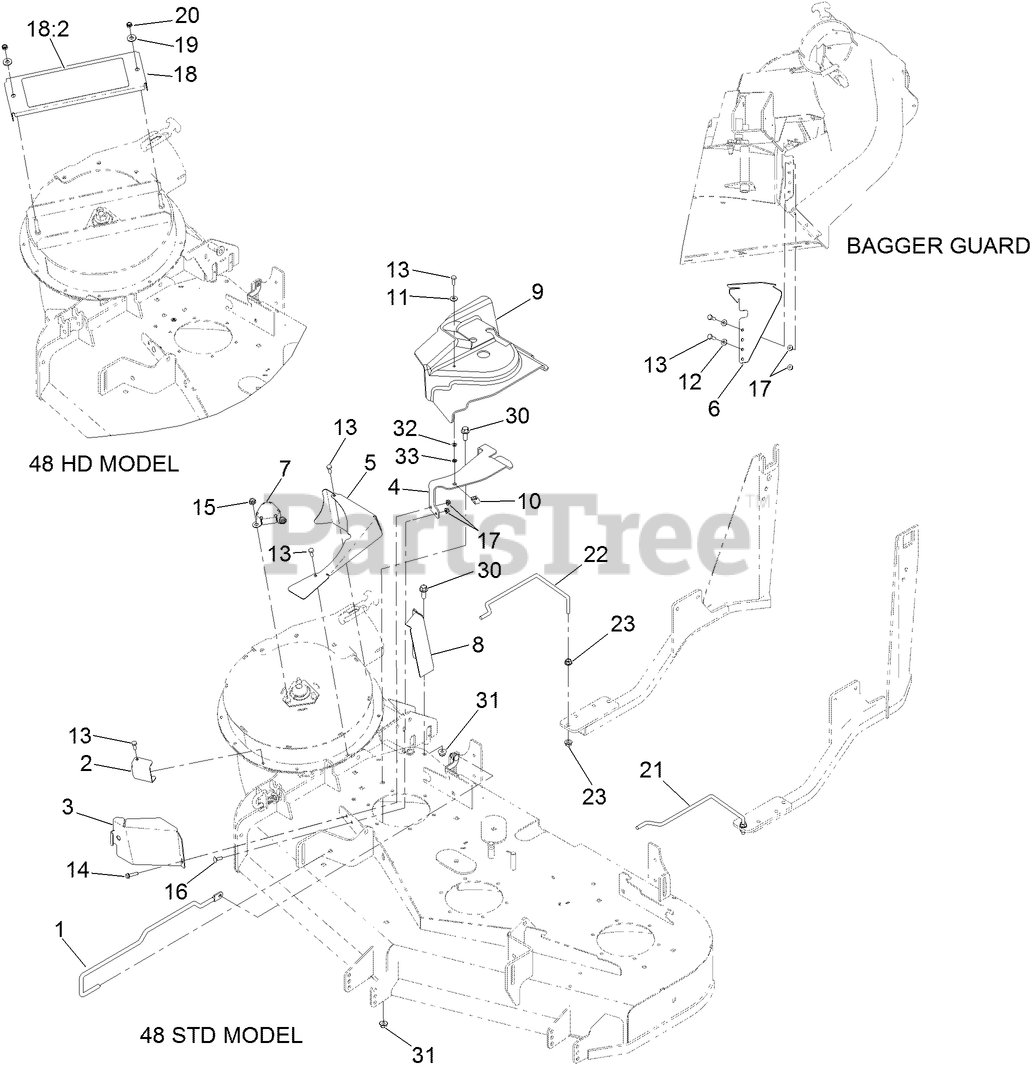

CE COMPLIANCE ASSEMBLY NO. 126-9360 Parts Diagram

  • Title

1

Toro 126-9160

ROD-SUPPORT, LOWER

$101.99

$

Usually ships in 3-6 days

0

2

Toro 126-9161-03

GUARD-FRONT, LEFT

$50.99

$

Usually ships in 3-6 days

0

3

Toro 121-7573-03

GUARD-BAGGER

$

$

Currently unavailable

4

Toro 121-7570-03

BRACKET-COVER

$

$

Currently unavailable

5

Toro 121-7571-03

GUARD-TOP

$

$

Currently unavailable

6

Toro 121-7572-03

GUARD-BAGGER

$

$

Currently unavailable

7

Toro 121-7575-03

COVER-NUT

$

$

Currently unavailable

8

Toro 126-9162-03

GUARD-REAR

$39.99

$

Usually ships in 3-6 days

0

9

Toro 117-8642

COVER-BELT

$239.99

$

Usually ships in 3-6 days

0

10

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

11

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 120-4654

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

15

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

17

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Toro 117-0924

COVER-BEARING

$

$

Currently unavailable

18:2

Toro 117-0923

DECAL-DANGER

$26.99

$

Usually ships in 3-6 days

0

19

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

21

Toro 126-9358

ROD-SUPPORT, REAR (LH)

$73.99

$

Usually ships in 3-6 days

0

22

Toro 126-9359

ROD-SUPPORT, REAR (RH)

$73.99

$

Usually ships in 3-6 days

0

23

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

30

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 10

0

31

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

32

Toro 3256-60

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

33

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0
