127-0301 - Toro Caster Wheel Update Kit for 74143/74145/74953 Z Master Mower CASTER WHEEL UPDATE KIT NO. 127-0301 Parts Diagram

Caster Wheel Update Kit for 74143/74145/74953 Z Master Mower

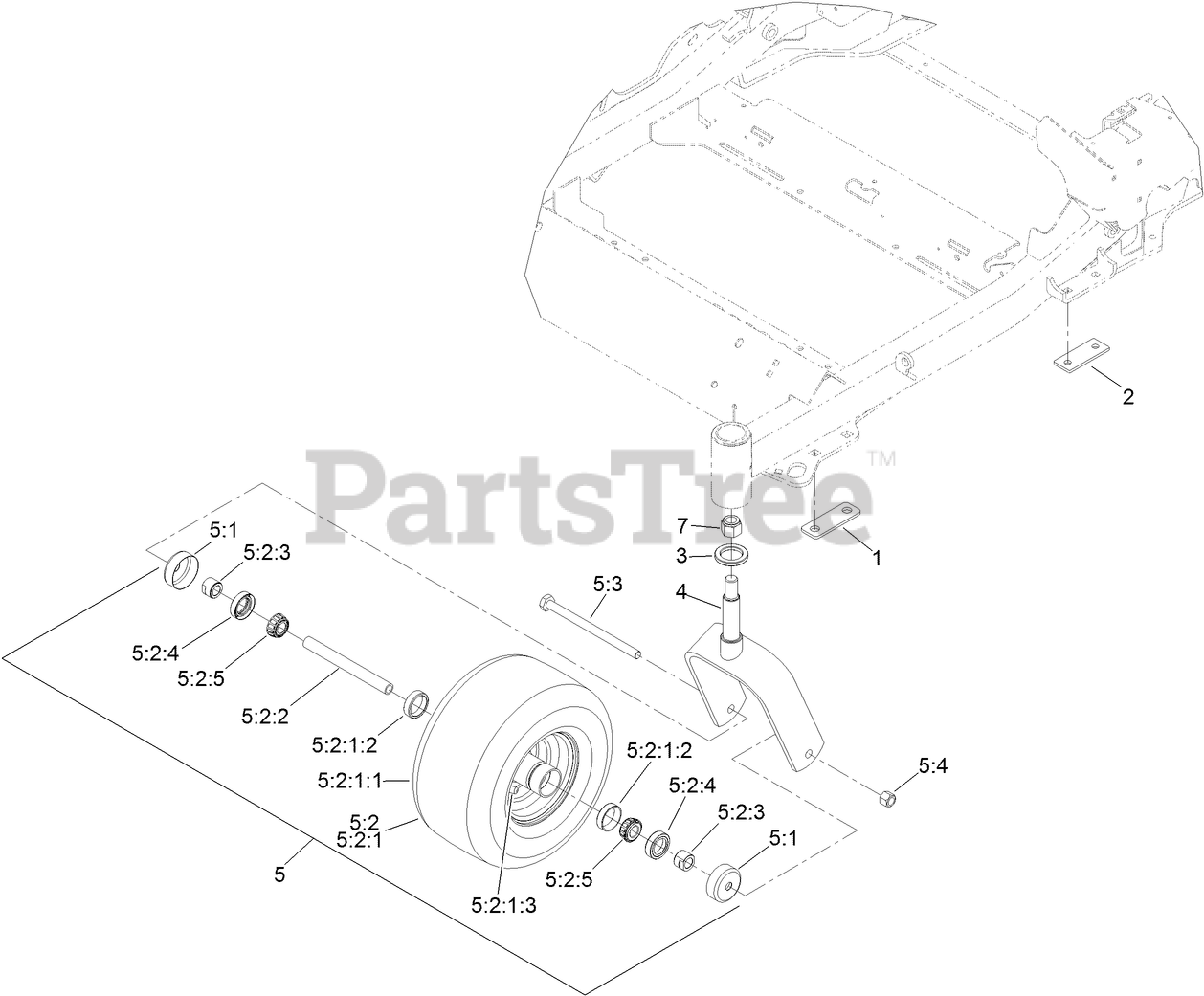

CASTER WHEEL UPDATE KIT NO. 127-0301 Parts Diagram

  • Title

1

Toro 121-7593-01

SPACER-DECKLIFT, FRONT

$

$

Not available

2

Toro 121-7594-01

SPACER-DECKLIFT, BACK

$

$

Not available

3

Toro 116-5647

SEAL-GREASE

$6.49

$

In Stock, Qty 20+

0

4

Toro 116-6707-01

CASTER
(Superseded to 116-8888)

$202.99

$

In Stock, Qty 6

0

5

Toro 117-0361

CASTER WHEEL ASM

$246.99

$

In Stock, only 2 left!

0

5:1

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 6

0

5:2

WHEEL ASM

Note: Not serviced separately

$

$

Not available

5:2:1

WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

5:2:1:1

Toro 1-523009

TIRE

$120.99

$

Usually ships in 3-6 days

0

5:2:1:2

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 6

0

5:2:1:3

Toro 5108

VALVE

$7.99

$

In Stock, Qty 6

0

5:2:2

Toro 103-5156

Axle-Caster
(Superseded to 126-5361)

$20.99

$

In Stock, Qty 9

0

5:2:3

Toro 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 6

0

5:2:4

Toro 103-0063

SEAL-CASTER

$9.49

$

In Stock, only 3 left!

0

5:2:5

Toro 1-633585

BEARING-CONE, TAPER

$23.99

$

In Stock, Qty 17

0

5:3

Toro 325-39

Screw-HH

$19.99

$

In Stock, Qty 9

0

5:4

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 3296-51

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0
