127-0302 - Toro Caster Wheel Update Kit for 74141 Z Master Mower CASTER WHEEL UPDATE KIT NO. 127-0302 Parts Diagram

Caster Wheel Update Kit for 74141 Z Master Mower

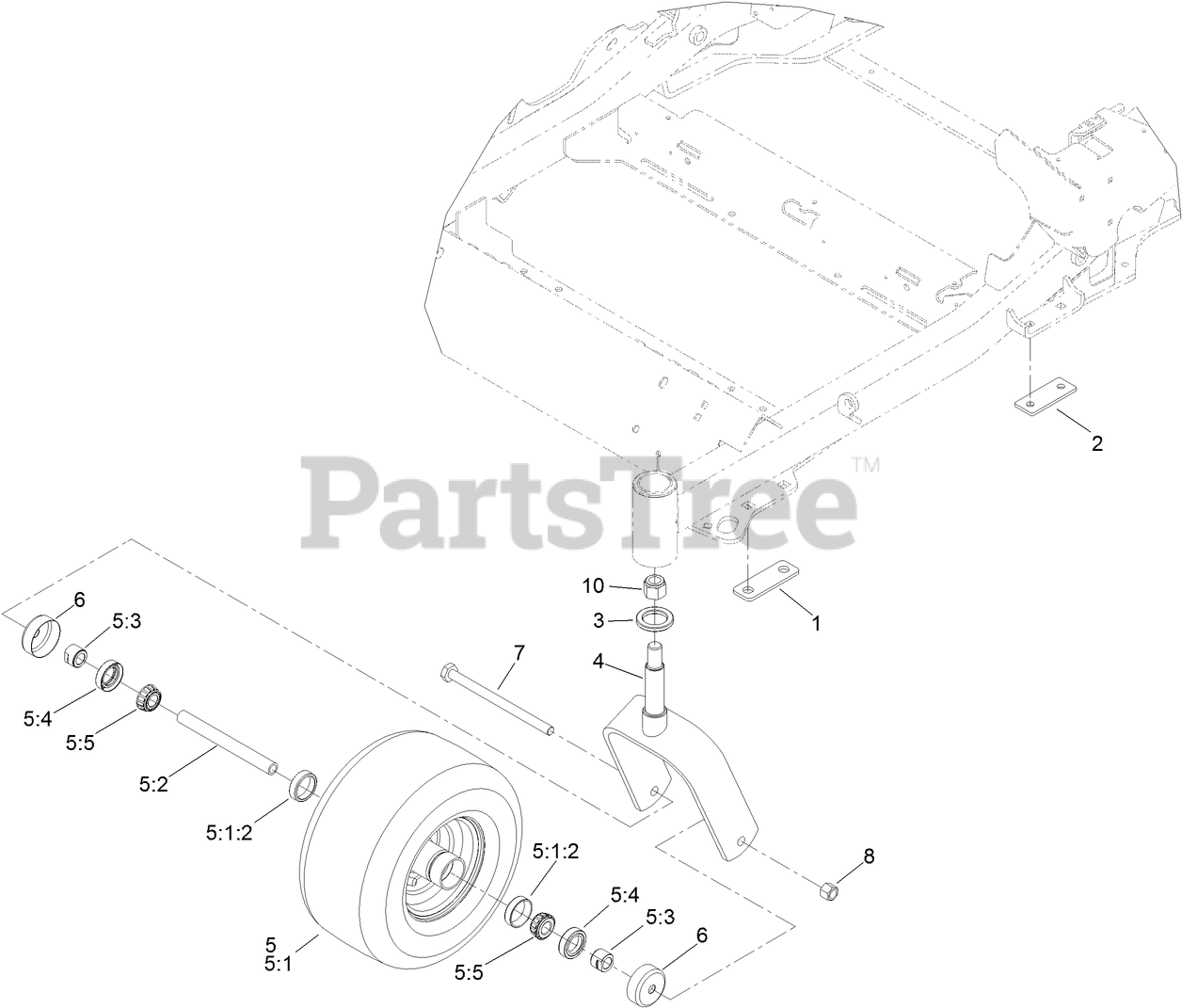

CASTER WHEEL UPDATE KIT NO. 127-0302 Parts Diagram

  • Title

1

Toro 121-7593-01

SPACER-DECKLIFT, FRONT

$

$

Not available

2

Toro 121-7594-01

SPACER-DECKLIFT, BACK

$

$

Not available

3

Toro 116-5647

SEAL-GREASE

$5.49

$

In Stock, Qty 20+

0

4

Toro 116-6701-01

FORK-CASTER

$123.99

$

In Stock, only 1 left!

0

5

Toro 103-5362

WHEEL AND BEARING ASM

$

$

Currently unavailable

5:1

WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

5:1:2

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 14

0

5:2

Toro 103-3155

AXLE-CASTER
(Superseded to 126-5360)

$17.99

$

In Stock, only 1 left!

0

5:3

Toro 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 20+

0

5:4

Toro 103-0063

SEAL-CASTER

$9.49

$

In Stock, Qty 20+

0

5:5

Toro 1-633585

BEARING-CONE, TAPER

$22.99

$

In Stock, Qty 20+

0

6

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

7

Toro 325-36

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 3296-51

NUT-LOCK, NI

$6.99

$

In Stock, Qty 20+

0
