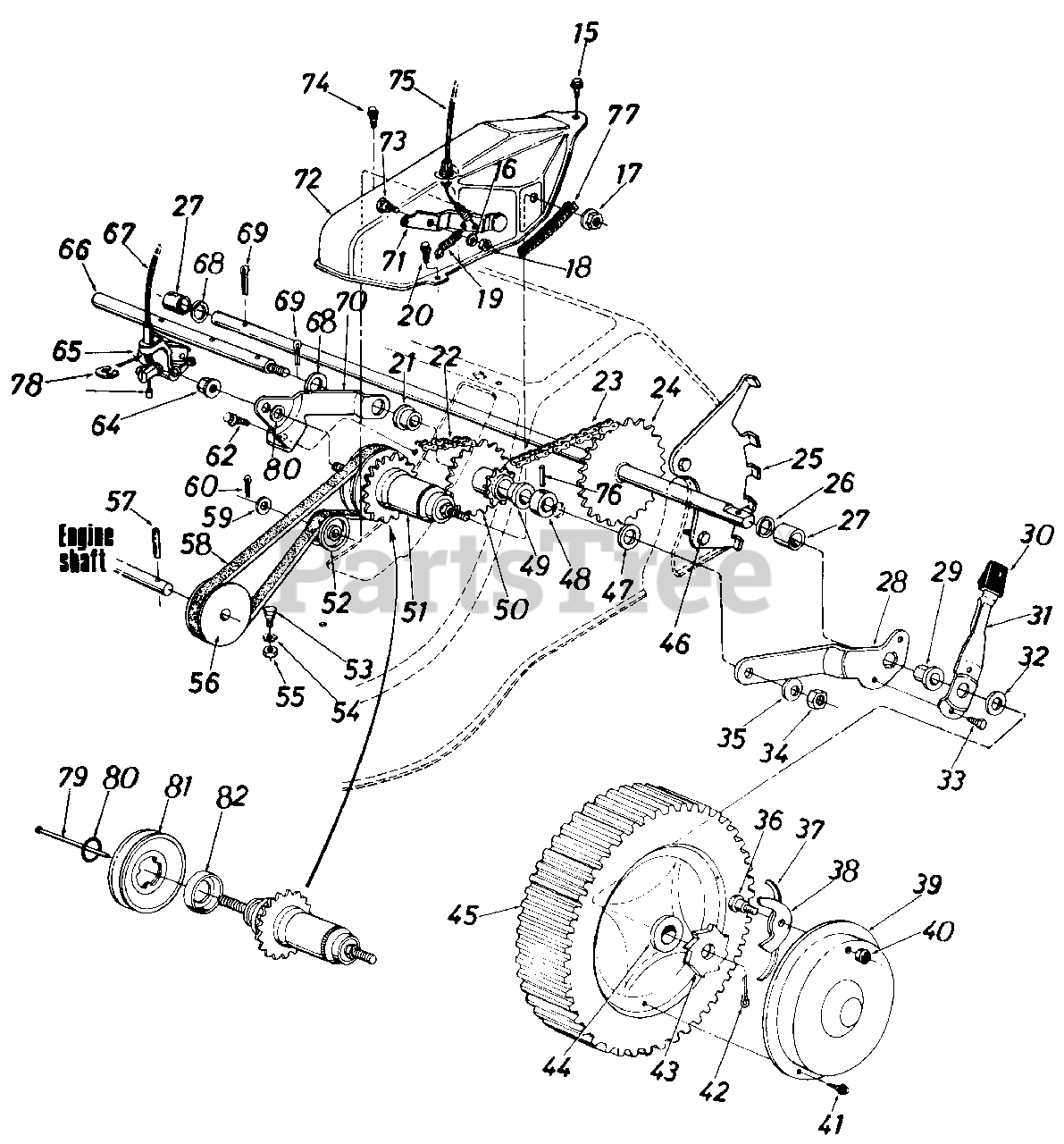

127-367-190 - White Outdoor Lawn Boss 22" Walk-Behind Mower (1987) Drive Assembly Parts Diagram

Lawn Boss 22" Walk-Behind Mower

Drive Assembly Parts Diagram

  • Title

15

White Outdoor 710-0456

Hex Drilling Scr. #10 x .50" Lg.

$

$

Not available

16

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

17

White Outdoor 712-0340

Hex Nut 3/8-24 Thd.

Note: (Special)

$

$

Not available

18

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

19

White Outdoor 732-0357

Extension Spring .33" O.D. x 1.12" Lg.
(Superseded to 932-0357A)

$4.99

$

In Stock, Qty 5

0

20

White Outdoor 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 741-0248

Flg. Brg. .506" I.D. Plastic

$9.99

$

Usually ships in 3-6 days

0

22

White Outdoor 713-0361

#48 Chain 1/2" Pitch x 38 Links (Endless)
(Superseded to 913-0361)

$

$

Not available

23

White Outdoor 713-0256

#48 Chain Pitch x 32 Links (Endless)
(Superseded to 913-0144)

$

$

Not available

24

White Outdoor 13414

Rear Shaft Ass'y. 20.75"

$

$

Not available

25

White Outdoor 16097

Index Plate Rear L.H.

$

$

Not available

16098

Index Plate Rear R.H.

Note: (Not Shown)

$

$

Not available

26

White Outdoor 736-0326

Fl-Wash. .510" I.D. x 1.0"

$4.99

$

In Stock, Qty 12

0

27

White Outdoor 750-0190

Spacer .740" I.D. x .83" O.D.

$

$

Not available

28

White Outdoor 16099

Pivot Brkt. L.H.

$

$

Not available

White Outdoor 16100

Pivot Brkt. R.H.

Note: (Not Shown)

$

$

Not available

29

White Outdoor 741-0324

Hex Flange Brg. .506" I .D. Plastic
(Superseded to 741-0324A)

$8.49

$

In Stock, only 3 left!

0

30

White Outdoor 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$14.99

$

In Stock, only 1 left!

0

31

White Outdoor 732-0467

Spring Lever

$

$

Not available

32

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .930"

$4.49

$

Usually ships in 3-6 days

0

33

White Outdoor 710-0352

Hex B-Tap Scr. 1/4 x .38"

$4.99

$

Usually ships in 3-6 days

0

34

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 14

0

35

White Outdoor 736-0105

Bell-Wash. .400" I.D. x .88"

$4.99

$

In Stock, Qty 20+

0

36

White Outdoor 738-0137

Shld. Bolt .342" Dia. x .268

$

$

Not available

37

White Outdoor 10622

Spring-Nylon
(Superseded to 10622BP)

$5.49

$

In Stock, Qty 20+

0

38

White Outdoor 748-0188

Pawl
(Superseded to 948-0188B)

$11.99

$

Usually ships in 3-6 days

0

39

White Outdoor 10647

Hub Cap

$

$

Not available

40

White Outdoor 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, only 4 left!

0

41

White Outdoor 710-0748

Pan Hd. Tap Scr. #12 x .50" Lg.

$

$

Not available

42

White Outdoor 714-0115

Cotter Pin 118" Dia. x 1.0"

$4.49

$

In Stock, only 2 left!

0

43

White Outdoor 748-0187

Ratchet Wheel 1.62" O.D.

$

$

Not available

44

White Outdoor 741-0180

Fl-Ball Brg. 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

45

White Outdoor 734-1026

Wheel Ass'y. Comp. 8 x 1.75

$

$

Not available

46

White Outdoor 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

47

White Outdoor 736-0219

Bell-Wash. .400" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

48

White Outdoor 750-0387

Spacer .505" I.D. x .88" O.D.

$

$

Not available

49

White Outdoor 741-0248

Flg. Brg. .506" I.D. Plastic

$9.99

$

Usually ships in 3-6 days

0

50

White Outdoor 713-0359

9 and 21 Tooth Sprocket Ass'y.

$

$

Not available

51

White Outdoor 717-0825

Shimano 3-Sp. Hub w/18 Tooth Sprocket

$

$

Not available

52

White Outdoor 756-0360

Fl-ldler Plastic 1.62" Dia.

$

$

Not available

53

White Outdoor 738-0140

Shld. Bolt .437" Dia. x .180

$5.99

$

In Stock, Qty 10

0

54

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

55

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

56

White Outdoor 756-0462

1/7" "V"-Engine Pulley .50" I.D. x 2.80" ) D.

$

$

Not available

57

White Outdoor 715-0144

Spring Pin Splr 3/16" Dia. x 1.50" Lg

$

$

Not available

58

White Outdoor 754-0292

"V"-Belt 1/2" X 26.0" Lg.

$

$

Not available

59

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .930"

$4.49

$

Usually ships in 3-6 days

0

60

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x l.O"

$4.49

$

In Stock, only 2 left!

0

62

White Outdoor 710-0726

Hex Wash. Hd. Tap Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

White Outdoor 736-0226

Fl-Wash. .469" I.D. x .88"
(Superseded to 936-0226)

$4.49

$

In Stock, only 2 left!

0

64

White Outdoor 712-0340

Hex Nut 3/8-24 Thd.

Note: (Special)

$

$

Not available

65

717-0824

Shimano 3-Sp. Shift Bell Crank

$

$

Not available

66

White Outdoor 738-0471

Pulley Shaft 10" Lg.

$

$

Not available

67

White Outdoor 717-0823

Shimano 3-Sp. Solid Shift Cable

$

$

Not available

68

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .930"

$4.49

$

Usually ships in 3-6 days

0

69

White Outdoor 714-0111

Cotter Pin 3/32" Dia. x l.O"

$5.49

$

In Stock, Qty 20+

0

70

16304

3-Sp. Hub Bracket

$

$

Not available

71

White Outdoor 13415

Idler Bracket Ass'y.

$

$

Not available

72

16305

3-Sp. Belt Cover

$

$

Not available

73

White Outdoor 738-0255

Shld. Bolt .375" Dia. x .181
(Superseded to 938-0255)

$5.49

$

In Stock, only 4 left!

0

74

White Outdoor 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.99

$

In Stock, Qty 20+

0

75

White Outdoor 746-0466

S.P. Cable-53" Lg.-Blue
(Superseded to 946-0466)

$

$

Not available

76

White Outdoor 715-0120

Spring Pin Spir. 3/16" Dia. x 1.0" Lg.

$11.99

$

In Stock, Qty 5

0

77

White Outdoor 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0

78

717-0832

Snap Ring

Note: (Special)

$

$

Not available

79

White Outdoor 717-0830

Shifting Pin

Note: (Special)

$

$

Not available

80

White Outdoor 717-0826

Pulley Snap Ring

Note: (Special)

$

$

Not available

81

756-0461

3/2" V-Pulley 1.375" I.D. x 3.25" O.D.

$

$

Not available

82

717-0831

Shimano 3-Sp. Dust Cover

$

$

Not available
