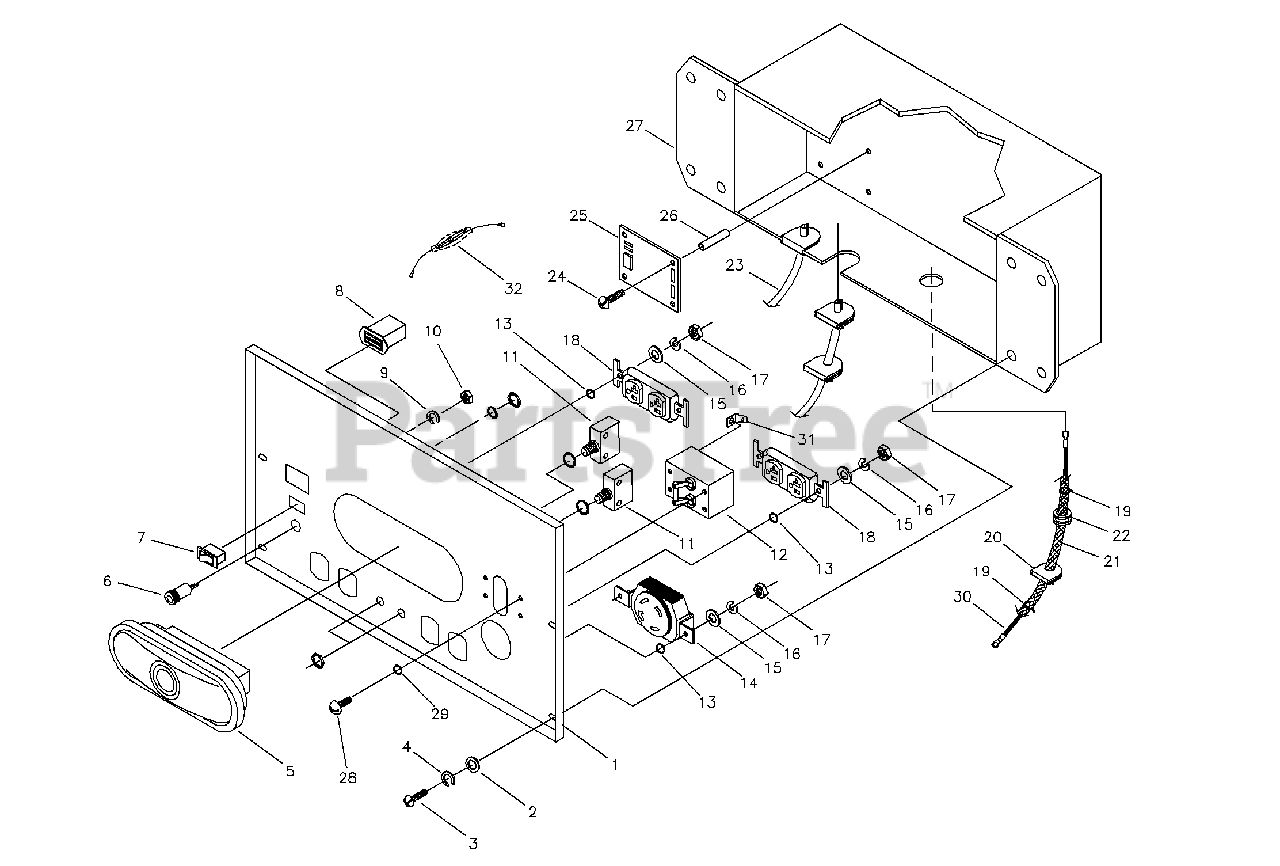

1277-0 - Generac 7,200 Watt Portable Generator Control Panel Parts Diagram

7,200 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton BB4689

PANEL, Control

$

$

Currently unavailable

2

Briggs & Stratton 23897

FLAT WASHER, M5
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 49226

LOCK WASHER, M5
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 91526

PPHMS, M5 - 0.8 x 12

$

$

Not available

5

Briggs & Stratton B4695

LIGHT, 12V Backup

$

$

Currently unavailable

6

Briggs & Stratton B4694

JACK, Coaxial DC Power
(Superseded to 312004GS)

$10.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 20984

SWITCH, Rocker (On - Off)

$

$

Not available

8

Briggs & Stratton 77604

METER, Hobbs Hour
(Superseded to 77604GS)

$112.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 43182

LOCK WASHER, M3
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 51714

NUT, M3 - 0.5 Hex
(Superseded to 51714GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 75207

CIRCUIT BREAKER, 20A Manual Reset
(Superseded to 209872GS)

$9.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 82081

BREAKER, 30A Manual 2-Pole
(Superseded to 82081GS)

$

$

Not available

13

Briggs & Stratton 23365

WASHER, #8 Shakeproof
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 43437

OUTLET, 120/240V - 30A

$

$

Not available

15

Briggs & Stratton 43180

FLAT WASHER, M4
(Superseded to 5043180B)

$54.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22264

LOCK WASHER, M4

$

$

Not available

17

Briggs & Stratton 51715

NUT, M4 - 0.7 Hex
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 68759

OUTLET, 120V - 20A Duplex
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

19

Briggs & Stratton 28739A

WRAP, 4" Black Tie
(Superseded to 28739AGS)

$1.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 84135

GROMMET, Rubber
(Superseded to 84135GS)

$3.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 84409

SLEEVING, Flexo HW 1/2 x 7"

$

$

Currently unavailable

22

Briggs & Stratton B1127

GROMMET, Rubber
(Superseded to B1127GS)

$4.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84335

ASSEMBLY,Wire Harness
(Superseded to 84335GS)

$39.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 64526

SCREW, #6-32 x 3/8" Self Tapping

$

$

Not available

25

Briggs & Stratton 83970

BOARD, System Control
(Superseded to 83970GS)

$

$

Not available

26

Briggs & Stratton 64525

STAND OFF, 3/4" Hex

$

$

Currently unavailable

27

Briggs & Stratton B92069

BOX, Control Panel

$

$

Currently unavailable

28

Briggs & Stratton 36900

PPHMS, #6-32 X 1/4"

$

$

Currently unavailable

29

Briggs & Stratton 23364

WASHER, #6 Shakeproof
(Superseded to 5023364)

$225.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton B4900

ASSEMBLY,Wire Harness
(Superseded to B4900GS)

$30.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 74138

ADAPTER, Male Disconnect
(Superseded to 7074138YP)

$54.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton B5112

ASSEMBLY, Diode
(Superseded to B5112GS)

$95.99

$

Usually ships in 2-12 days

0
