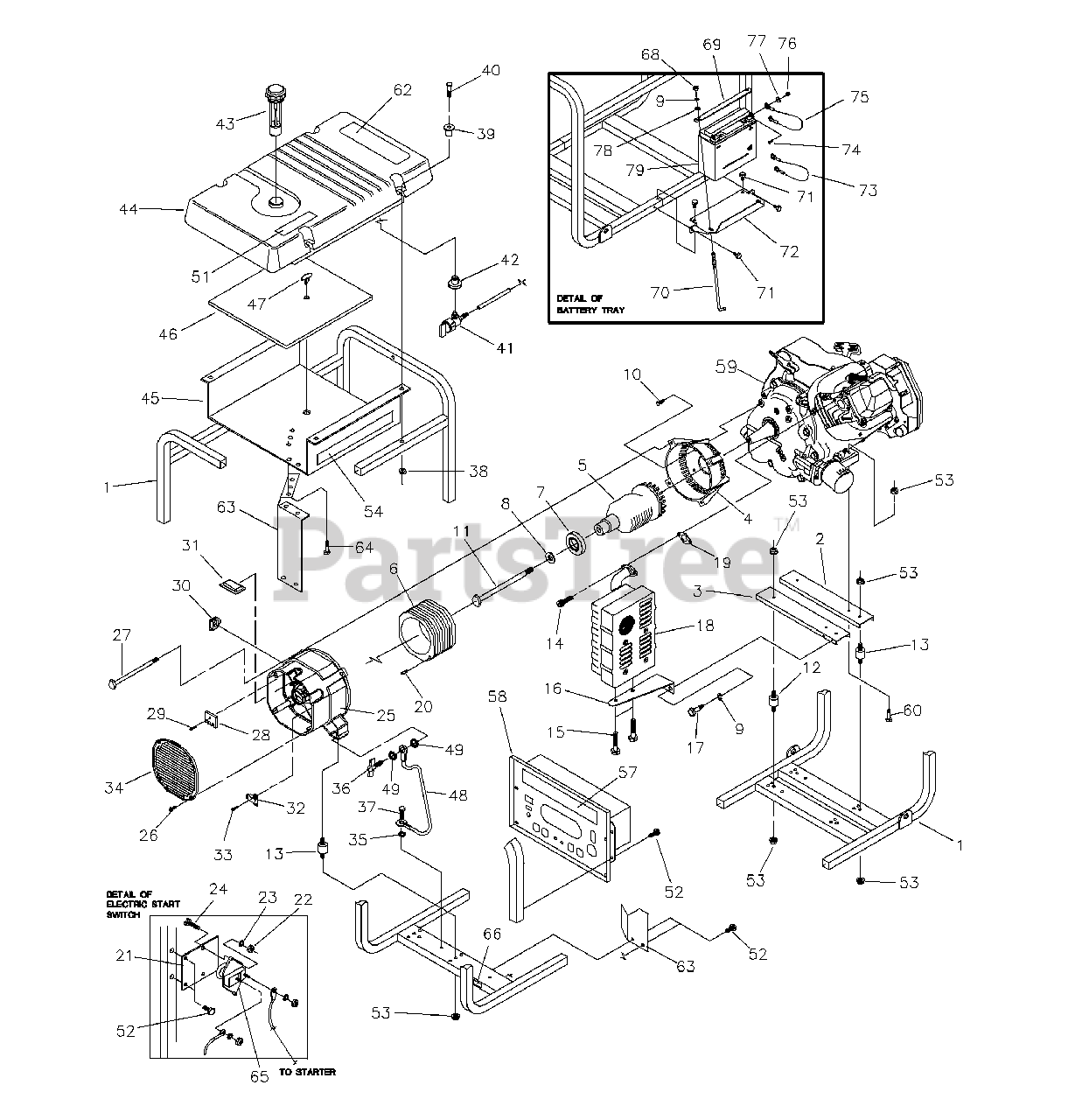

1277-0 - Generac 7,200 Watt Portable Generator Main Unit Parts Diagram

7,200 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton HB4545

CRADLE
(Superseded to HB4545GS)

$104.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton H92531

SUPPORT, Engine
(Superseded to H92531GS)

$17.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton H92731

SUPPORT, Engine & Muffler
(Superseded to H92731GS)

$28.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 92247

HOUSING, Engine Adapter
(Superseded to 92247GS)

$122.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B1342G

ASSEMBLY, Rotor
(Superseded to B1342GGS)

Note: (Inclds Item 7)

$521.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B1897G

ASSEMBLY, Stator
(Superseded to B1897AGS)

$969.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796

WASHER, Grommet Retainer
(Superseded to 96796GS)

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22129

LOCKWASHER, M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 86307

HHMS, 5/16-24 x 3/4 SEMS
(Superseded to 86307GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 47481

HHCS, 5/16-24 x 10.625
(Superseded to 47481GS)

$12.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 92609

MOUNT,Vibration
(Superseded to 92609GS)

$38.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 82857

MOUNT,Vibration
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 40976

SCREW, M8 - 1.25 x 20

$

$

Not available

15

Briggs & Stratton 66476

CAPSCREW, M6 - 1.0 x 12mm
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 92532

BRACKET, Muffler
(Superseded to 92532GS)

$22.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 22142

SCREW, 5/16 - 18 x 3/4
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 91153

MUFFLER
(Superseded to A7433GS)

$

$

Not available

19

Briggs & Stratton 90239

GASKET, Muffler
(Superseded to 90239GS)

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 81917

PIN, Roll 4mm x 10
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 78289

BRACKET, Starter Switch
(Superseded to 78289GS)

$7.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22127

NUT, 1/4 - 20 Hex

$

$

Not available

23

Briggs & Stratton 22097

LOCKWASHER, M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 22287

SCREW, 1/4 - 20 x 3/4
(Superseded to 22287GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66825C

CARRIER, Rear Bearing
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908

TAPTITE, M5-0.8 x 10
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 66449L

BOLT, Stator M6-1 x 165mm
(Superseded to 66449LGS)

$30.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

29

Briggs & Stratton 66849A

TAPTITE, M5-0.8 x 20
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 67022

GROMMET, Rubber
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 84132

ASSEMBLY, Power Regulator
(Superseded to 84132GS)

$126.99

$

In Stock, only 3 left!

0

32

Briggs & Stratton 66386

ASSEMBLY, Brush Holder
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

33

Briggs & Stratton 66849

TAPTITE, M5-0.8 x 16
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton B4871

COVER, Bearing Carrier
(Superseded to B4871GS)

$9.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 22769

WASHER, Shakeproof Int. #10
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 86494

SCREW, M6-1.0 x 16 Wing
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 86292

HHCS, - #10 Self Driller
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

38

Briggs & Stratton 77395

NUT, Flange Lock - M6
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 83465

GROMMET,Tank
(Superseded to 83465GS)

$3.99

$

In Stock, Qty 20+

0

40

Briggs & Stratton 78831B

HHMS, M6-1.0 x 60, SEMS
(Superseded to 78831BGS)

$

$

Not available

41

Briggs & Stratton 80270

VALVE,Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 78299

BUSHING, Plastic Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton B4363

CAP, Fuel Gauge
(Superseded to B4363GS)

$41.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton B1998

TANK, Fuel Assy.
(Superseded to 193500GS)

Note: (Includes Items 41 & 42)

$

$

Not available

45

Briggs & Stratton BB4675

SHIELD, Heat
(Superseded to BB4675GS)

$49.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 92665

INSULATION, #2-1/4" Thick
(Superseded to 92665GS)

$16.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 85000

CLIP, Insulation
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

48

14353621

WIRE, Ground

$

$

Not available

49

Briggs & Stratton 26850

LW, EXT, Shakeproof M6

$

$

Not available

51

Briggs & Stratton 92982

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton B2153

SELF DRILLER, 12 - 14 x 7/8"
(Superseded to B2153GS)

$4.49

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 189160

NUT, 5/16 - 18 Serrated Flange
(Superseded to 189160GS)

$2.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton B5051

DECAL, Heat Shield

$

$

Currently unavailable

57

Briggs & Stratton B4553

DECAL, Control Panel

$

$

Currently unavailable

58

Briggs & Stratton B4690

ASSEMBLY, Control Panel
(Superseded to B4690GS)

$533.99

$

Usually ships in 2-12 days

0

59

NSP

ENGINE

$

$

Not available

60

Briggs & Stratton 22531

HHCS, 5/16-18 x 1-3/4"
(Superseded to 5022531)

$19.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 93826

DECAL, Start Instructions
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton BB4674

SHIELD, Heat
(Superseded to BB4674GS)

$23.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 56893

CRIMPTITE, 10-24 x 1/2
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

65

Briggs & Stratton 77282

SWITCH, Starter

$

$

Not available

66

Briggs & Stratton B4986

DECAL, Ground
(Superseded to B4986GS)

$2.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 45771

NUT, M8 Hex

$

$

Not available

69

Briggs & Stratton H96925

BRACKET, Battery Tie-Down
(Superseded to H96925GS)

$10.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 96924

J-BOLT, M8
(Superseded to 96924GS)

$7.49

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 58443

CRIMPTITE, 1/4 - 20 x 5/8
(Superseded to 58443GS)

$3.49

$

Usually ships in 2-12 days

0

72

Briggs & Stratton HB4672

TRAY, Battery
(Superseded to HB4672GS)

$55.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 11353621

BATTERY CABLE, Negative
(Superseded to 11353621GS)

$25.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 52618

HHCS, M5 - 0.8 x 12
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 19953621

BATTERY CABLE, Postive
(Superseded to 19953621GS)

$23.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 52856

NUT, M5 Hex, Flange
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 23897

WASHER, M5 Flat
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 22145

WASHER, M8 Flat

$

$

Not available

79

Briggs & Stratton B4489

BATTERY
(Superseded to 193043GS)

$137.99

$

In Stock, only 4 left!

0

Briggs & Stratton 72347

PLUG, Spark
(Superseded to 491055S)

Note: Not Illustrated

$4.99

$

In Stock, Qty 20+

0

Briggs & Stratton 73111

ELEMENT, Air Cleaner
(Superseded to 73111GS)

Note: Not Illustrated

$15.99

$

In Stock, only 1 left!

0

Briggs & Stratton B4177

CHARGER, Battery 12V
(Superseded to 705927)

Note: Not Illustrated

$38.99

$

In Stock, only 1 left!

0

Briggs & Stratton B4678

MANUAL, Generator Owner's
(Superseded to B4678GS)

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton A8927

MANUAL, Engine Owner's
(Superseded to A8927GS)

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 84882

WRENCH, Spark Plug
(Superseded to 84882GS)

Note: Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061

OIL, 28 oz.
(Superseded to BB3061GS)

Note: Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton ~NSP

FLASHLIGHT

Note: Not Illustrated

$

$

Currently unavailable
