128-288B000 - MTD Walk-Behind Mower (1988) Parts01 Parts Diagram

Walk-Behind Mower

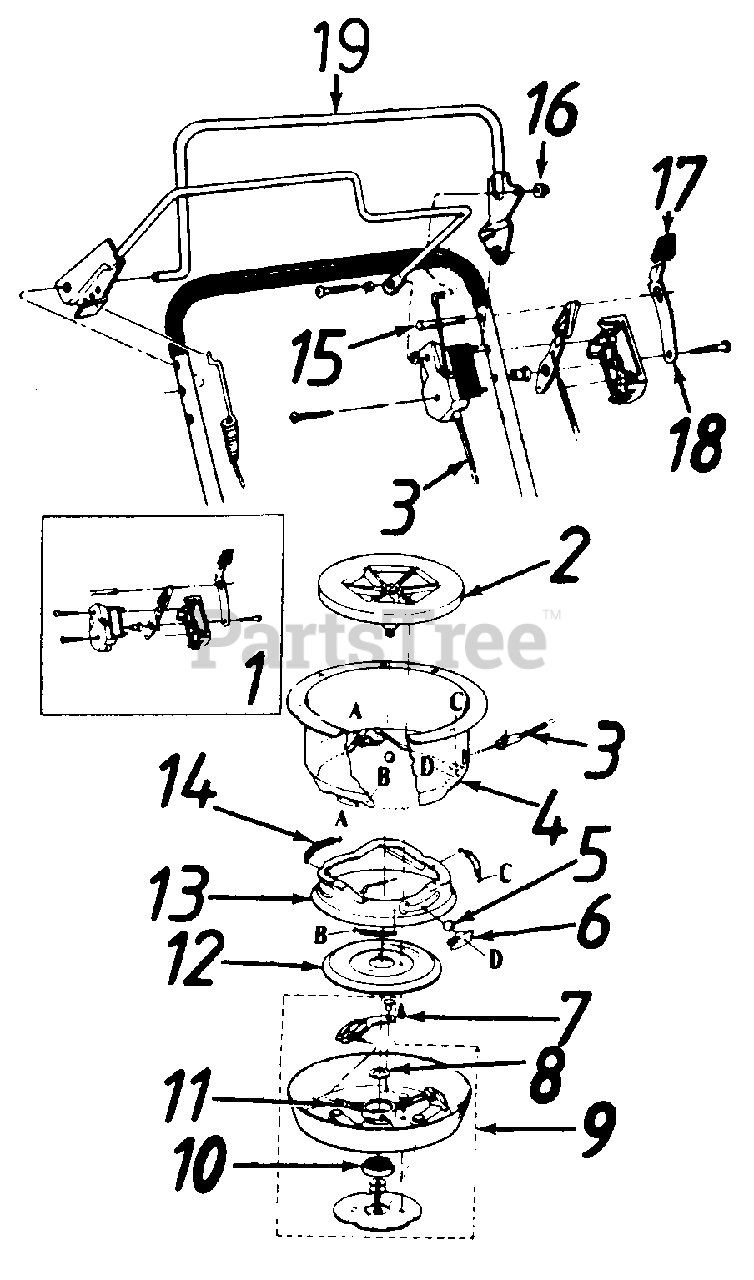

Parts01 Parts Diagram

  • Title

1

MTD 753-0431

Kit-Control Housing Comp.

$

$

Not available

2

MTD 719-0256

Fan Adapter

$

$

Not available

3

MTD 746-0402A

Clutch Cable

$

$

Not available

4

MTD 14307

Clutch Housing

$

$

Not available

5

MTD 741-0326

Steel Ball

$

$

Not available

6

MTD 731-0520

Ball Block

$

$

Not available

7

MTD 710-0875

Hex Tap Scr. 1/4-20 x .75"

$4.49

$

In Stock, only 1 left!

0

8

MTD 736-0333

Fl-Wash. .69" I.D. x 1.06"

$

$

Not available

9

MTD 14300

Clutch Blade Housing Ass'y.

$

$

Not available

10

MTD 741-0124

Ball Bearing
(Superseded to 941-0600)

$26.99

$

In Stock, Qty 20+

0

11

MTD 732-0396

Compression Spring

$

$

Not available

12

MTD 14304

Clutching Cone

$

$

Not available

13

MTD 14305

Brake Cup Cone

$

$

Currently unavailable

14

MTD 732-0397

Extension Spring

$

$

Not available

15

MTD 731-0607

Lock Pin

$

$

Not available

16

MTD 726-0245

Push Cap

$

$

Not available

17

MTD 720-0190

Knob
(Superseded to 731-13116-1)

$14.99

$

In Stock, only 1 left!

0

18

MTD 732-0401

Lockout Lever

$

$

Not available

19

MTD 16391

Control Handle

$

$

Not available
