128-474R015 - Turf Trim Walk-Behind Mower (1988) (Universal Co-Op) Parts03 Parts Diagram

Walk-Behind Mower

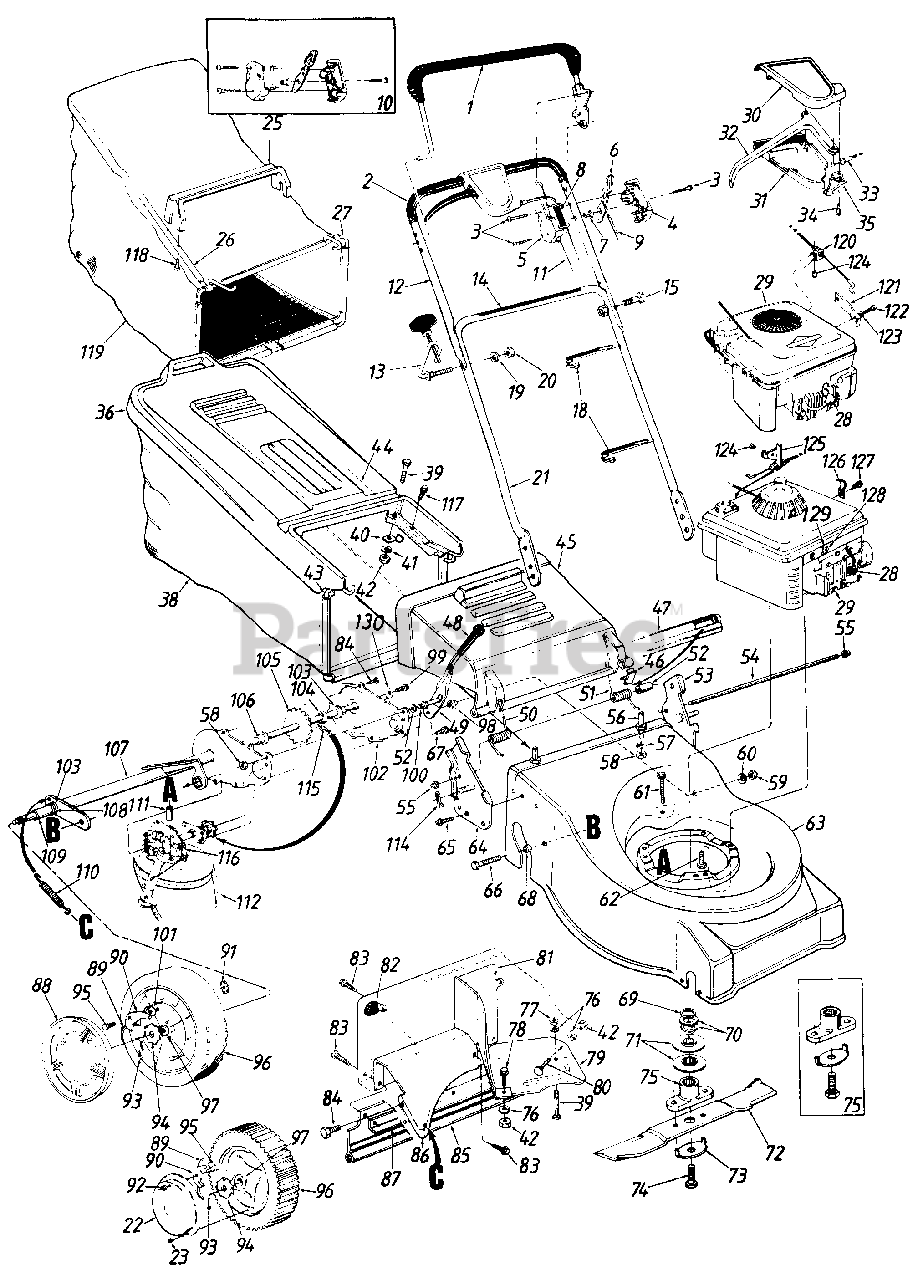

Parts03 Parts Diagram

  • Title

1

MTD 731-0609

Control Handle Ass'y.

$

$

Not available

2

MTD 720-0225

Grip
(Superseded to 720-0294A)

$7.99

$

In Stock, only 3 left!

0

3

MTD 710-0796

Truss Mach. B-Tap Scr. #12 x 1.5" Lg.

$5.99

$

In Stock, Qty 8

0

4

MTD 731-0817

Control Panel Half

$

$

Not available

5

MTD 731-0816

Clutch Panel Half

$

$

Not available

6

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$10.99

$

In Stock, Qty 13

0

7

MTD 731-0524

Control Disc Pin

$

$

Not available

8

MTD 777-5774

Control Label-Throttle

$

$

Currently unavailable

9

MTD 746-0632

Throttle Wire-53" Lg.
(Superseded to 946-0671A)

Note: (464R, 474R)

$14.99

$

In Stock, Qty 8

0

MTD 746-0640

Throttle Wire-45" Lg.
(Superseded to 946-1115)

Note: (465R, 468R, 475R, 478R)

$29.99

$

In Stock, only 1 left!

0

MTD 746-0672

Throttle Wire-58" Lg.
(Superseded to 946-0674A)

Note: (466R, 469R, 476R, 479R)

$19.99

$

In Stock, only 4 left!

0

10

MTD 753-0430

Control Housing Comp.

$

$

Not available

11

MTD 746-0480

Control Cable-46" Lg.
(Superseded to 946-0478A)

Note: (464R, 474R)

$

$

Not available

MTD 746-0479

Control Cable-55" Lg.
(Superseded to 946-0479A)

Note: (465R, 468R, 475R, 478R)

$

$

Not available

MTD 746-0477

Control Cable-43" Lg.
(Superseded to 946-0477A)

Note: (466R, 469R, 476R, 479R)

$

$

Not available

12

MTD 749-0437

Upper Handle

$

$

Currently unavailable

13

MTD 710-0842

Rope Guide Bolt

$

$

Not available

14

MTD 777-5776

Instruction Label-Handle

$

$

Currently unavailable

15

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

18

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

19

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

21

MTD 749-0505

Lower Handle
(Superseded to 749-0907B)

$53.99

$

In Stock, only 4 left!

0

22

MTD 10647

Hub Cap

$

$

Not available

23

MTD 710-0748

Pan HD. Tap Scr. #12 x .50" Lg.

Note: (Used w/Ref. #22)

$

$

Not available

MTD 736-0270

Bell-Wash. .265" I.D. x .75"

$4.49

$

In Stock, Qty 20+

0

25

MTD 731-0801

Bag Handle

Note: (Models 464R and 469R only)

$

$

Not available

26

MTD 749-0764

Rear Catcher Frame
(Superseded to 749-0764A-0637)

Note: (Models 464R and 469R only)

$43.99

$

Usually ships in 3-6 days

0

27

MTD 747-0700

Front Catcher Frame
(Superseded to 764-0412-0637)

Note: (Models 464R and 469R only)

$

$

Not available

28

MTD 735-0639

Spark Plug Boot

$

$

Not available

29

Engine

$

$

Not available

30

MTD 731-0617

Control Cover Half-Upper
(Superseded to 731-0617A)

$

$

Not available

31

MTD 731-0618

Control Cover Half-Lower
(Superseded to 753-0833)

$53.99

$

In Stock, only 2 left!

0

32

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$16.99

$

In Stock, Qty 7

0

33

MTD 746-0651

Drive Cable-53" Lg.
(Superseded to 946-0651)

$

$

Not available

34

MTD 710-0841

Flat C-Sunk Hd. Tap Scr. #10 x .75" Lg.

$4.99

$

Usually ships in 3-6 days

0

35

MTD 731-0619

Cable Mtg. Cap

$

$

Not available

36

MTD 731-0857

Hardtop Bag Cover
(Superseded to 631-0003)

Note: (Models 474R and 479R only)

$110.99

$

Usually ships in 3-6 days

0

38

MTD 764-0252

Grass Bag
(Superseded to 964-0252)

Note: (Models 474R and 479R only)

$151.99

$

In Stock, only 1 left!

0

39

MTD 710-0166

Truss Mach. Scr. 1/4-20 x 1.0" Lg.
(Superseded to 710-0166A)

$7.99

$

In Stock, only 1 left!

0

40

MTD 12894

Mounting Clamp

Note: (Models 474R and 479R only)

$

$

Not available

41

MTD 736-0463

Fl-Wash. .281" I.D. x .62"

Note: (Models 474R and 479R only)

$4.99

$

In Stock, Qty 20+

0

42

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

43

MTD 747-0693

Front Catcher Frame
(Superseded to 764-0411-0637)

Note: (Models 474R and 479R only)

$43.99

$

Usually ships in 3-6 days

0

44

MTD 749-0736

Rear Catcher Frame

Note: (Models 474R and 479R only)

$

$

Not available

45

MTD 731-0859

Chute Deflector
(Superseded to 931-0859A)

$120.99

$

Usually ships in 3-6 days

0

46

MTD 731-0970

Deflector Plug
(Superseded to 731-0970B)

$

$

Not available

47

MTD 731-0858

Seal-Extrusion

$

$

Not available

48

MTD 720-0223

Grip

$15.99

$

In Stock, Qty 5

0

49

MTD 732-0580

Spring Lever

$

$

Not available

50

MTD 732-0578

Torsion Spring-R.H.
(Superseded to 732-0578B)

$

$

Not available

51

MTD 732-0577

Torsion Spring-L.H.
(Superseded to 932-0577B)

$

$

Not available

52

MTD 750-0566

Spacer.255" I.D.
(Superseded to 750-0566A)

$10.99

$

In Stock, Qty 11

0

53

MTD 12297

Handle Brkt. Ass'y.-L.H.

$

$

Not available

54

MTD 747-0698

Hinge Pin 17.75" Lg.
(Superseded to 747-0698B)

$

$

Not available

55

MTD 726-0106

Cap Speed Nut

$4.49

$

Usually ships in 3-6 days

0

56

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

57

MTD 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

58

MTD 712-0711

Hex Jam Nut 3/8-24 Thd

$4.49

$

In Stock, Qty 20+

0

59

MTD 712-0296

Hex L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

60

MTD 736-0105

Bell-Wash. .38" I.D. x .88"

$4.99

$

In Stock, Qty 20+

0

61

MTD 710-0778

Hex Wash. Hd. Tap Scr. 1/4-20 x 1. 5 " Lg .

$4.49

$

In Stock, Qty 20+

0

62

MTD 710-0654

Hex L-Wash. Hd. Scr. 3/8-16x 1" Lg.
(Superseded to 710-0654A)

$4.99

$

In Stock, Qty 20+

0

63

MTD 16997

21" Deck Ass'y.

$

$

Currently unavailable

64

MTD 12296

Handle Brkt. Ass'y.-R.H.
(Superseded to 12296B-0637)

$

$

Not available

65

MTD 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x.62" Lg.
(Superseded to 910-0892)

$

$

Not available

66

MTD 710-1006

Hex Wash. Hd. Tap Scr. 3/8-16 x .75" Lg .
(Superseded to 910-1006)

$

$

Not available

67

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

68

MTD 750-0526

Spacer.385" I.D.

$4.99

$

In Stock, Qty 18

0

69

MTD 736-0409

Serrated Washer 1.0" I.D.
(Superseded to 936-0409)

$

$

Not available

70

MTD 736-0408

Wave Washer 1.005" I.D.
(Superseded to 936-0447)

$4.49

$

In Stock, Qty 16

0

71

MTD 756-0502

Serrated Pulley Half
(Superseded to 956-0502)

$

$

Not available

72

MTD 742-0306

21" Blade
(Superseded to 942-0621)

$31.99

$

In Stock, only 3 left!

0

73

MTD 736-0415

Blade Bell-Wash. .44" I.D.
(Superseded to 753-0525)

$

$

Not available

74

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg. (Grade 5)

$10.99

$

In Stock, only 2 left!

0

75

MTD 753-0463

Blade Adapter Kit
(Superseded to 753-0485)

$46.99

$

Usually ships in 3-6 days

0

76

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

77

MTD 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)

$6.99

$

Usually ships in 3-6 days

0

78

MTD 710-0252

Hex Bolt 1/4-20 x .85" Lg.
(Superseded to 710-3015)

$4.49

$

In Stock, Qty 20+

0

79

MTD 17013

Rear Belt Baffle

$

$

Not available

80

MTD 710-0167

Carr. Bolt 1/4-20 x .50" Lg.*
(Superseded to 710-05177)

$5.49

$

In Stock, Qty 16

0

81

MTD 17006

Rear Panel Baffle

Variations

MTD 17006-0637

No Longer Available BAFFLE-RR- - POWDER BLACK (0637)

$

$

Not available

$

$

82

MTD 731-0931

Corner Plug

$

$

Not available

83

MTD 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.99

$

In Stock, Qty 14

0

84

MTD 710-0352

Hex B-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

85

MTD 731-0668

Rear Flap
(Superseded to 731-0669)

$53.99

$

Usually ships in 3-6 days

0

86

MTD 17008

Rear Chute Baffle
(Superseded to 17008-0637)

Variations

MTD 17008-0637

BAFFLE-RR-CHUTE - POWDER BLACK (0637)

$

$

Not available

$

$

87

MTD 14847

Retaining Strip

Variations

MTD 14847-0637

Retaining Strip - POWDER BLACK (0637)

$

$

Not available

$

$

88

MTD 731-0975

Hub Cap
(Superseded to 731-0981C)

$11.99

$

In Stock, Qty 6

0

89

MTD 10622

Plastic Spring
(Superseded to 10622BP)

$5.49

$

In Stock, Qty 20+

0

90

MTD 748-0188

Pawl.345" I.D.
(Superseded to 948-0188B)

$11.99

$

Usually ships in 3-6 days

0

91

MTD 712-0189

Weld Nut 1/4-20 Thd.

Note: (Used w/Ref. #88)

$

$

Not available

92

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

Note: (Used w/Ref. #22)

$3.99

$

In Stock, only 4 left!

0

93

MTD 714-0115

Cotter Pin 1/8" Dia.

$4.49

$

In Stock, only 2 left!

0

94

MTD 748-0318

Ratchet Wheel 1.62" O.D.
(Superseded to 948-0318)

$10.99

$

In Stock, Qty 12

0

95

MTD 738-0137

Shld. Bolt .342" Dia. x .268"

$

$

Not available

96

Wheel Ass'y. Comp.-Rear

$

$

Not available

MTD 734-1412

"T" Tread (8 x 1.75)

$

$

Not available

MTD 734-1260

"T" Tread (8 x 1.75)

$

$

Not available

MTD 734-1510

"S" Wave Tread (8 x 2)
(Superseded to 734-1826)

$35.99

$

In Stock, only 2 left!

0

97

Flange Ball bearing 1/2" I.D.

$

$

Not available

MTD 741-0180

1/2" I.D. Ball Brg.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

MTD 741-0180

1/2" I.D. Ball Brg.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

MTD 741-0486

1/2" I.D. Sleeve Brg.

$

$

Not available

98

MTD 750-0624

Shld. Spacer. 50" Dia.

$

$

Not available

99

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

100

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

101

MTD 736-0270

Bell-Wash. .265" I.D. x .75"

Note: (Used w/Ref. #88)

$4.49

$

In Stock, Qty 20+

0

102

MTD 17053

Chain Cover Ass'y.

$

$

Not available

103

MTD 741-0324

Hex Flange Brg. .506n I.D.
(Superseded to 741-0324A)

$8.49

$

In Stock, only 3 left!

0

104

MTD 736-0160

Fl-Wash. .531" I.D. x .93"

$4.49

$

Usually ships in 3-6 days

0

105

MTD 738-0719

Rear Axle Ass'y.
(Superseded to 938-0719A)

$

$

Not available

106

MTD 741-0522

Hex Flange Bearing

$9.49

$

In Stock, only 1 left!

0

107

MTD 17009

Chain Axle Ass'y.

Variations

MTD 17009-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

108

MTD 736-0326

Fl-Wash. .510" I.D. x 1.0"

$4.99

$

In Stock, Qty 12

0

109

MTD 748-0190

Spacer. 513" I.D.

$6.99

$

In Stock, Qty 8

0

110

MTD 732-0481

Extension Spring 3.8" Lg.
(Superseded to 932-0481)

$

$

Not available

111

MTD 750-0589

Spacer.325" I.D.
(Superseded to 950-0589)

$6.99

$

Usually ships in 3-6 days

0

112

MTD 754-0346

V-Belt
(Superseded to 954-0346)

$30.99

$

In Stock, only 2 left!

0

114

MTD 714-0104

Internal Cotter Pin 5/16n Dia.

$4.49

$

In Stock, Qty 17

0

115

MTD 713-0353

#48 Chain .50" Pitch x 30 Links
(Superseded to 913-0353)

$

$

Not available

116

MTD 717-0417

Transmission Comp.
(Superseded to 917-0417B)

Note: (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

117

MTD 710-0776

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

Note: (Models 474R and 479R only)

$4.49

$

In Stock, Qty 8

0

118

MTD 710-1025

Hex AB-Tap Scr. #12 x 1.25" Lg.

Note: (Models 464R and 469R only)

$6.99

$

Usually ships in 3-6 days

0

119

MTD 764-0246

Grass Bag

Note: (Models 464R and 469R only)

$

$

Not available

120

MTD 16703

Cable Mtg. Brkt.

Note: (464R, 474R)

$

$

Not available

121

MTD 16704

Mounting Brkt.

Note: (464R, 474R)

$

$

Currently unavailable

122

MTD 710-0473

Truss Mach. Scr. #10 x .5" Lg.

Note: (464R, 474R)

$4.49

$

In Stock, only 1 left!

0

123

MTD 736-0722

L-Wash. #10 I.D.

Note: (464R, 474R)

$7.49

$

Usually ships in 3-6 days

0

124

MTD 728-0171

Pop Rivet .156" Dia.

Note: (B&S)

$

$

Not available

125

MTD 14924

Cable Brkt.

Note: (466R, 469R, 476R, 479R)

$

$

Not available

126

MTD 12894

Cable Clamp

Note: (466R, 469R, 476R, 479R)

$

$

Not available

127

MTD 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

Note: (466R, 469R, 476R, 479R)

$3.99

$

Usually ships in 3-6 days

0

128

MTD 710-0436

Hex B-Tap Scr. #10 x .62" Lg.
(Superseded to 710-0651)

Note: (466R, 469R, 476R, 479R)

$3.99

$

Usually ships in 3-6 days

0

129

MTD 751-0463

Cable Clamp

Note: (466R, 469R. 476R. 479R)

$

$

Not available

130

MTD 736-0270

Bell-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0
