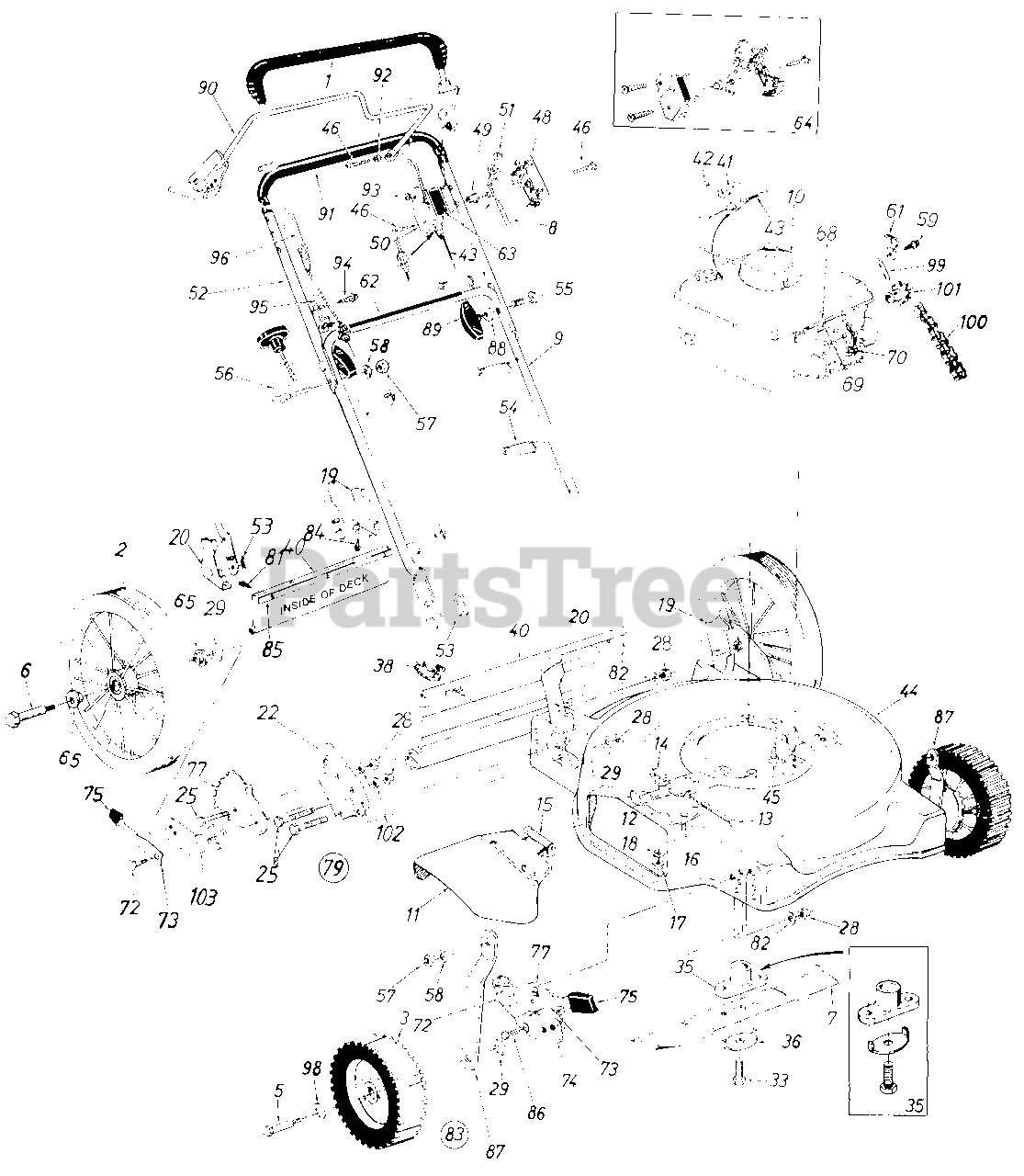

128-516R000 - MTD Walk-Behind Mower (1988) Parts Parts Diagram

Walk-Behind Mower

Parts Parts Diagram

  • Title

1

MTD 731-0609

Control Handle Ass'y.

$

$

Not available

2

MTD 734-0244

Rear Wheel Ass'y.-Comp. 14.0x 1.75

$

$

Not available

3

MTD 734-1174

Front Wheel Ass'y.-Comp. 8.0x 1.75
(Superseded to 734-1174A)

$

$

Not available

5

MTD 738-0144

Front Axle Bolt
(Superseded to 938-0144)

$

$

Not available

6

MTD 738-0481

Rear Axle Bolt
(Superseded to 938-0481A)

$6.49

$

In Stock, Qty 19

0

7

MTD 742-0522

22" Blade
(Superseded to 942-0622)

$

$

Not available

8

MTD 746-0632

Throttle Wire-53" Lg.
(Superseded to 946-0671A)

$13.99

$

In Stock, Qty 9

0

9

MTD 749-0373

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, Qty 10

0

10

4 H.P. Engine-B&S 110782-3124-01

$

$

Not available

11

MTD 14944

Chute Deflector Ass'y. Comp.
(Superseded to 931-1034B)

$67.99

$

In Stock, Qty 12

0

12

MTD 11130

IAdapter Plate

$

$

Not available

13

MTD 711-0555

Pivot Pin

$

$

Not available

14

MTD 726-0106

Push Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

15

MTD 732-0253

Torsion Spring

$

$

Not available

16

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

17

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

18

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

19

MTD 17189

Handle Mount Brkt.-L.H.

Note: (Model 516R only)

$

$

Not available

MTD 12935

Handle Mount Brkt.-L H

Note: (Model 516C only)

$

$

Not available

20

MTD 17188

Handle Mount Brkt.-R.H.

Note: (Model 516R only)

$

$

Not available

MTD 12936

Handle Mount Brkt.-R H

Note: (Model 516C only)

$

$

Not available

22

MTD 16645

Mounting Plate

$

$

Not available

25

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$3.99

$

In Stock, Qty 17

0

28

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

29

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

33

MTD 710-0459

Hex Bolt 3/8-24 x 1.5" Lg. (Grade 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

35

MTD 753-0462

Blade Adapter Kit

$

$

Not available

36

MTD 736-0415

Blade Bell-Wash.
(Superseded to 753-0525)

$

$

Not available

38

MTD 17098

Hinge Clip
(Superseded to 17098P)

Note: (Model 516R only)

$

$

Not available

40

MTD 731-0872

Rear Flap Ass y.
(Superseded to 731-0872B)

Note: (Model 516R only)

$36.99

$

In Stock, Qty 6

0

MTD 731-0794

Rear Flap Ass y

Note: (Model 516C only)

$

$

Not available

41

MTD 14924

Cable Bracket

$

$

Not available

42

MTD 728-0171

Pop Rivet .156 Dia. x .379

$

$

Not available

43

MTD 746-0476

Control Cable-39"
(Superseded to 946-0476A)

$

$

Not available

44

MTD 17046

22" Deck Assy.
(Superseded to 97046)

Note: (Model 516R only)

$197.99

$

Usually ships in 3-6 days

0

MTD 16526

22" Deck Assy

Note: (Model 516C only)

$

$

Currently unavailable

45

MTD 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0654A)

$3.99

$

In Stock, only 4 left!

0

46

MTD 710-0796

Truss Mach. "B"-Tap Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, Qty 6

0

48

MTD 731-0817

Control Panel Half

$

$

Not available

49

MTD 731-0524

Control Disc Pin

$

$

Not available

50

MTD 731-0816

Clutch Panel Half

$

$

Not available

51

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$8.99

$

In Stock, Qty 14

0

52

MTD 749-0754

Upper Handle

$

$

Not available

53

MTD 714-0104

Intern. Cot. Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

54

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

55

MTD 710-0405

Curved Carriage Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$6.99

$

In Stock, Qty 20+

0

56

MTD 710-0842

Rope Guide Bolt

$

$

Not available

57

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

58

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

59

MTD 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.49

$

Usually ships in 3-6 days

0

61

MTD 12894

Casing Clamp

$

$

Not available

62

MTD 777-5776

Instruction Label-Handle

$

$

Currently unavailable

63

MTD 777-5774

Control Label-Throttle

$

$

Currently unavailable

64

MTD 753-0430

Control Housing Comp.

$

$

Not available

65

MTD 748-0147

Flange Bearing

$

$

Not available

68

MTD 751-0463

Casing Clamp

$

$

Not available

69

MTD 710-0436

Hex B-Tap Scr. #10 x .62" Lg.
(Superseded to 710-0651)

$3.49

$

Usually ships in 3-6 days

0

70

MTD 735-0639

Spark Plug Boot

$

$

Not available

72

MTD 738-0507

Shoulder Bolt .50" Dia.
(Superseded to 938-0507B)

$4.49

$

In Stock, Qty 20+

0

73

MTD 732-0417

Spring Lever
(Superseded to 732-0417A)

$12.99

$

Usually ships in 3-6 days

0

74

MTD 14766

Pivot Bar

$19.99

$

Usually ships in 3-6 days

0

75

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

77

MTD 14764

Index Plate
(Superseded to 14764C)

$7.99

$

Usually ships in 3-6 days

0

79

MTD 16106

Rear Height Adj. Ass'y. Comp.-R.H.

$

$

Not available

MTD 16107

Rear Height Adj. Ass'y. Comp.-L.H.

Note: (Not Shown)

$

$

Not available

81

MTD 710-0776

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

Note: (Model 516C only)

$3.99

$

In Stock, Qty 20+

0

82

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

83

MTD 16106

Front Height Adj. Ass'y. Comp.-L.H.

Note: (Not Shown)

$

$

Not available

MTD 16107

Front Height Adj. Ass'y. Comp.-R.H.

$

$

Not available

84

MTD 710-0603

Hex Self-Tap Scr. 5/16-18 x.5" Lg.

Note: (Model 516C only)

$4.49

$

Usually ships in 3-6 days

0

85

MTD 14836

Retainer Stript

Note: (Model 516R only)

$

$

Not available

86

MTD 710-0892

Hex Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

87

MTD 16532

Link
(Superseded to 16532B-0637)

$

$

Not available

88

MTD 736-0242

Bell-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

89

MTD 09966

Hand Knob
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

90

MTD 16391

S.P. Bail Ass'y.

$

$

Not available

91

MTD 718-0145

Grip

$

$

Currently unavailable

92

MTD 750-0649

Spacer .23" I.D. x .3" O.D.

$

$

Not available

93

MTD 736-0370

Spr.-Wash. .206" I.D.

$

$

Not available

94

MTD 710-0726

Hex Wash. AB-Tap Scr. 5/16 x.75" Lg.

$3.99

$

In Stock, Qty 20+

0

95

MTD 16309

Cable Mounting Brkt.
(Superseded to 16309A)

$

$

Not available

96

MTD 746-0626

Drive Cable
(Superseded to 946-0626)

$64.99

$

Usually ships in 3-6 days

0

98

MTD 736-0192

Fl-Wash. .531" I.D. x .931'

$3.99

$

In Stock, only 2 left!

0

99

MTD 715-0247

Spring Pin 3/16" Dia.
(Superseded to 915-0247)

$

$

Not available

100

MTD 713-0311

#48 Chain 1/2" Pitch 50 Links (Endless)
(Superseded to 913-0311)

$31.99

$

Usually ships in 3-6 days

0

101

MTD 713-0308

10 Tooth Sprocket Ass'y.

$

$

Not available

102

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

103

MTD 14765

Pivot Bar

$19.99

$

Usually ships in 3-6 days

0
