128 C - Husqvarna String Trimmer (2008-09) Repair Parts Parts Diagram

String Trimmer

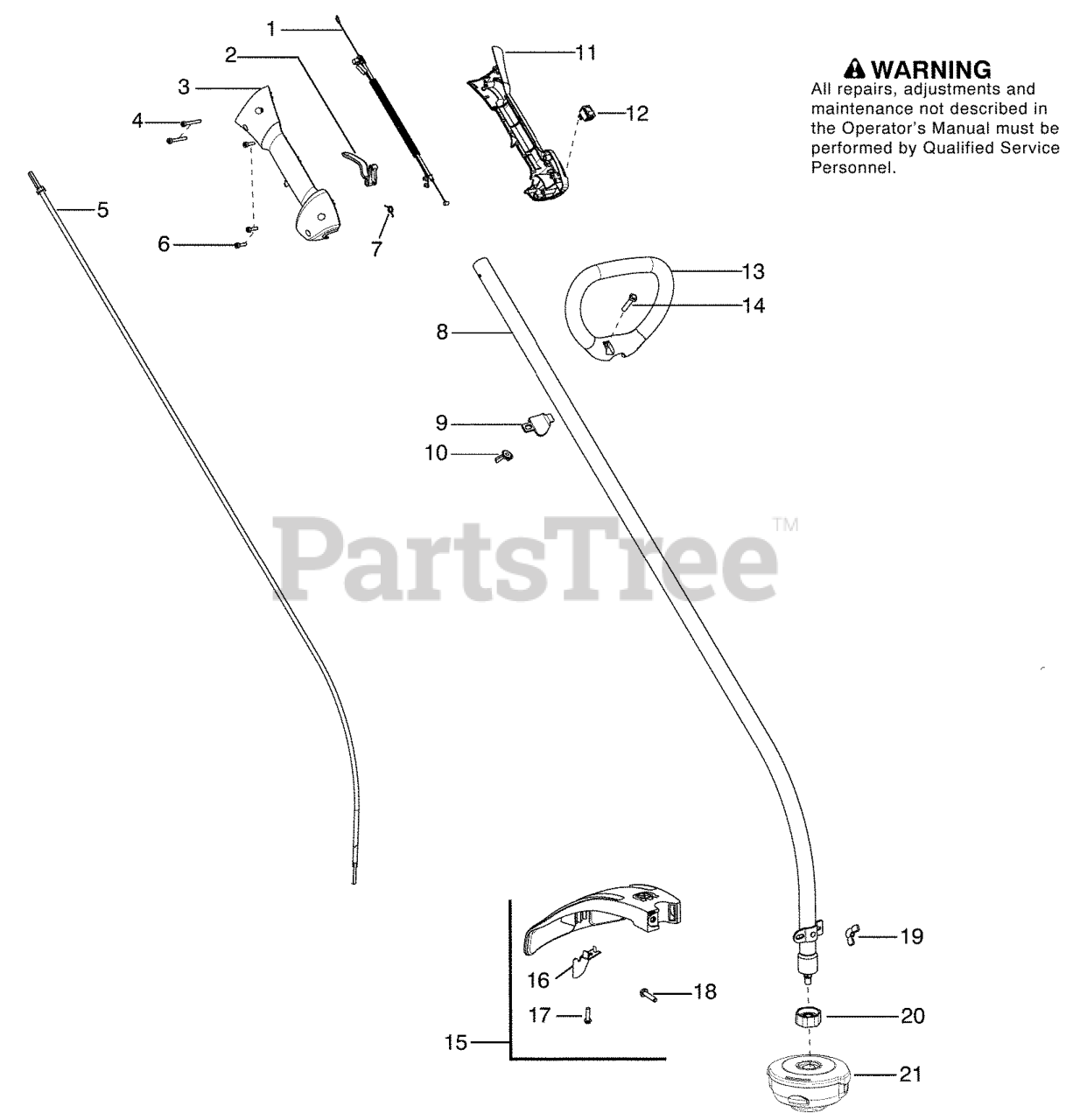

Repair Parts Parts Diagram

  • Title

1

Assy-Cable/Wire Harness from SN New Part Number For This IPL

Note: Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

2

Husqvarna 545066001

TRIGGER THROTTLE

$

$

Not available

3

Husqvarna 545062002

HOUSING-THROTTLE (RH)

$

$

Not available

4

Husqvarna 530016448

SCREW

$3.49

$

In Stock, only 2 left!

0

5

Flexshaft from SN New Part Number For This IPL

Note: Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

6

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

$3.49

$

In Stock, Qty 14

0

7

Husqvarna 530016454

SPRING TRIGGER

$5.99

$

In Stock, Qty 20+

0

8

Husqvarna 545180806

DRIVESHAFT KIT

$

$

Not available

9

Husqvarna 530059185

CLAMP ASSIST HANDLE

$4.99

$

In Stock, Qty 7

0

10

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, Qty 8

0

11

Husqvarna 545067001

HSG THROTTLE LH

$

$

Not available

12

Husqvarna 545030601

KIT SWITCH
(Superseded to 545049301)

$11.99

$

In Stock, only 4 left!

0

13

Husqvarna 545042201

HANDLE

$20.99

$

In Stock, Qty 5

0

14

Husqvarna 530015820

BOLT, TYPE 2

$4.99

$

In Stock, Qty 11

0

15

Husqvarna 545031101

TRIMMER GUARD 128C

Note: (Incl. 16,17,18,19)

$31.99

$

In Stock, only 1 left!

0

16

Husqvarna 545081862

KIT - LIMITER - LINE

$6.99

$

In Stock, only 1 left!

0

17

Husqvarna 530015814

SCREW

$3.49

$

In Stock, Qty 6

0

18

Husqvarna 530015820

BOLT, TYPE 2

$4.99

$

In Stock, Qty 11

0

19

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, Qty 8

0

20

Husqvarna 545017403

DUST CUP

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 537338303

T25 TRIMMER HEAD 3/8 RH
(Superseded to 537338312)

$26.99

$

In Stock, Qty 9

0

Husqvarna 545146947

MANUAL OPERATORS

Note: Not Shown

$

$

Not available

Husqvarna 545059101

DECAL WARNING

Note: Not Shown

$

$

Not available
