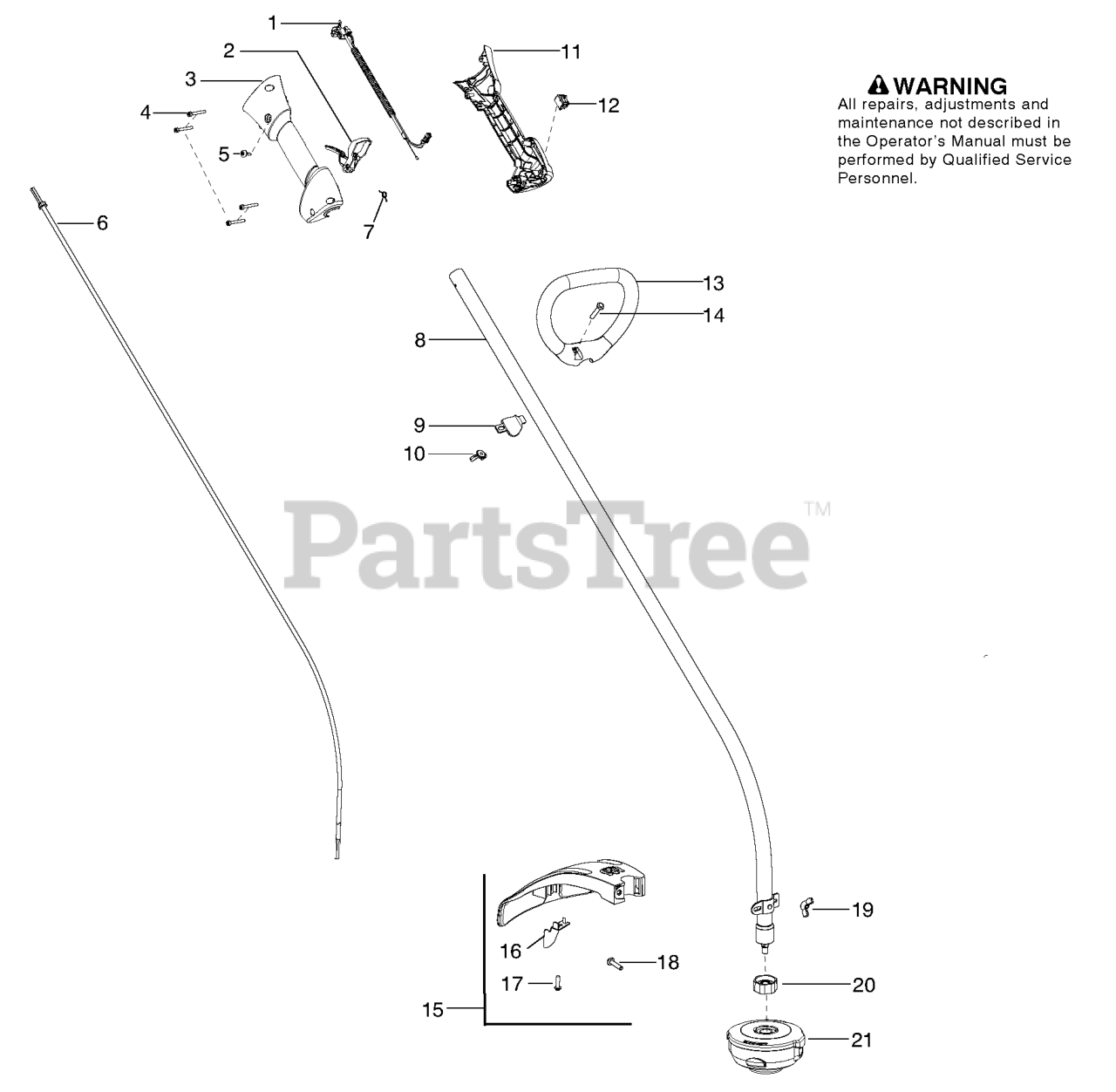

128 C - Husqvarna String Trimmer (2010-03) Shaft & Handle Parts Diagram

String Trimmer

Shaft & Handle Parts Diagram

  • Title

1

Assy-Cable/Wire Harness

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

2

Trigger

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

3

Housing-Throttle (RH)

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

4

Screw

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

5

Screw

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

6

Husqvarna 545007508

FLEX SHAFT 52"

$27.99

$

Usually ships in 3-10 days

0

7

Husqvarna 530016454

SPRING TRIGGER

$5.99

$

In Stock, Qty 13

0

8

Husqvarna 575755601

KIT DRIVESHAFT
(Superseded to 580446609)

Note: New Part Number For This IPL

$71.99

$

Usually ships in 3-10 days

0

9

Husqvarna 530059185

CLAMP ASSIST HANDLE

$4.99

$

In Stock, Qty 5

0

10

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$

$

Not available

11

Housing-Throttle (LH)

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

12

Kit-Switch

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

13

Husqvarna 545042201

HANDLE

$21.99

$

In Stock, only 2 left!

0

14

Husqvarna 530015820

BOLT, TYPE 2

$2.49

$

In Stock, Qty 10

0

15

Husqvarna 545031101

TRIMMER GUARD 128C

Note: (Incl. 16,17,18,19)

$33.99

$

Usually ships in 3-10 days

0

16

Husqvarna 545081862

KIT - LIMITER - LINE

$6.99

$

In Stock, only 1 left!

0

17

Husqvarna 530015814

SCREW

$3.49

$

In Stock, Qty 5

0

18

Husqvarna 530015820

BOLT, TYPE 2

$2.49

$

In Stock, Qty 10

0

19

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$

$

Not available

20

Husqvarna 545017403

DUST CUP

$7.49

$

In Stock, only 2 left!

0

21

Husqvarna 537338307

T25 TRIM HEAD RH
(Superseded to 537338312)

$27.99

$

Usually ships in 3-10 days

0

Husqvarna 545196750

MANUAL OPERATORS

Note: Not Shown

$

$

Not available
