128 CD (545192186) - Husqvarna String Trimmer (2009-01) Repair Parts Parts Diagram

String Trimmer

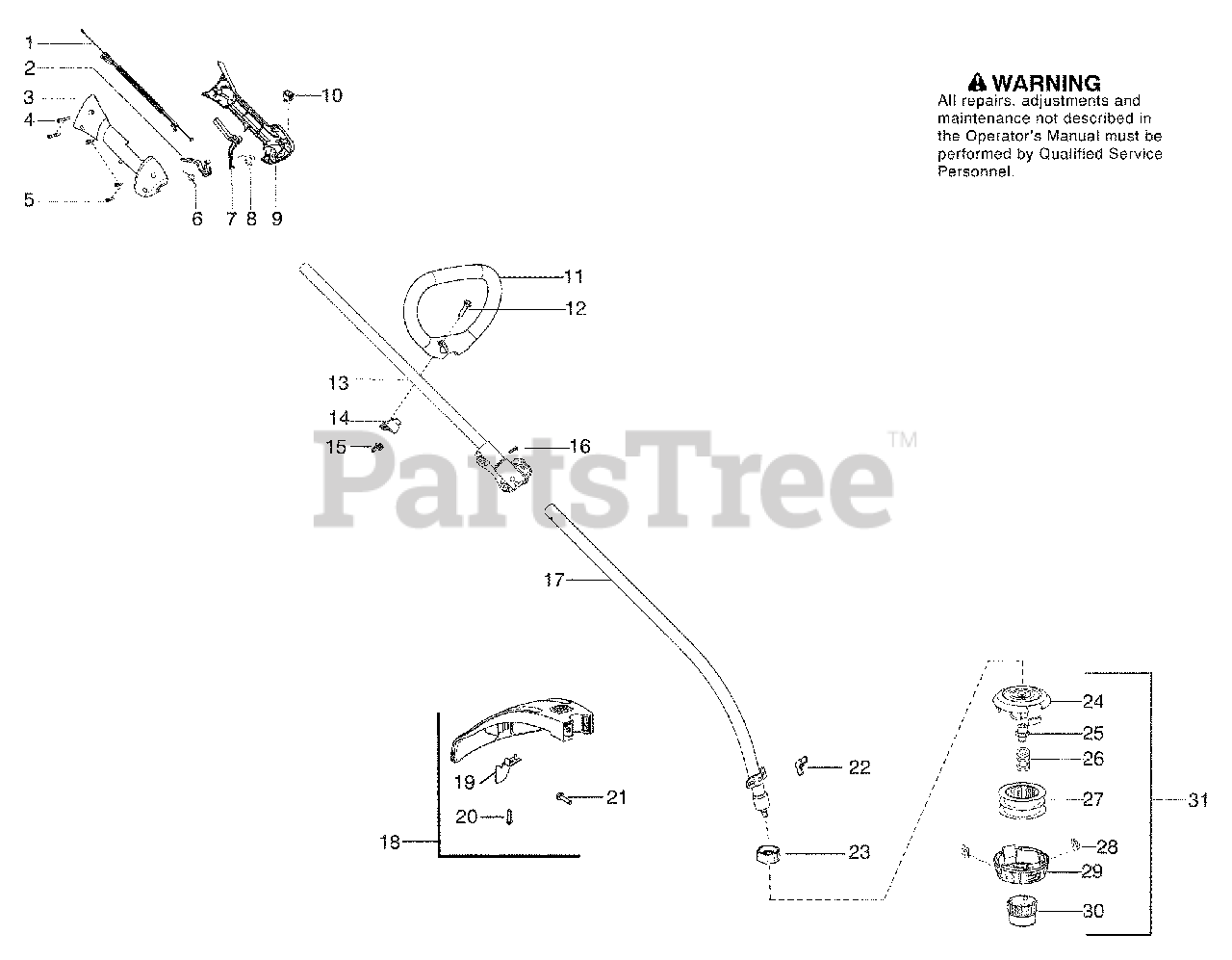

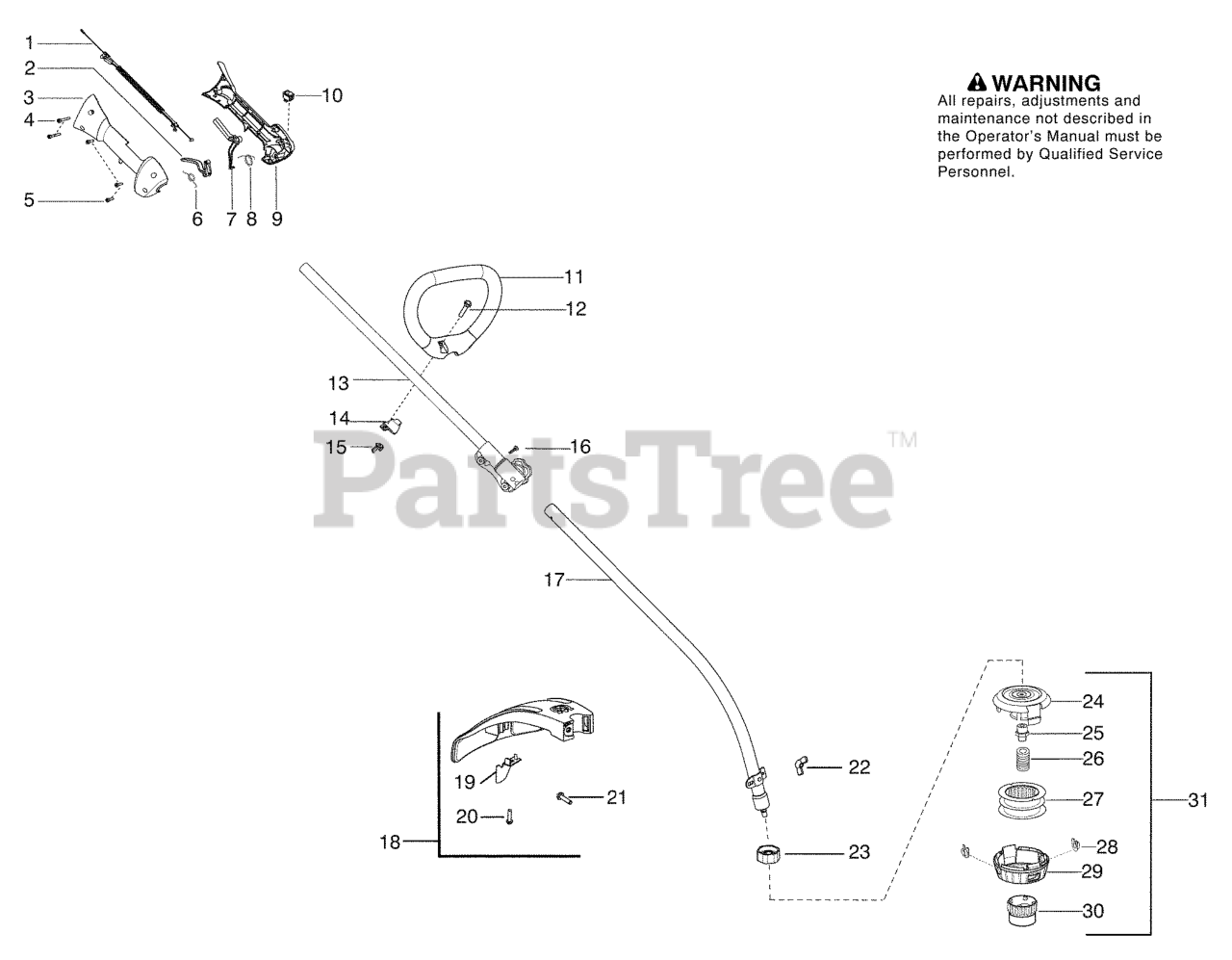

Repair Parts Parts Diagram

  • Title

1

Husqvarna 545125301

Assy - Cable/Wire Harness

$37.99

$

In Stock, Qty 8

0

2

Husqvarna 545066001

Trigger

$

$

Not available

3

Husqvarna 545062001

Housing - Throttle (RH)

$

$

Not available

4

Husqvarna 530016448

Screw

$6.49

$

In Stock, Qty 20+

0

5

Husqvarna 530016449

Screw

$6.49

$

In Stock, Qty 20+

0

6

Husqvarna 530016454

Spring - Trigger

$6.49

$

In Stock, only 1 left!

0

7

Husqvarna 530059804

Lockout - Throttle

$6.49

$

In Stock, Qty 8

0

8

Husqvarna 545045601

Spring - Lockout

$6.49

$

In Stock, Qty 7

0

9

Husqvarna 545067001

Housing - Throttle (LH)

$

$

Not available

10

Husqvarna 545030601

Kit - Switch
(Superseded to 545049301)

$9.99

$

In Stock, Qty 18

0

11

Husqvarna 545042201

Handle - Assist

$13.99

$

Usually ships in 3-10 days

0

12

Husqvarna 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 545003379

Kit - Driveshaft Upper
(Superseded to 575262501)

Note: (Incl. 16, & Flex)

$47.99

$

In Stock, Qty 9

0

14

Husqvarna 530059185

Clamp - Assist Handle

$6.49

$

In Stock, only 2 left!

0

15

Husqvarna 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 545180847

Kit - Lower Shaft

Note: (incl. flex)

$53.99

$

In Stock, Qty 7

0

18

Husqvarna 545031101

Kit - Shield

Note: (Incl. 19,20,21,22)

$31.99

$

In Stock, only 2 left!

0

19

Husqvarna 530052287

Limiter - Line

$4.99

$

In Stock, only 2 left!

0

20

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

21

Husqvarna 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 530057559

Dust Cup

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 537419303

Housing

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 537419901

Adapter

$8.99

$

In Stock, only 4 left!

0

26

Husqvarna 537338801

Spring

$6.49

$

In Stock, Qty 8

0

27

Husqvarna 545080801

Assy - Wound Spool

$

$

Not available

28

Husqvarna 537419701

Eyelet
(Superseded to 545003365)

$12.99

$

In Stock, Qty 5

0

29

Husqvarna 537419401

Cover
(Superseded to 545003365)

$12.99

$

In Stock, Qty 5

0

30

Husqvarna 537419601

Knob

$6.49

$

In Stock, Qty 20+

0

31

Husqvarna 537419205

Assy. - TNG7 Cutting Head
(Superseded to 537419214)

Note: (Incl. 24,25,26,27,28,29,30)

$28.99

$

In Stock, only 2 left!

0

Husqvarna 530031159

Wrench-Hex (5/32")

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0
