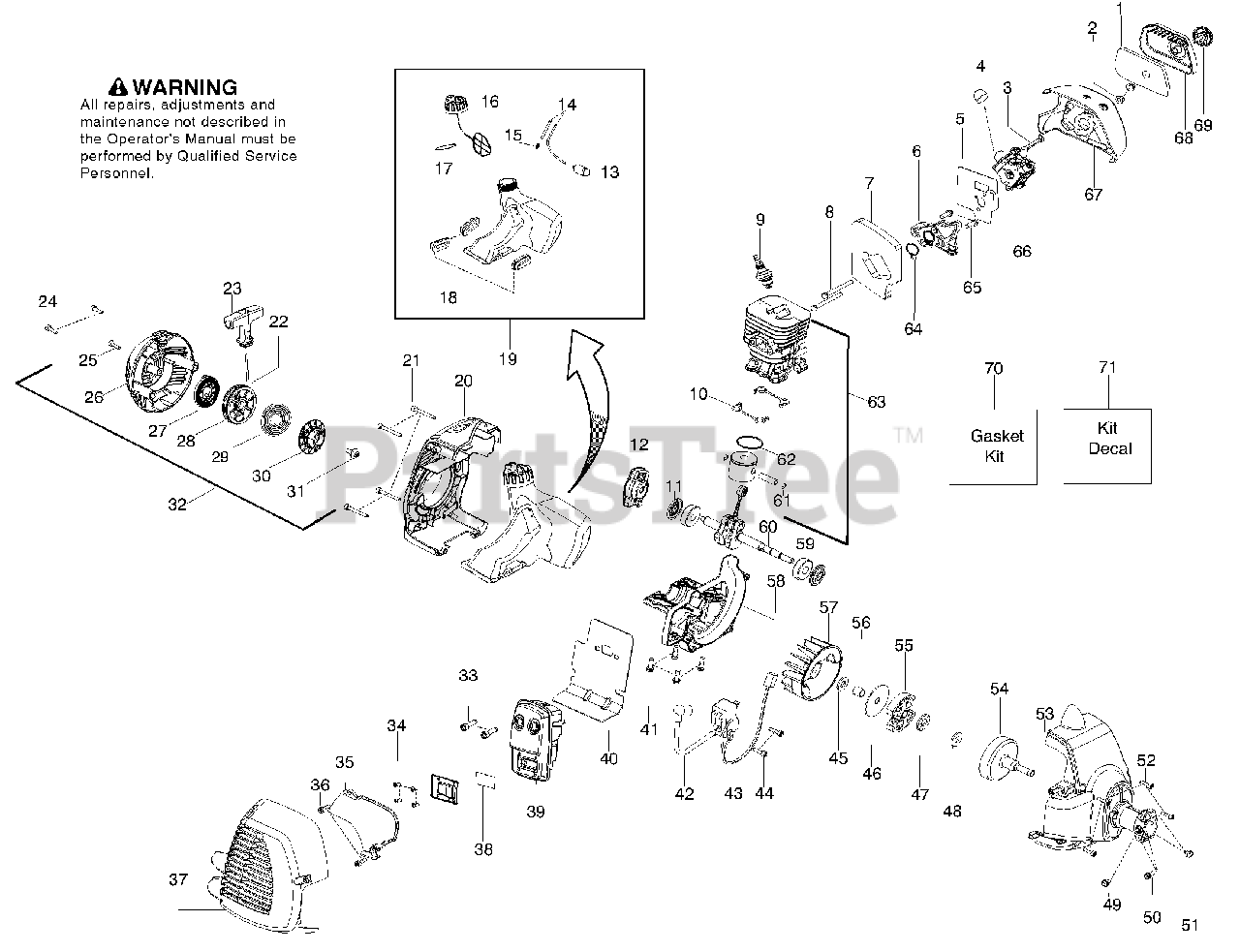

128 CD - Husqvarna String Trimmer (2010-03) (Lowes) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Husqvarna 530150253

Filter

$3.49

$

In Stock, Qty 20+

0

2

Husqvarna 530016101

Nut - Carb. Screw

$4.99

$

In Stock, Qty 13

0

3

Husqvarna 530057844

Lever - Choke

$6.99

$

In Stock, Qty 13

0

4

Husqvarna 530058709

Bulb - Purge

$7.99

$

In Stock, Qty 12

0

5

Husqvarna 545008086

Kit - Carb. Gasket

Note: (Incl. 7,64)

$13.99

$

In Stock, only 2 left!

0

6

Husqvarna 530035596

Adaptor - Carb.

$9.49

$

In Stock, only 4 left!

0

7

Husqvarna 545008084

Foam - Gasket (kit)

$22.99

$

In Stock, only 1 left!

0

8

Husqvarna 530016400

Bolt

$3.49

$

In Stock, only 2 left!

0

9

Husqvarna 952030201

Plug - Spark (RCJ-8Y)
(Superseded to 503235112)

$3.99

$

Usually ships in 3-10 days

0

10

Seal - Cylinder (kit)

$

$

Not available

11

Husqvarna 545008084

Seal - Crankshaft (kit)

$22.99

$

In Stock, only 1 left!

0

12

Assy - Starter Pawl

$

$

Not available

13

Husqvarna 530095646

Assy - Fuel Filter

$6.99

$

In Stock, Qty 20+

0

14

Kit - Fuel Line

Note: (Incl. 15)

$

$

Not available

15

Fitting - Fuel line

$

$

Not available

16

Husqvarna 530150350

Assy - Cap w/ret.
(Superseded to 578931503)

Note: (Incl. 17)

$9.49

$

In Stock, Qty 11

0

17

Husqvarna 545008084

O-ring - Fuel Cap (kit)

$22.99

$

In Stock, only 1 left!

0

18

Husqvarna 530059780

Isolator - Fuel Tank

$5.99

$

Usually ships in 3-10 days

0

19

Kit - Fuel Tank Assy.

Note: (Incl. 13,14,15,16,17,18)

$

$

Not available

20

Husqvarna 576382101

Shroud - Rear (KIT)
(Superseded to 579066901)

$37.99

$

In Stock, only 2 left!

0

21

Husqvarna 530016448

Screw

$3.49

$

In Stock, only 4 left!

0

22

Kit - Rope

$

$

Not available

23

Handle - Starter

$

$

Not available

24

Husqvarna 530016426

Screw

$4.99

$

In Stock, Qty 7

0

25

Husqvarna 530016449

Screw

$3.49

$

In Stock, Qty 20+

0

26

Hsg. - Starter w/eyelet

$

$

Not available

27

Kit - Spring

$

$

Not available

28

Kit - Starter Pulley

$

$

Not available

29

Spring - Driver

$

$

Not available

30

Pulley - Driver

$

$

Not available

31

Husqvarna 530016468

Screw

$3.49

$

In Stock, Qty 5

0

32

Assy - Starter Hsg.

Note: (Incl. 22,23,25 - 31)

$

$

Not available

33

Husqvarna 530058982

Bolt - Muffler

$3.49

$

In Stock, Qty 5

0

34

Husqvarna 530015241

Screw
(Superseded to 545227101)

$3.49

$

In Stock, Qty 20+

0

35

Husqvarna 530150440

Shield - Heat

$6.99

$

In Stock, only 1 left!

0

36

Husqvarna 530016449

Screw

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna 576215001

Kit - Muffler Guard

Note: (Incl. Screws)

$17.99

$

In Stock, Qty 11

0

38

Husqvarna 545030501

Kit - Spark

Note: (Incl. 34)

$7.99

$

In Stock, only 2 left!

0

39

Husqvarna 574031501

Kit - Muffler
(Superseded to 574031502)

Note: (Incl. 33,34,38,40)

$43.99

$

In Stock, only 3 left!

0

40

Husqvarna 545008084

Gasket - Paper Met.(kit)

$22.99

$

In Stock, only 1 left!

0

41

Husqvarna 530015897

Screw

$3.49

$

In Stock, Qty 19

0

42

Husqvarna 545046701

Module

$62.99

$

In Stock, only 2 left!

0

43

Husqvarna 530039227

Assy - Leadwire

$7.99

$

In Stock, only 1 left!

0

44

Husqvarna 530016456

Screw

$3.49

$

In Stock, only 2 left!

0

45

Husqvarna 530016463

Washer

$4.99

$

In Stock, only 3 left!

0

46

Husqvarna 530094189

Washer - Clutch

$6.99

$

In Stock, Qty 8

0

47

Husqvarna 545173401

Bearing - Thrust

$7.99

$

In Stock, Qty 8

0

48

Husqvarna 530016420

Washer - Thrust

$3.49

$

In Stock, Qty 7

0

49

Screw

$

$

Not available

50

Screw

$

$

Not available

51

Husqvarna 530015768

Nut

$3.49

$

In Stock, Qty 12

0

52

Husqvarna 530016456

Screw

$3.49

$

In Stock, only 2 left!

0

53

Assy - Fan Housing

$

$

Not available

54

Husqvarna 530150039

Assy - Clutch Drum
(Superseded to 587126401)

$31.99

$

Usually ships in 3-10 days

0

55

Husqvarna 530055122

Assy - Clutch Assy

$22.99

$

In Stock, Qty 9

0

56

Husqvarna 530057852

Spacer

$11.99

$

In Stock, only 2 left!

0

57

Husqvarna 530039242

Flywheel

$37.99

$

Usually ships in 3-10 days

0

58

Crankcase - Cast

$

$

Not available

59

Husqvarna 545013401

Bearing

$6.99

$

Usually ships in 3-10 days

0

60

Assy - Crankshaft

$

$

Not available

61

Husqvarna 530015162

Retainer - Piston Pin

$3.49

$

In Stock, only 2 left!

0

62

Husqvarna 530019283

Ring - Piston
(Superseded to 575227901)

$6.99

$

In Stock, Qty 5

0

63

Kit - Piston/Cyl.

Note: (Incl. 61,62)

$

$

Not available

64

Husqvarna 545008084

Seal - adaptor (kit)

$22.99

$

In Stock, only 1 left!

0

65

Husqvarna 530015897

Screw

$3.49

$

In Stock, Qty 19

0

66

Husqvarna 545081848

Kit - Carb.

Note: (Incl. 3,4,5)

$45.99

$

In Stock, Qty 14

0

67

Husqvarna 545084601

Airbox
(Superseded to 576459001)

$7.99

$

In Stock, Qty 6

0

68

Husqvarna 530057846

Cover - Air Box

$9.49

$

Usually ships in 3-10 days

0

69

Husqvarna 530059796

Assy - Knob

$5.99

$

In Stock, Qty 5

0

70

Husqvarna 545008084

Kit - Gasket

Note: (Incl. 5,7,10,11,17,40,64)

$22.99

$

In Stock, only 1 left!

0

71

Husqvarna 545180860

Kit - Decal

$

$

Not available
