128 CD - Husqvarna String Trimmer (2010-03) Shaft and Handle Parts Diagram

String Trimmer

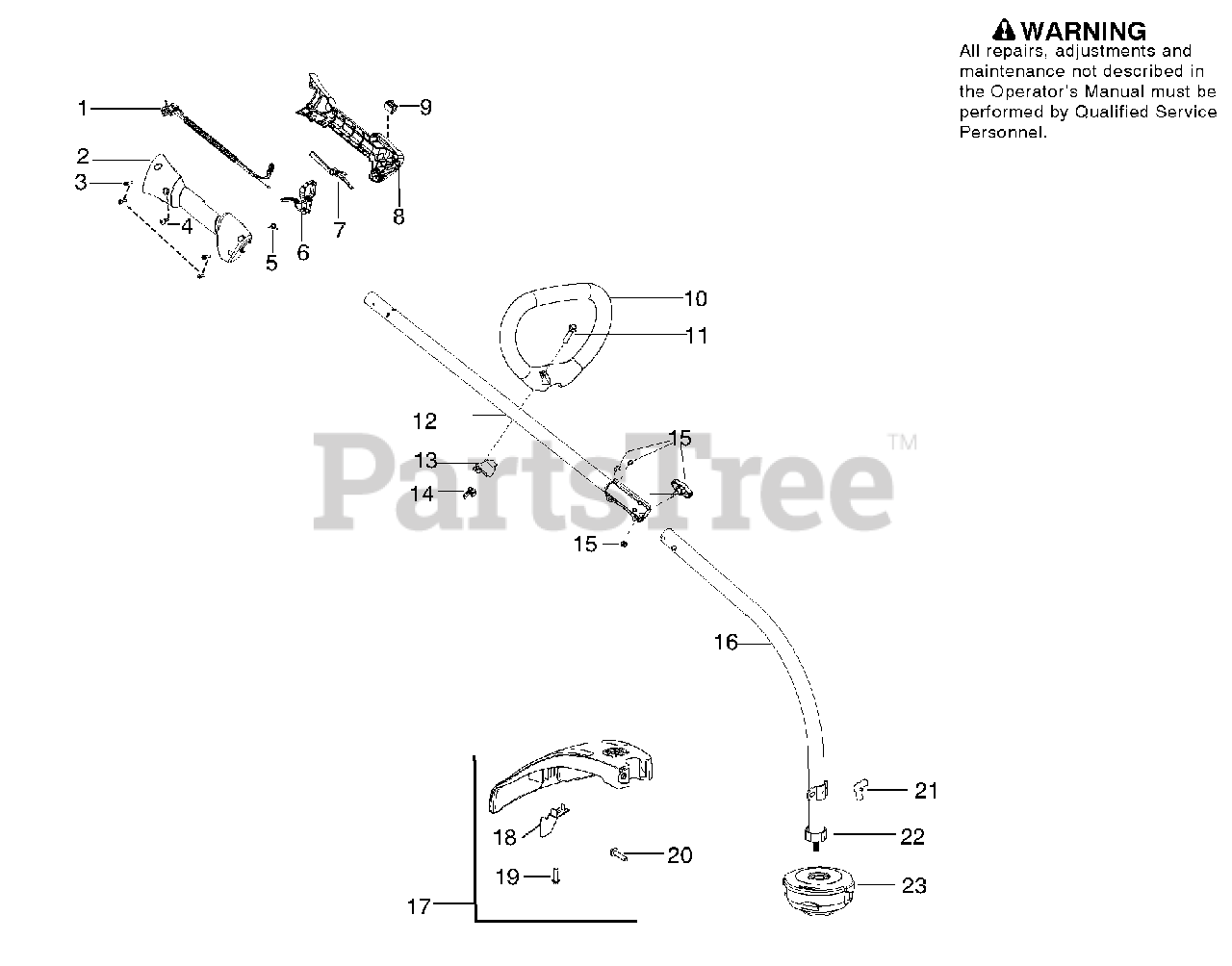

Shaft and Handle Parts Diagram

  • Title

1

Assy - Cable/Wire Harness

$

$

Not available

2

Housing - Throttle (RH)

$

$

Not available

3

Screw

$

$

Not available

4

Screw

$

$

Not available

5

Husqvarna 530016454

Spring - Trigger

$6.49

$

Usually ships in 3-10 days

0

6

Trigger

$

$

Not available

7

Lockout - Throttle

$

$

Not available

8

Housing - Throttle (LH)

$

$

Not available

9

Kit - Switch

$

$

Not available

10

Husqvarna 545042201

Handle - Assist

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 575262501

Kit - Driveshaft Upper
(Superseded to 575261201)

Note: (Incl. 15, & Flex)

$47.99

$

In Stock, Qty 9

0

13

Husqvarna 530059185

Clamp - Assist Handle

$6.49

$

In Stock, only 2 left!

0

14

Husqvarna 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

15

Husqvarna 575291801

Kit - Knob / Screw
(Superseded to 587119302)

$8.99

$

In Stock, Qty 11

0

16

Husqvarna 545180847

Kit - Lower Shaft

Note: (incl. flex)

$53.99

$

In Stock, Qty 7

0

17

Husqvarna 545031101

Kit - Shield

Note: (Incl. 18,19,20,21)

$31.99

$

In Stock, only 2 left!

0

18

Husqvarna 530052287

Limiter - Line

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

20

Husqvarna 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

22

Dust Cup

$

$

Not available

23

Assy. - T25 Cutting Head

$

$

Not available

Husqvarna 115275126

Manual

Note: Not Shown

$

$

Not available

Husqvarna 530031159

Wrench-Hex (5/32")

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0
