128 DJX (966712501) - Husqvarna String Trimmer (2011-01) ENGINE Parts Diagram

String Trimmer

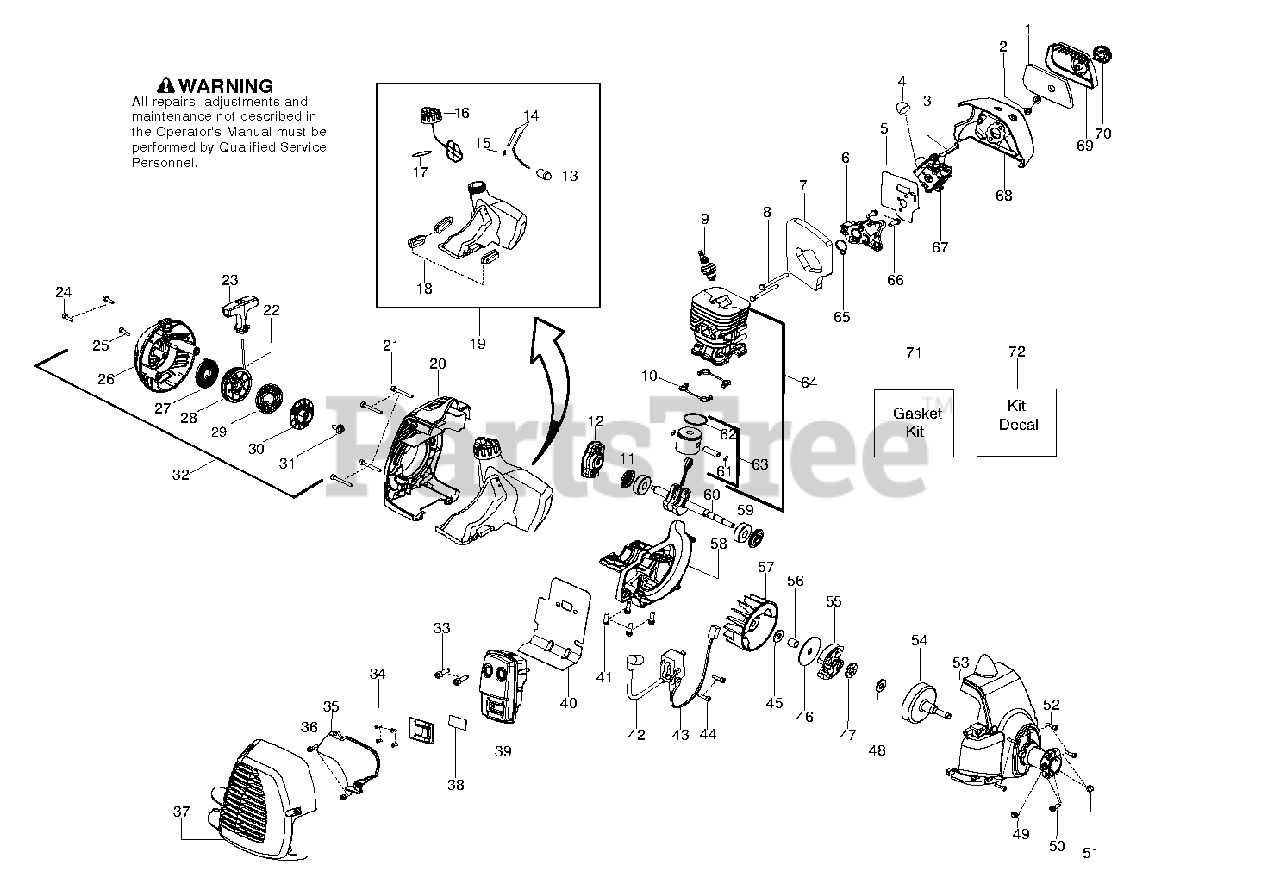

ENGINE Parts Diagram

  • Title

1

Husqvarna 530150253

FILTER AIRBOX

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 530016101

NUT

$6.49

$

In Stock, Qty 8

0

3

Husqvarna 530057844

CHOKE LEVER

Note: CHOKE LEVER

$8.99

$

In Stock, only 1 left!

0

4

Husqvarna 530058709

PURGE BULB ZAMA

$7.49

$

In Stock, Qty 16

0

5

Husqvarna 545008086

KIT GASKET CARB 28CC

Note: . 7 64

$18.99

$

In Stock, only 2 left!

0

6

Husqvarna 530035596

CARB ADAPTOR

$12.99

$

In Stock, only 1 left!

0

7

Husqvarna 545008084

KIT GASKET 28CC

$26.99

$

In Stock, Qty 5

0

8

Husqvarna 530016400

BOLT CARB ADAPTOR

$6.49

$

In Stock, only 4 left!

0

9

Husqvarna 952030201

Spark Plug, BPMR6A BLYB
(Superseded to 503235112)

Note: RCJ-8Y

$3.49

$

In Stock, Qty 19

0

10

Husqvarna 545008084

KIT GASKET 28CC

$26.99

$

In Stock, Qty 5

0

11

Husqvarna 545008084

KIT GASKET 28CC

$26.99

$

In Stock, Qty 5

0

12

Husqvarna 503873305

STARTER PAWL BRIDGE

$26.99

$

In Stock, Qty 20+

0

13

Husqvarna 530095646

FUEL PICK-UP ASSY

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 530069599

KIT-LINE(FUEL)

Note: . 15

$7.49

$

In Stock, Qty 20+

0

15

Husqvarna 530023877

FUEL LINE FITTING

$4.99

$

In Stock, Qty 17

0

16

Husqvarna 530150350

ASSY-CAP W/RETAINER
(Superseded to 578931503)

Note: . 17

$7.49

$

In Stock, Qty 20+

0

17

Husqvarna 545008084

KIT GASKET 28CC

$26.99

$

In Stock, Qty 5

0

18

Husqvarna 530059780

ISOLATOR FUEL TANK

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 545180870

KIT FUEL TANK HVA

$44.99

$

In Stock, Qty 9

0

20

Husqvarna 576153201

REAR SHROUD ORANGE

$6.49

$

In Stock, only 4 left!

0

21

Husqvarna 530016448

SCREW

$6.49

$

In Stock, Qty 19

0

22

Husqvarna 545008079

KIT ROPE

$10.99

$

Usually ships in 3-10 days

0

23

Husqvarna 545043204

STARTER HANDLE

$7.49

$

In Stock, only 4 left!

0

24

Husqvarna 530016426

SCREW M5-0.8X30MM

$6.49

$

In Stock, Qty 15

0

25

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, Qty 20+

0

26

Husqvarna 576382101

KIT STARTER HSG HVA 128
(Superseded to 579066901)

$34.99

$

In Stock, only 3 left!

0

27

Husqvarna 545008087

KIT STARTER SPRING

$8.99

$

Usually ships in 3-10 days

0

28

Husqvarna 545008078

KIT STARTER PULLEY
(Superseded to 585530301)

$9.99

$

In Stock, Qty 13

0

29

Husqvarna 544038802

SPRING - DRIVER

$7.49

$

In Stock, Qty 10

0

30

Husqvarna 544038702

DRIVER PULLEY
(Superseded to 579366201)

$4.99

$

In Stock, only 2 left!

0

31

Husqvarna 530016468

SCREW

$6.49

$

In Stock, Qty 7

0

32

Husqvarna 576368301

ASSY STARTER HSG HVA
(Superseded to 579063101)

Note: . 22 23 25-31

$25.99

$

In Stock, Qty 20+

0

33

Husqvarna 530058982

BOLT MUFFLER

$4.99

$

In Stock, Qty 12

0

34

Husqvarna 530015241

SCREW-6-19X5/16PLAST PA
(Superseded to 545227101)

$4.99

$

In Stock, Qty 6

0

35

Husqvarna 530150440

SHIELD HEAT

Note: HEAT SHIELD

$8.99

$

In Stock, only 1 left!

0

36

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, Qty 20+

0

37

Husqvarna 576215001

KIT MUFFLER GUARD HVA

$10.99

$

In Stock, Qty 15

0

38

Husqvarna 545030501

KIT SPARK ARRESTOR SCREEN

Note: . 34

$8.99

$

In Stock, only 3 left!

0

39

Husqvarna 574031502

KIT MUFFLER W/CATALYST

$40.99

$

In Stock, only 1 left!

0

40

Husqvarna 545008084

KIT GASKET 28CC

$26.99

$

In Stock, Qty 5

0

41

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

$6.49

$

In Stock, Qty 19

0

42

Husqvarna 545046701

IGNITION MODULE MBU-7

$53.99

$

In Stock, Qty 15

0

43

Husqvarna 530039227

ASSY MODULE LEAD WIRE

$8.99

$

In Stock, Qty 8

0

44

Husqvarna 530016456

SCREW M4 X .70 TT 16MM

$6.49

$

In Stock, only 2 left!

0

45

Husqvarna 530016463

WASHER CLUTCH

$4.99

$

In Stock, only 4 left!

0

46

Husqvarna 530094189

WASHER-CLUTCH

$6.49

$

Usually ships in 3-10 days

0

47

Husqvarna 545173401

BEARING THRUST

Note: THRUST BEARING

$9.49

$

In Stock, only 1 left!

0

48

Husqvarna 530016420

WASHER THRUST

$6.49

$

In Stock, Qty 11

0

49

Husqvarna 530015805

SCREW-10-14 X 1/2 PLASTITE

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 530015774

SCREW-10-24 X 1" (UNC)

$6.49

$

In Stock, only 3 left!

0

51

Husqvarna 530015768

LOCKNUT-HEX 10-24

$6.49

$

In Stock, only 2 left!

0

52

Husqvarna 530016456

SCREW M4 X .70 TT 16MM

$6.49

$

In Stock, only 2 left!

0

53

Husqvarna 545205201

ASSY FAN HOUSING HVA 1"

$24.99

$

In Stock, only 1 left!

0

54

Husqvarna 530150039

ASSY-CLUTCH DRUM
(Superseded to 587126401)

$9.99

$

In Stock, Qty 7

0

55

Husqvarna 530055122

ASSEMBLY CLUTCH

$13.99

$

In Stock, only 1 left!

0

56

Husqvarna 530057852

SPACER FLYWHEEL

$4.99

$

Usually ships in 3-10 days

0

57

Husqvarna 530039242

FLYWHEEL

$44.99

$

In Stock, only 1 left!

0

58

Husqvarna 545195601

CRANKCASE CAST LE28
(Superseded to 577929502)

$34.99

$

Usually ships in 3-10 days

0

59

Husqvarna 545013401

BEARING RADIAL BALL (6201)

$10.99

$

In Stock, only 3 left!

0

60

Husqvarna 545195202

ASSY CRANKSHAFT
(Superseded to 585415401)

$47.99

$

Usually ships in 3-10 days

0

61

Husqvarna 530015162

WRIST PIN RET.

Note: PISTON PIN RETAINER

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 530019283

RING PISTON
(Superseded to 575227901)

$7.49

$

In Stock, Qty 17

0

63

Husqvarna 545081814

KIT - PISTON

Note: . 61 62

$44.99

$

In Stock, only 1 left!

0

64

Husqvarna 545008083

KIT PISTON CYL

Note: . 63

$100.99

$

Usually ships in 3-10 days

0

65

Husqvarna 545008084

KIT GASKET 28CC

$26.99

$

In Stock, Qty 5

0

66

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

$6.49

$

In Stock, Qty 19

0

67

Husqvarna 545081848

KIT CARB

Note: . 3 4 5

$44.99

$

In Stock, Qty 20+

0

68

Husqvarna 576459001

AIRBOX HVA 128 HUSKY GRAY

$6.49

$

In Stock, Qty 5

0

69

Husqvarna 530057846

COVER-AIR BOX

$8.99

$

In Stock, Qty 20+

0

70

Husqvarna 530059796

KNOB ASSY AIRBOX COVER

$4.99

$

In Stock, Qty 20+

0

71

Husqvarna 545008084

KIT GASKET 28CC

Note: . 5 7 10 11 17 40 65

$26.99

$

In Stock, Qty 5

0

72

Husqvarna 577503701

KIT DECAL

Note: DECAL KIT

$5.76

$

In Stock, only 3 left!

0
