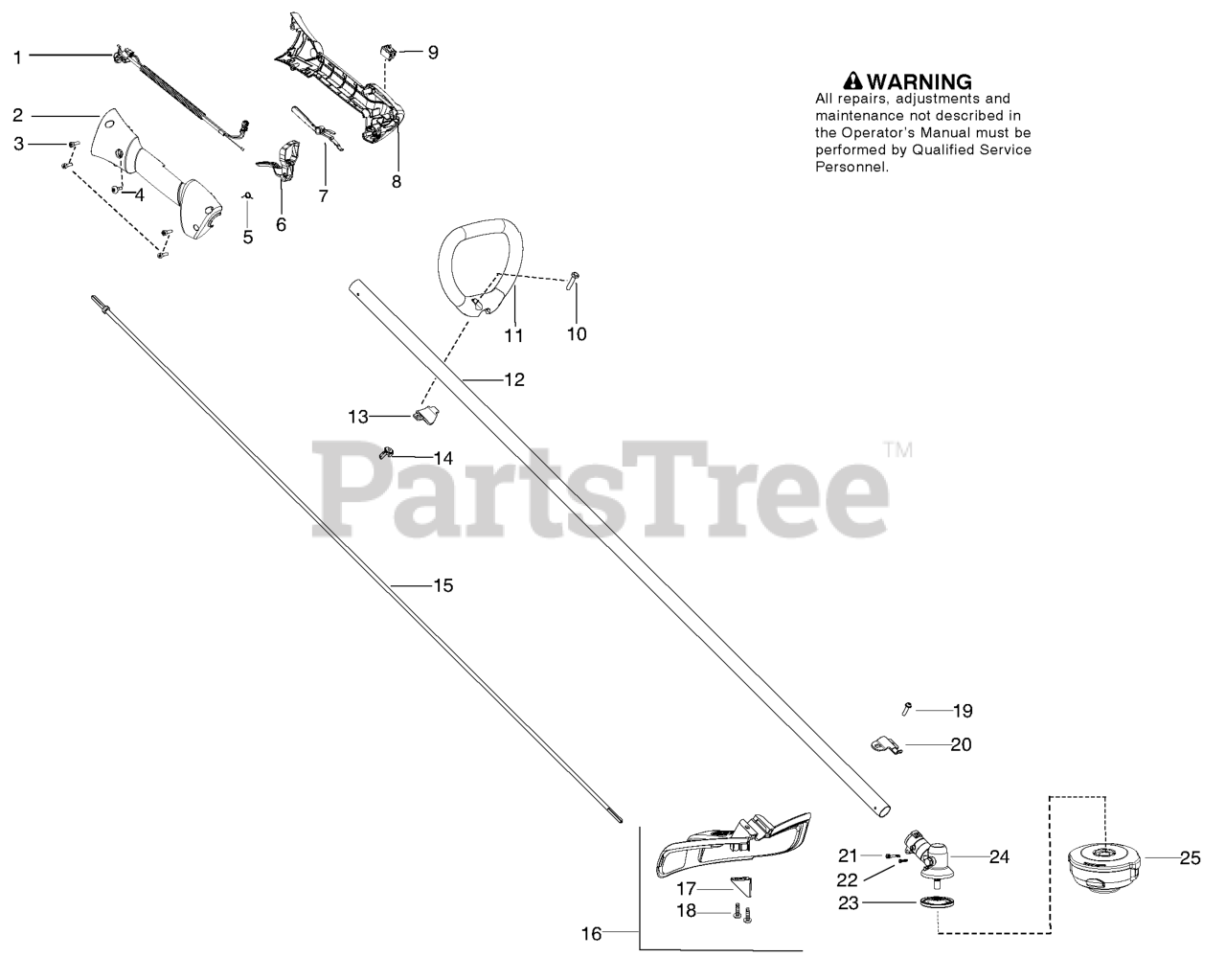

128 L - Husqvarna String Trimmer (2010-03) Shaft And Handle Parts Diagram

String Trimmer

Shaft And Handle Parts Diagram

  • Title

1

Assy-Cable/Wire Harness

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

2

Housing-Throttle (RH)

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

3

Screw

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

4

Screw

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

5

Husqvarna 530016454

SPRING TRIGGER

$5.99

$

In Stock, Qty 11

0

6

Trigger

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

7

Lockout-Throttle

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

8

Housing-Throttle (LH)

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

9

Kit-Switch

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

10

Husqvarna 530015820

BOLT, TYPE 2

$2.49

$

In Stock, Qty 10

0

11

Husqvarna 545042201

HANDLE

$21.99

$

In Stock, only 2 left!

0

12

Husqvarna 575755501

KIT DRIVE SHAFT SST US / CAN
(Superseded to 545008081)

Note: (Incl. decal, 20,21,22,24) New Part Number For This IPL

$119.99

$

Usually ships in 3-10 days

0

13

Husqvarna 530059185

CLAMP ASSIST HANDLE

$4.99

$

In Stock, Qty 5

0

14

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$

$

Not available

15

Husqvarna 545007507

FLEXSHAFT 57"

$33.99

$

In Stock, Qty 7

0

16

Husqvarna 545030901

KIT COBI SHIELD

Note: (Incl. 17,18,19)

$33.99

$

In Stock, only 4 left!

0

17

Husqvarna 530052286

Limiter-Line

$

$

Not available

18

Husqvarna 530015814

SCREW

$3.49

$

In Stock, Qty 5

0

19

Husqvarna 530015771

SCREW 1/4-20 X 7/8 (TAP

$3.99

$

In Stock, only 2 left!

0

20

Husqvarna 530057554

BRACKET SHIELD STRAIGHT SHAFT

$7.49

$

In Stock, only 3 left!

0

21

Husqvarna 530016014

SCREW - CARB. ADAPTOR

$3.99

$

In Stock, only 2 left!

0

22

Husqvarna 545003902

SCREW

$2.49

$

In Stock, Qty 6

0

23

Husqvarna 537234901

DRIVE DISC

$33.99

$

In Stock, only 2 left!

0

24

Husqvarna 530096295

ASSY GEARBOX

$43.99

$

In Stock, only 1 left!

0

25

Husqvarna 537338306

T25 TRIM HEAD 10MM LH
(Superseded to 537338310)

$33.99

$

In Stock, Qty 20+

0

Husqvarna 545196750

MANUAL OPERATORS

Note: Not Shown

$

$

Not available
