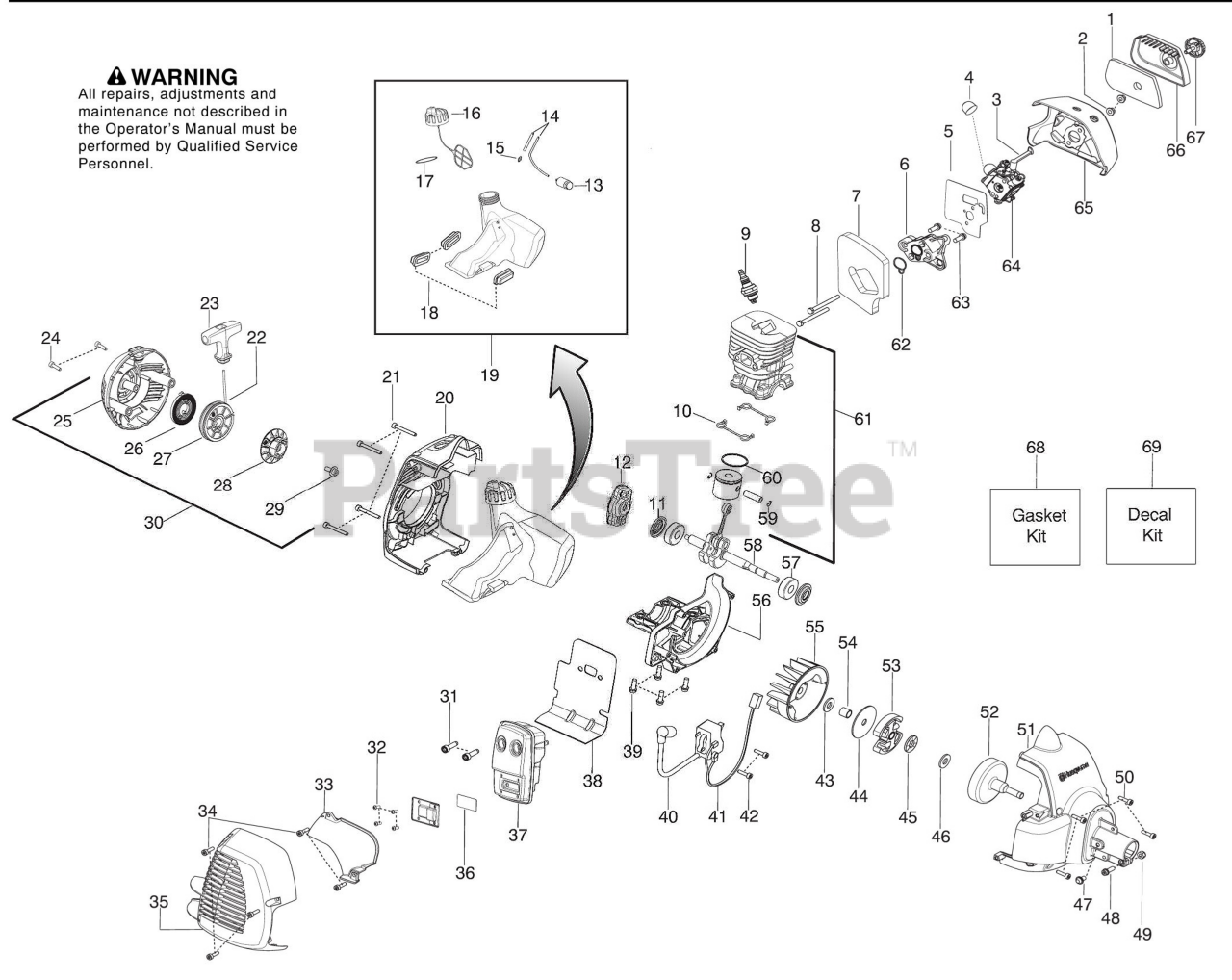

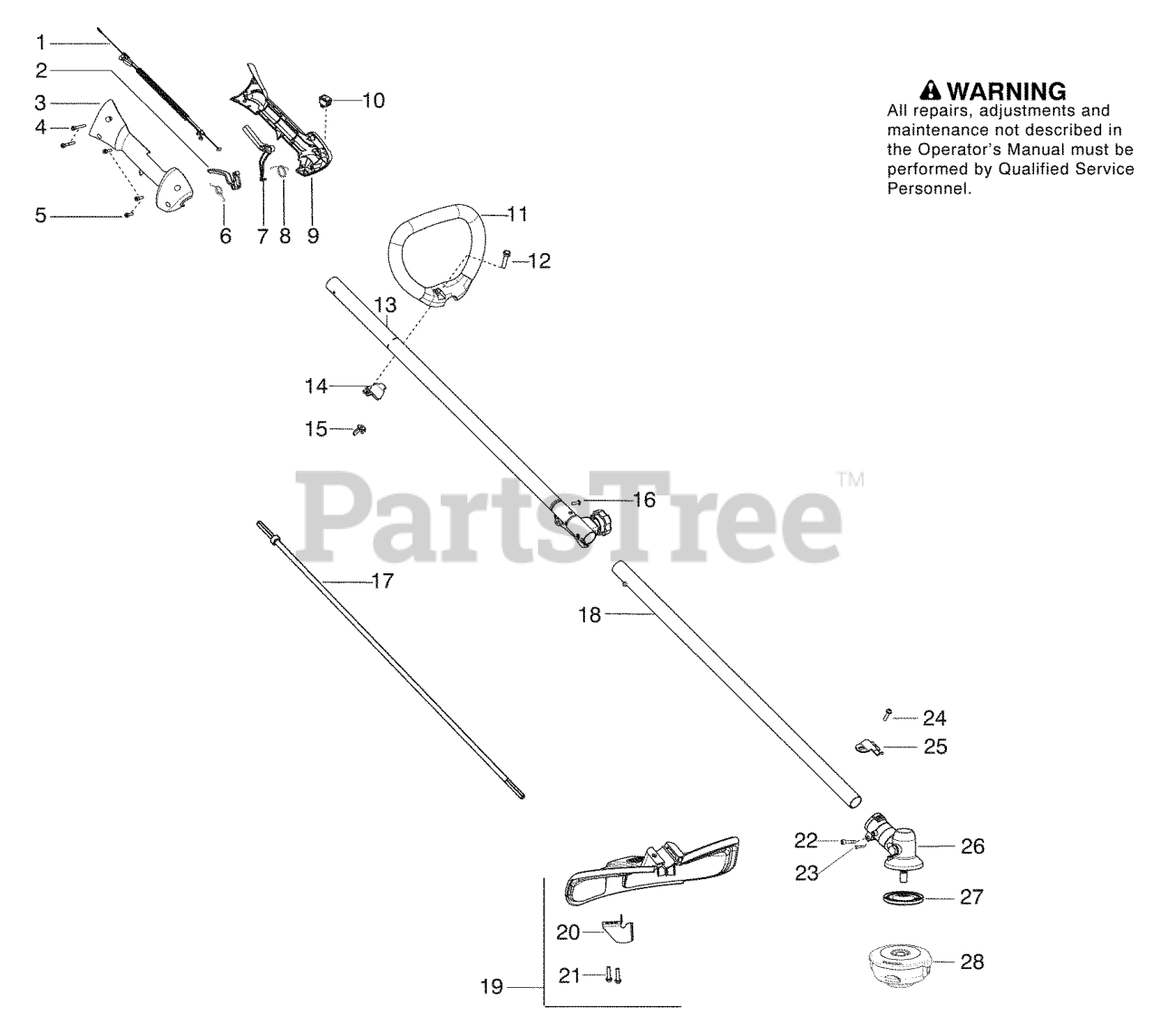

128 LD (545192138) - Husqvarna String Trimmer (2009-03) Repair Parts Parts Diagram

String Trimmer

Repair Parts Parts Diagram

  • Title

1

Husqvarna 530150253

Filter

$3.49

$

In Stock, Qty 20+

0

2

Husqvarna 530016101

Nut - Carb. Screw

$4.99

$

In Stock, Qty 14

0

3

Husqvarna 530057844

Lever - Choke

$6.99

$

In Stock, Qty 14

0

4

Husqvarna 530058709

Bulb - Purge

$7.99

$

In Stock, Qty 13

0

5

Husqvarna 545008086

Kit - Carb. Gasket

Note: (Incl. 7,62)

$13.99

$

In Stock, only 2 left!

0

6

Husqvarna 530035596

Adaptor - Carb.

$9.49

$

In Stock, only 4 left!

0

7

Husqvarna 545008084

Foam – Gasket

Note: (kit)

$22.99

$

In Stock, only 1 left!

0

8

Husqvarna 530016400

Bolt

$3.49

$

In Stock, only 2 left!

0

9

Husqvarna 952030201

Plug - Spark (RCJ-8Y)
(Superseded to 503235112)

$3.99

$

Usually ships in 3-10 days

0

10

Seal – Cylinder

Note: (kit)

$

$

Not available

11

Husqvarna 545008084

Seal – Crankshaft

Note: (kit)

$22.99

$

In Stock, only 1 left!

0

12

Assy - Starter Pawl

$

$

Not available

13

Husqvarna 530095646

Assy - Fuel Filter

$6.99

$

In Stock, Qty 20+

0

14

Kit - Fuel Line

Note: (Incl. 15)

$

$

Not available

15

Husqvarna 530150350

Fitting - Fuel line
(Superseded to 578931503)

$9.49

$

In Stock, Qty 12

0

16

Husqvarna 545008084

Assy - Cap w/ret.

Note: (Incl. 17)

$22.99

$

In Stock, only 1 left!

0

17

Husqvarna 530059780

O-ring - Fuel Cap

Note: (kit)

$5.99

$

Usually ships in 3-10 days

0

18

Isolator - Fuel Tank

$

$

Not available

19

Kit - Fuel Tank Assy.

Note: Incl. 13,14,15,16,17,18)

$

$

Not available

20

Husqvarna 530057851

Shroud - Rear
(Superseded to 576153201)

$13.99

$

In Stock, only 3 left!

0

21

Husqvarna 530016448

Screw

$3.49

$

In Stock, Qty 12

0

22

Kit - Rope

$

$

Not available

23

Handle - Starter

$

$

Not available

24

Husqvarna 530016426

Screw

$4.99

$

In Stock, Qty 11

0

25

Hsg. - Starter w/eyelet

$

$

Not available

26

Kit - Spring

$

$

Not available

27

Kit - Starter Pulley

$

$

Not available

28

Pulley-Driver

$

$

Not available

29

Husqvarna 530016468

Screw

$3.49

$

In Stock, Qty 5

0

30

Assy - Starter Hsg.

Note: (Incl. 22,23,25,26,27,28,29)

$

$

Not available

31

Husqvarna 530058982

Bolt - Muffler

$3.49

$

In Stock, Qty 5

0

32

Husqvarna 530015241

Screw
(Superseded to 545227101)

$3.49

$

In Stock, Qty 20+

0

33

Husqvarna 530150440

Shield - Heat

$6.99

$

In Stock, only 1 left!

0

34

Husqvarna 530016449

Screw

$3.49

$

In Stock, Qty 20+

0

35

Husqvarna 545104901

Guard - Muffler
(Superseded to 576215001)

$17.99

$

In Stock, Qty 11

0

36

Husqvarna 545030501

Kit - Spark

Note: (Incl. 32)

$7.99

$

In Stock, only 1 left!

0

37

Husqvarna 545057501

Assy - Muffler
(Superseded to 574031502)

$43.99

$

In Stock, only 3 left!

0

38

Husqvarna 545008084

Gasket - Paper Met.

Note: (kit)

$22.99

$

In Stock, only 1 left!

0

39

Husqvarna 530015897

Screw

$3.49

$

In Stock, Qty 19

0

40

Husqvarna 545046701

Module

$62.99

$

In Stock, only 2 left!

0

41

Husqvarna 530039227

Assy - Leadwire

$7.99

$

In Stock, only 2 left!

0

42

Husqvarna 530016456

Screw

$3.49

$

In Stock, only 2 left!

0

43

Husqvarna 530016463

Washer

$4.99

$

In Stock, only 3 left!

0

44

Husqvarna 530094189

Washer - Clutch

$6.99

$

In Stock, Qty 8

0

45

Husqvarna 545173401

Bearing - Thrust

$7.99

$

In Stock, Qty 8

0

46

Husqvarna 530016420

Washer - Thrust

$3.49

$

In Stock, Qty 7

0

47

Husqvarna 530016469

Screw

$4.99

$

In Stock, only 1 left!

0

48

Husqvarna 530016470

Screw

$

$

Not available

49

Husqvarna 530015768

Nut

$3.49

$

In Stock, Qty 12

0

50

Husqvarna 530016456

Screw

$3.49

$

In Stock, only 2 left!

0

51

Husqvarna 545017501

Assy - Fan Housing

$

$

Not available

52

Husqvarna 530150039

Assy - Clutch Drum
(Superseded to 587126401)

$31.99

$

Usually ships in 3-10 days

0

53

Husqvarna 530055122

Assy - Clutch Assy

$22.99

$

In Stock, Qty 9

0

54

Husqvarna 530057852

Spacer

$11.99

$

In Stock, only 2 left!

0

55

Husqvarna 530039242

Flywheel

$37.99

$

Usually ships in 3-10 days

0

56

Crankcase - Cast

$

$

Not available

57

Husqvarna 545013401

Bearing

$6.99

$

Usually ships in 3-10 days

0

58

Assy - Crankshaft

$

$

Not available

59

Husqvarna 530015162

Retainer - Piston Pin

$3.49

$

In Stock, only 2 left!

0

60

Husqvarna 530019283

Ring - Piston
(Superseded to 575227901)

$6.99

$

In Stock, Qty 6

0

61

Kit - Piston/Cyl.

Note: (Incl. 59,60)

$

$

Not available

62

Husqvarna 545008084

Seal – adaptor

Note: (kit)

$22.99

$

In Stock, only 1 left!

0

63

Husqvarna 530015897

Screw

$3.49

$

In Stock, Qty 19

0

64

Husqvarna 545081850

Kit - Carb.

Note: (Incl. 3,4,5)

$

$

Not available

65

Husqvarna 545084601

Airbox
(Superseded to 576459001)

$7.99

$

In Stock, Qty 6

0

66

Husqvarna 530057846

Cover - Air Box

$9.49

$

In Stock, only 2 left!

0

67

Husqvarna 530059796

Assy - Knob

$5.99

$

In Stock, Qty 6

0

68

Husqvarna 545008084

Kit - Gasket

Note: (Incl. 5,7,10,11,17,38,62)

$22.99

$

In Stock, only 1 left!

0

69

Husqvarna 545003321

Kit - Decal

$5.99

$

In Stock, only 1 left!

0
