128 LD (952711953) - Husqvarna String Trimmer SHAFT & HANDLE Parts Diagram

String Trimmer

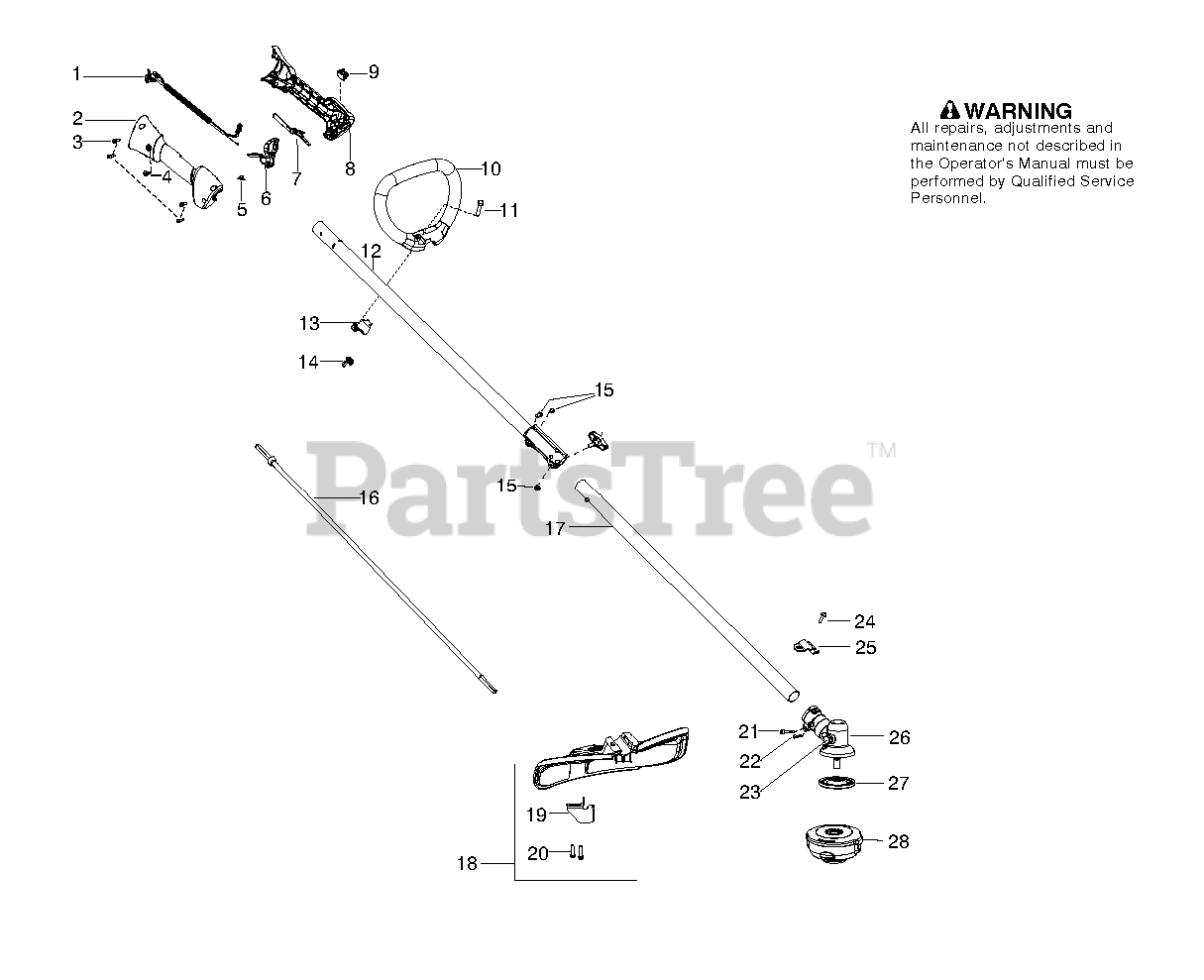

SHAFT & HANDLE Parts Diagram

  • Title

27

Husqvarna 537234901

DRIVE DISC

$33.99

$

In Stock, only 2 left!

0

19

Husqvarna 530052286

Limiter - Line

$

$

Not available

6

Husqvarna 574355301

TRIGGER THROTTLE HVA ORANGE

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$5.99

$

In Stock, Qty 18

0

28

Husqvarna 537338306

T25 TRIM HEAD 10MM LH
(Superseded to 537338310)

$33.99

$

In Stock, Qty 20+

0

15

Husqvarna 575291801

ASSY COUPLER BLACK
(Superseded to 587119302)

$7.49

$

In Stock, Qty 5

0

17

Husqvarna 545180848

KIT LOWER SHAFT

Note: LOWER DRIVESHAFT

$59.99

$

Usually ships in 3-10 days

0

4

Husqvarna 530015805

SCREW-10-14 X 1/2 PLASTITE

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$3.99

$

In Stock, Qty 17

0

12

Husqvarna 575261201

KIT UPPER SHAFT SILVER

Note: UPPER DRIVESHAFT

$45.99

$

Usually ships in 3-10 days

0

10

Husqvarna 545042201

HANDLE

$21.99

$

In Stock, only 2 left!

0

21

Husqvarna 530016014

SCREW - CARB. ADAPTOR

$3.99

$

In Stock, only 2 left!

0

24

Husqvarna 530015771

SCREW 1/4-20 X 7/8 (TAP

$3.99

$

In Stock, only 2 left!

0

8

Husqvarna 545223201

HSG THROTTLE LEFT HVA

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$7.49

$

In Stock, Qty 16

0

5

Husqvarna 530016454

SPRING TRIGGER

$5.99

$

In Stock, Qty 10

0

18

Husqvarna 545030901

KIT COBI SHIELD

$33.99

$

In Stock, only 4 left!

0

26

Husqvarna 530096295

ASSY GEARBOX

$43.99

$

In Stock, only 1 left!

0

20

Husqvarna 530015814

SCREW

$3.49

$

In Stock, Qty 5

0

3

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$3.99

$

In Stock, only 3 left!

0

7

Husqvarna 574355401

THROTTLE LOCKOUT HVA ORANGE

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$5.99

$

In Stock, Qty 5

0

25

Husqvarna 530057554

BRACKET SHIELD STRAIGHT SHAFT

Note: SHIELD BRACKET

$7.49

$

In Stock, only 3 left!

0

11

Husqvarna 530015820

BOLT, TYPE 2

$2.49

$

In Stock, Qty 10

0

9

Husqvarna 545049309

SWITCH
(Superseded to 545049311)

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$7.49

$

In Stock, only 4 left!

0

1

Husqvarna 576139401

ASSY CABLE / WIRE HARNESS

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$11.99

$

In Stock, only 2 left!

0

16

Husqvarna 545132002

FLEXSHAFT

$5.99

$

In Stock, Qty 8

0

22

Husqvarna 530016301

SCREW

$3.99

$

In Stock, only 2 left!

0

14

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$

$

Not available

23

Husqvarna 575724601

PLUG GREASE 9MM

$3.99

$

In Stock, only 1 left!

0

13

Husqvarna 530059185

CLAMP ASSIST HANDLE

$4.99

$

In Stock, Qty 5

0

2

Husqvarna 545223001

HSG THROTTLE RIGHT HVA

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$13.99

$

In Stock, Qty 10

0
