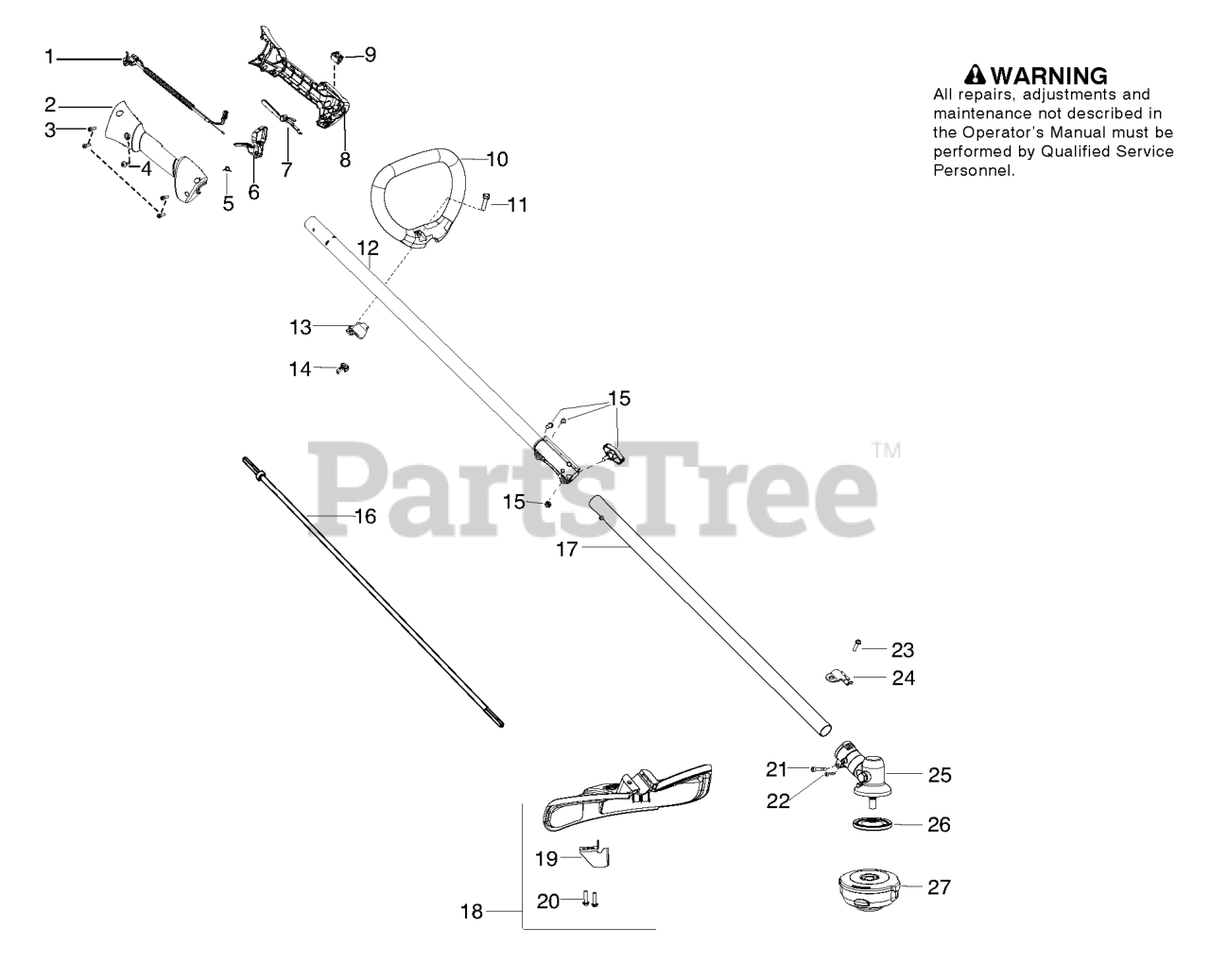

128 LD - Husqvarna String Trimmer (2010-03) Shaft and Handle Parts Diagram

String Trimmer

Shaft and Handle Parts Diagram

  • Title

1

Assy - Cable/Wire Harness

Note: New Part Number For This IPL<BR>Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

2

Housing - Throttle (RH)

Note: New Part Number For This IPL<BR>Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

3

Screw

Note: New Part Number For This IPL<BR>Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

4

Screw

Note: New Part Number For This IPL<BR>Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

5

Husqvarna 530016454

SPRING TRIGGER

$5.99

$

In Stock, Qty 20+

0

6

Trigger

Note: New Part Number For This IPL<BR>Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

7

Lockout - Throttle

Note: New Part Number For This IPL<BR>Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

8

Housing - Throttle (LH)

Note: New Part Number For This IPL<BR>Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

9

Kit - Switch

Note: New Part Number For This IPL<BR>Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

10

Husqvarna 545042201

HANDLE

$20.99

$

In Stock, Qty 5

0

11

Husqvarna 530015820

BOLT, TYPE 2

$4.99

$

In Stock, Qty 11

0

12

Husqvarna 575261201

KIT UPPER SHAFT SILVER

Note: (Incl. 15, & flex) New Part Number For This IPL

$43.99

$

Usually ships in 3-10 days

0

13

Husqvarna 530059185

CLAMP ASSIST HANDLE

$4.99

$

In Stock, Qty 7

0

14

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, Qty 8

0

15

Husqvarna 575291801

ASSY COUPLER BLACK
(Superseded to 587119302)

Note: New Part Number For This IPL

$6.99

$

In Stock, Qty 7

0

16

Husqvarna 545132002

FLEXSHAFT

$5.99

$

In Stock, Qty 8

0

17

Husqvarna 545180848

KIT LOWER SHAFT

$26.99

$

Usually ships in 3-10 days

0

18

Husqvarna 545030901

KIT COBI SHIELD

Note: (Incl. 19,20,23)

$31.99

$

In Stock, Qty 5

0

19

Husqvarna 530052286

Limiter - Line

$

$

Not available

20

Husqvarna 530015814

SCREW

$3.49

$

In Stock, Qty 6

0

21

Husqvarna 530016014

SCREW - CARB. ADAPTOR

$3.49

$

In Stock, only 2 left!

0

22

Husqvarna 530016301

SCREW

$3.49

$

In Stock, only 2 left!

0

23

Husqvarna 530015771

SCREW 1/4-20 X 7/8 (TAP

$3.49

$

In Stock, only 4 left!

0

24

Husqvarna 530057554

BRACKET SHIELD STRAIGHT SHAFT

$6.99

$

In Stock, Qty 5

0

25

Husqvarna 530096295

ASSY GEARBOX

$43.99

$

In Stock, only 1 left!

0

26

Husqvarna 537234901

DRIVE DISC

$26.99

$

In Stock, Qty 7

0

27

Husqvarna 537338306

T25 TRIM HEAD 10MM LH
(Superseded to 537338310)

$31.99

$

In Stock, Qty 20+

0

Husqvarna 115275126

MANUAL OPERATORS

Note: Not Shown New Part Number For This IPL

$

$

Not available

Husqvarna 530031159

HEX WRENCH 5/32

Note: Not Shown

$3.49

$

In Stock, only 1 left!

0
