128 LD - Husqvarna String Trimmer (2010-03) Shaft and Handle Parts Diagram

String Trimmer

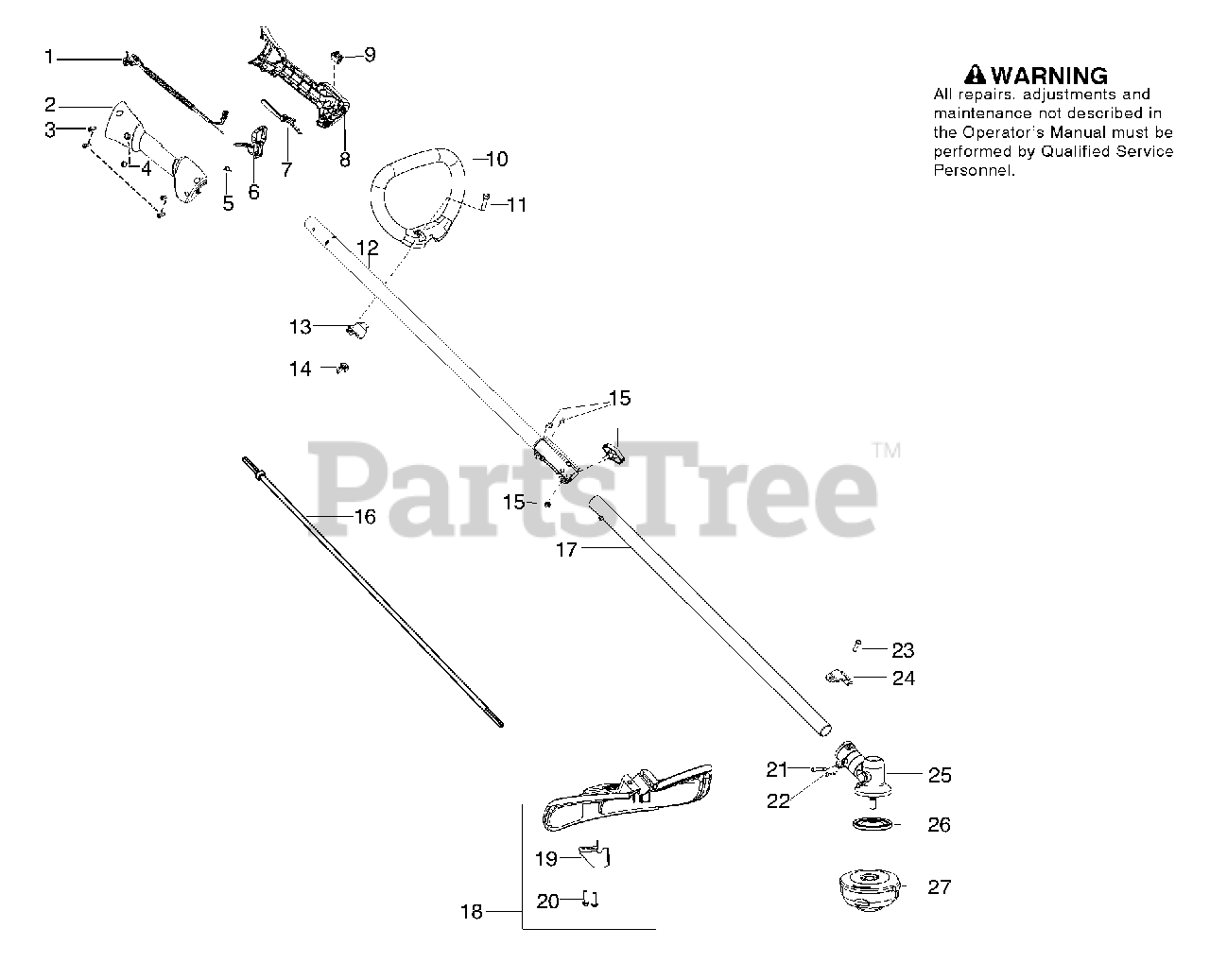

Shaft and Handle Parts Diagram

  • Title

1

Assy - Cable/Wire Harness

$

$

Not available

2

Housing - Throttle (RH)

$

$

Not available

3

Screw

$

$

Not available

4

Screw

$

$

Not available

5

Husqvarna 530016454

Spring - Trigger

$6.49

$

In Stock, only 2 left!

0

6

Trigger

$

$

Not available

7

Lockout - Throttle

$

$

Not available

8

Housing - Throttle (LH)

$

$

Not available

9

Kit - Switch

$

$

Not available

10

Husqvarna 545042201

Handle - Assist

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 575261201

Kit - Driveshaft Upper

Note: (Incl. 15, & flex)

$47.99

$

In Stock, Qty 9

0

13

Husqvarna 530059185

Clamp - Handle Assist

$6.49

$

In Stock, only 2 left!

0

14

Husqvarna 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

15

Husqvarna 575291801

Kit -Knob / Screw
(Superseded to 587119302)

$8.99

$

In Stock, Qty 10

0

16

Husqvarna 545132002

Flexshaft

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 545180848

Kit - Lower Shaft

$40.99

$

In Stock, only 3 left!

0

18

Husqvarna 545030901

Kit - Shield

Note: (Incl. 19,20,23)

$34.99

$

In Stock, Qty 12

0

19

Husqvarna 530052286

Limiter - Line

$

$

Not available

20

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

21

Husqvarna 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

22

Husqvarna 530016301

Screw

$6.49

$

In Stock, only 4 left!

0

23

Husqvarna 530015771

Screw

$6.49

$

In Stock, Qty 6

0

24

Husqvarna 530057554

Bracket - Shield

$6.49

$

In Stock, Qty 11

0

25

Husqvarna 530096295

Assy - Gearbox

$80.99

$

In Stock, Qty 10

0

26

Husqvarna 537234901

Driver Disc

$40.99

$

In Stock, only 4 left!

0

27

Husqvarna 537338306

Assy - T25 Cutting Head
(Superseded to 537338310)

$30.99

$

In Stock, Qty 20+

0

Husqvarna 115275126

Manual

Note: Not Shown

$

$

Not available

Husqvarna 530031159

Wrench - Hex (5/32")

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0
