128 LDX - Husqvarna String Trimmer (2010-03) Shaft & Handle Parts Diagram

String Trimmer

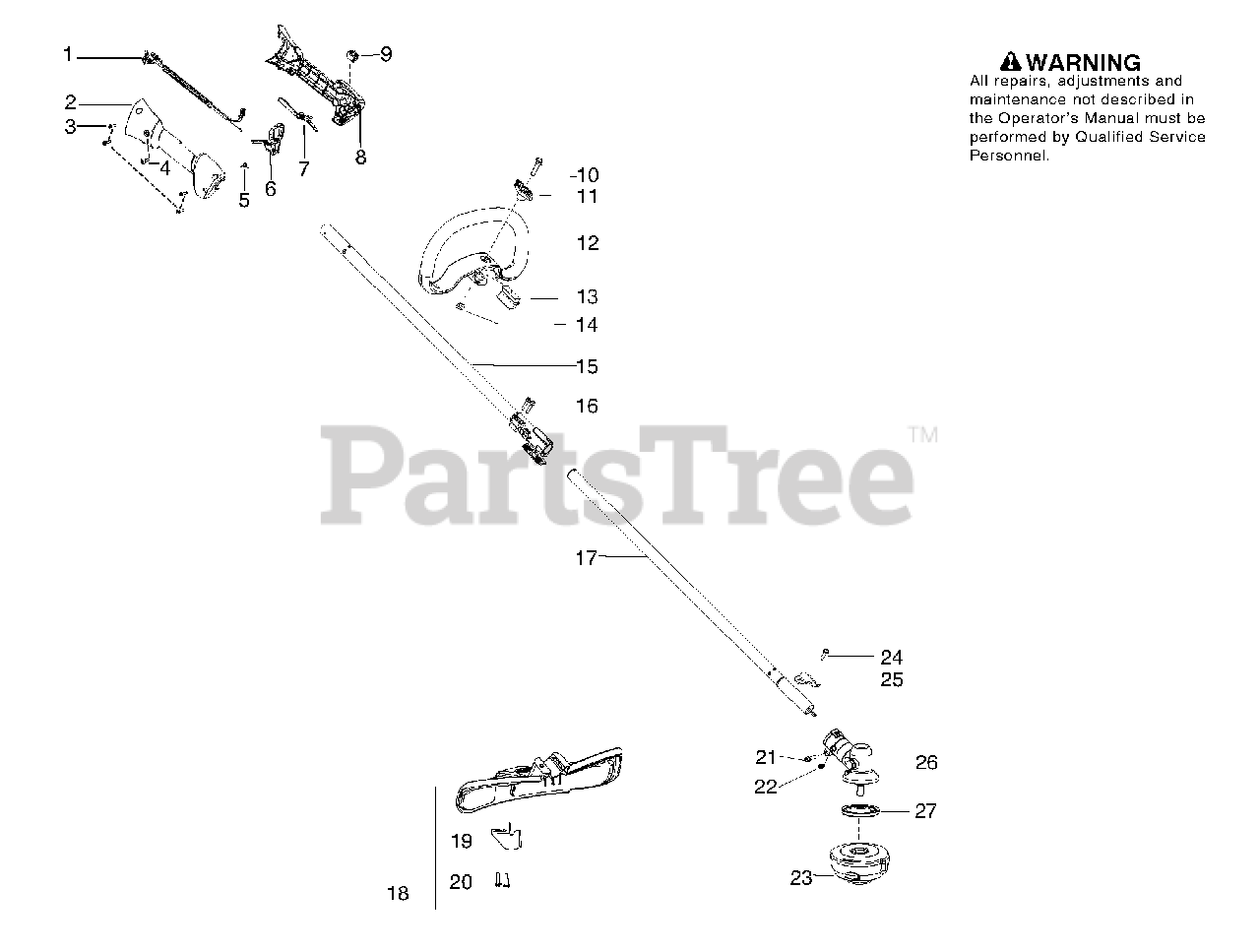

Shaft & Handle Parts Diagram

  • Title

1

Assy-Cable/Wire Harness

$

$

Not available

2

Housing-Throttle (RH)

$

$

Not available

3

Screw

$

$

Not available

4

Screw

$

$

Not available

5

Husqvarna 530016454

Spring-Trigger

$6.49

$

In Stock, only 2 left!

0

6

Trigger

$

$

Not available

7

Lockout-Throttle

$

$

Not available

8

Housing-Throttle (LH)

$

$

Not available

9

Kit-Switch

$

$

Not available

10

Husqvarna 725238151

Screw

$6.99

$

In Stock, only 2 left!

0

11

Husqvarna 503879001

Knob

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 545144303

Assy - Loop Handle
(Superseded to 545180809)

$22.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503940301

Spacer

$7.99

$

In Stock, only 1 left!

0

14

Husqvarna 502197101

Nut - Square M6

$8.99

$

In Stock, only 2 left!

0

15

Husqvarna 545006074

Kit-Driveshaft Upper

Note: (Incl. 16, & flex)

$120.99

$

In Stock, Qty 6

0

16

Husqvarna 503200725

Screw

$4.99

$

In Stock, Qty 11

0

17

Husqvarna 545180849

Kit-Lower Shaft

Note: (incl. flex,21,22,25,26

$120.99

$

In Stock, only 3 left!

0

18

Husqvarna 545030901

Kit-Shield

Note: (Incl. 19,20,24)

$34.99

$

In Stock, Qty 11

0

19

Husqvarna 530052286

Limiter-Line

$

$

Not available

20

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

21

Husqvarna 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

22

Husqvarna 545003902

Screw

$4.99

$

In Stock, Qty 7

0

23

Husqvarna 537338306

Assy-T25 Cutting Head
(Superseded to 537338310)

$30.99

$

In Stock, Qty 20+

0

24

Husqvarna 530015771

Screw

$6.49

$

In Stock, Qty 6

0

25

Husqvarna 530057554

Bracket-Shield

$6.49

$

In Stock, Qty 11

0

26

Husqvarna 530096295

Assy-Gearbox

$80.99

$

In Stock, Qty 10

0

27

Husqvarna 537234901

Driver Disc

$40.99

$

In Stock, only 2 left!

0

Husqvarna 545196749

Manual

Note: Not Shown

$

$

Not available

Husqvarna 530031159

Wrench-Hex (5/32")

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0
