128 PS - Husqvarna Pole Saw ENGINE Parts Diagram

Pole Saw

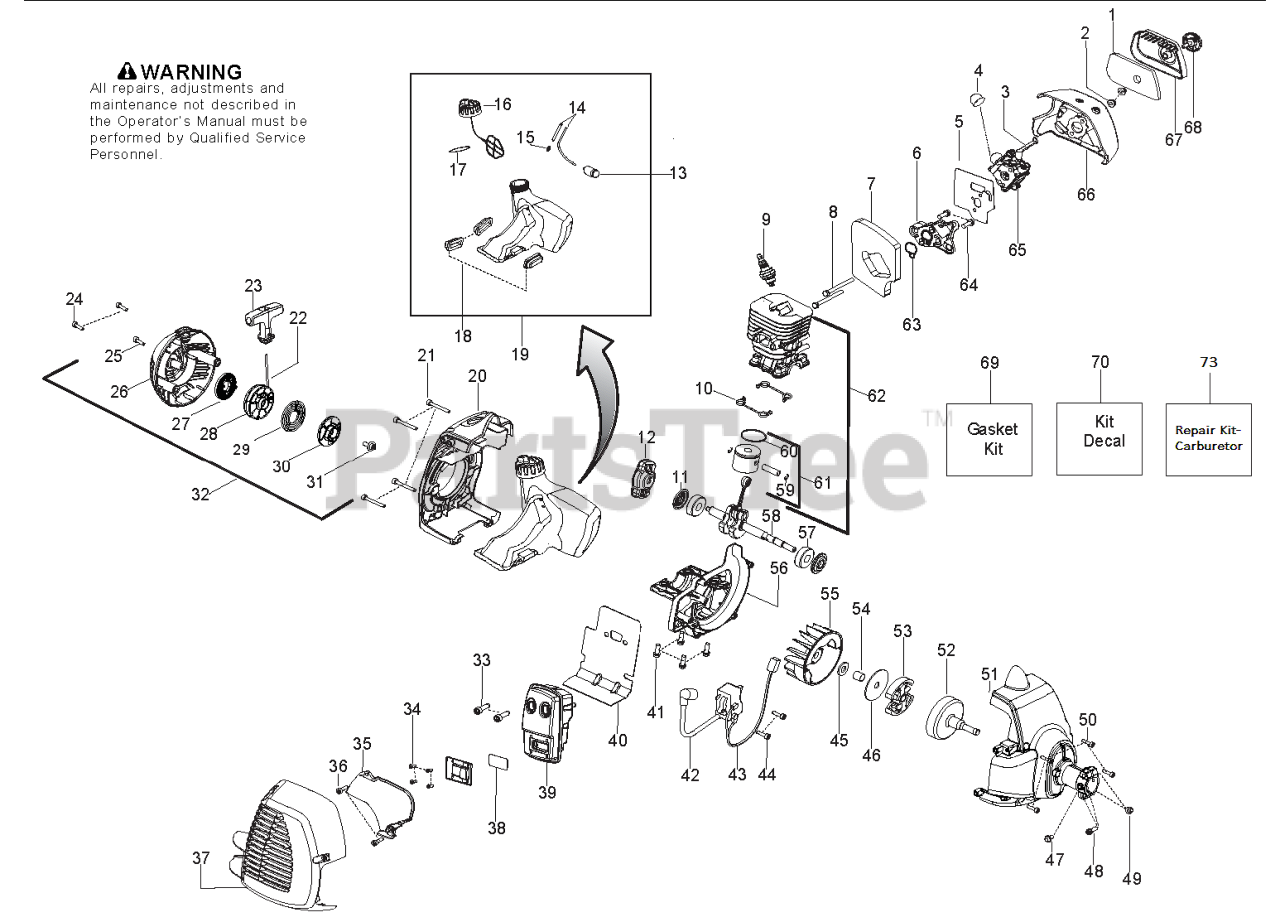

ENGINE Parts Diagram

  • Title

2

Husqvarna 530016101

NUT

$6.49

$

In Stock, Qty 8

0

33

Husqvarna 530058982

BOLT MUFFLER

$4.99

$

In Stock, Qty 12

0

3

Husqvarna 595015001

CHOKE LEVER

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 545008079

KIT ROPE

$10.99

$

In Stock, only 1 left!

0

50

Husqvarna 530016456

SCREW M4 X .70 TT 16MM

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 578465101

DRIVER SPRING

$4.99

$

In Stock, Qty 11

0

5

Husqvarna 545008084

KIT GASKET 28CC

$26.99

$

In Stock, Qty 5

0

66

Husqvarna 576459001

AIRBOX HVA 128 HUSKY GRAY

$6.49

$

In Stock, Qty 5

0

12

Husqvarna 503873305

STARTER PAWL BRIDGE

$26.99

$

In Stock, Qty 20+

0

11

Husqvarna 545008084

KIT GASKET 28CC

$26.99

$

In Stock, Qty 5

0

17

Husqvarna 545008084

KIT GASKET 28CC

$26.99

$

In Stock, Qty 5

0

32

Husqvarna 579063101

ASSY STARTER HSG HVA

$25.99

$

In Stock, Qty 20+

0

10

Husqvarna 545008084

KIT GASKET 28CC

$26.99

$

In Stock, Qty 5

0

52

Husqvarna 580446601

KIT DRUM CLUTCH ASSY

$29.99

$

In Stock, only 2 left!

0

43

Husqvarna 530039227

ASSY MODULE LEAD WIRE

$8.99

$

In Stock, Qty 8

0

59

Husqvarna 530015162

WRIST PIN RET.

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 545046701

IGNITION MODULE MBU-7

$53.99

$

In Stock, Qty 16

0

36

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, Qty 20+

0

8

Husqvarna 530016400

BOLT CARB ADAPTOR

$6.49

$

In Stock, only 4 left!

0

4

Husqvarna 530058709

PURGE BULB ZAMA

$7.49

$

In Stock, Qty 18

0

26

Husqvarna 525455501

HOUSING STARTER

$10.99

$

In Stock, only 1 left!

0

49

Husqvarna 530015768

LOCKNUT-HEX 10-24

$6.49

$

In Stock, only 2 left!

0

38

Husqvarna 545030501

KIT SPARK ARRESTOR SCREEN

$8.99

$

In Stock, only 3 left!

0

69

Husqvarna 545008084

KIT GASKET 28CC

Note: Includes 5,7,10,11,17,40,63,69

$26.99

$

In Stock, Qty 5

0

48

Husqvarna 530015774

SCREW-10-24 X 1" (UNC)

$6.49

$

In Stock, only 3 left!

0

45

Husqvarna 530016463

WASHER CLUTCH

$4.99

$

In Stock, only 4 left!

0

15

Husqvarna 530023877

FUEL LINE FITTING

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 530069599

KIT-LINE(FUEL)

$7.49

$

In Stock, Qty 20+

0

37

Husqvarna 576215001

KIT MUFFLER GUARD HVA

$10.99

$

In Stock, Qty 15

0

44

Husqvarna 530016456

SCREW M4 X .70 TT 16MM

$6.49

$

In Stock, only 2 left!

0

53

Husqvarna 530055122

ASSEMBLY CLUTCH

$13.99

$

In Stock, only 4 left!

0

31

Husqvarna 530016468

SCREW

$6.49

$

In Stock, Qty 7

0

39

Husqvarna 574031502

KIT MUFFLER W/CATALYST

$40.99

$

In Stock, only 1 left!

0

40

Husqvarna 545008084

KIT GASKET 28CC

$26.99

$

In Stock, Qty 5

0

64

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

$6.49

$

In Stock, Qty 19

0

1

Husqvarna 530150253

FILTER AIRBOX

$3.99

$

In Stock, Qty 20+

0

61

Husqvarna 545081814

KIT - PISTON

$44.99

$

In Stock, only 1 left!

0

9

Husqvarna 503235112

BPMR6A NGK SPARK PLUG

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, Qty 20+

0

47

Husqvarna 530015805

SCREW-10-14 X 1/2 PLASTITE

$6.49

$

In Stock, only 1 left!

0

20

Husqvarna 576153201

REAR SHROUD ORANGE

$6.49

$

In Stock, only 4 left!

0

24

Husqvarna 530016426

SCREW M5-0.8X30MM

$6.49

$

In Stock, Qty 20+

0

67

Husqvarna 530057846

COVER-AIR BOX

$8.99

$

In Stock, Qty 20+

0

7

Husqvarna 545008084

KIT GASKET 28CC

$26.99

$

In Stock, Qty 5

0

35

Husqvarna 530150440

SHIELD HEAT

$8.99

$

In Stock, only 1 left!

0

30

Husqvarna 579366201

PULLEY STARTER DRIVE

$4.99

$

In Stock, only 4 left!

0

46

Husqvarna 530094189

WASHER-CLUTCH

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 545008083

KIT PISTON CYL

$100.99

$

Usually ships in 3-10 days

0

55

Husqvarna 530039242

FLYWHEEL

$44.99

$

In Stock, only 1 left!

0

19

Husqvarna 545180870

KIT FUEL TANK HVA

$44.99

$

In Stock, Qty 9

0

70

Husqvarna 545003352

KIT DECAL

$5.99

$

Usually ships in 3-10 days

0

58

Husqvarna 585415401

CRANKSHAFT

$47.99

$

Usually ships in 3-10 days

0

6

Husqvarna 530035596

CARB ADAPTOR

$12.99

$

In Stock, only 2 left!

0

16

Husqvarna 578931503

FUEL CAP ASSY

$7.49

$

In Stock, Qty 20+

0

41

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

$6.49

$

In Stock, Qty 19

0

63

Husqvarna 545008084

KIT GASKET 28CC

$26.99

$

In Stock, Qty 5

0

51

Husqvarna 545205201

ASSY FAN HOUSING HVA 1"

$24.99

$

In Stock, only 1 left!

0

28

Husqvarna 585530301

KIT PULLEY/SPRING

$9.99

$

In Stock, Qty 14

0

27

Husqvarna 545008087

KIT STARTER SPRING

$8.99

$

Usually ships in 3-10 days

0

54

Husqvarna 530057852

SPACER FLYWHEEL

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 577167201

ASSY FUEL PICKUP PRE FLUSHED

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 530059780

ISOLATOR FUEL TANK

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 530059796

KNOB ASSY AIRBOX COVER

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 545043204

STARTER HANDLE

$7.49

$

In Stock, only 4 left!

0

65

Husqvarna 545081848

KIT CARB

$44.99

$

In Stock, Qty 20+

0

56

Husqvarna 577929502

CRANKCASE CAST 128

$34.99

$

Usually ships in 3-10 days

0

57

Husqvarna 545013401

BEARING RADIAL BALL (6201)

$10.99

$

In Stock, Qty 5

0

60

Husqvarna 575227901

RING PISTON

$7.49

$

In Stock, Qty 17

0

73

Husqvarna 599604201

Gaskets

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 545227101

SCREW 6-19X.437

$4.99

$

In Stock, Qty 7

0

21

Husqvarna 530016448

SCREW

$6.49

$

In Stock, Qty 20+

0
