128 R - Husqvarna Brush Cutter, Canada (2009-09) Handle & Controls Parts Diagram

Brush Cutter, Canada

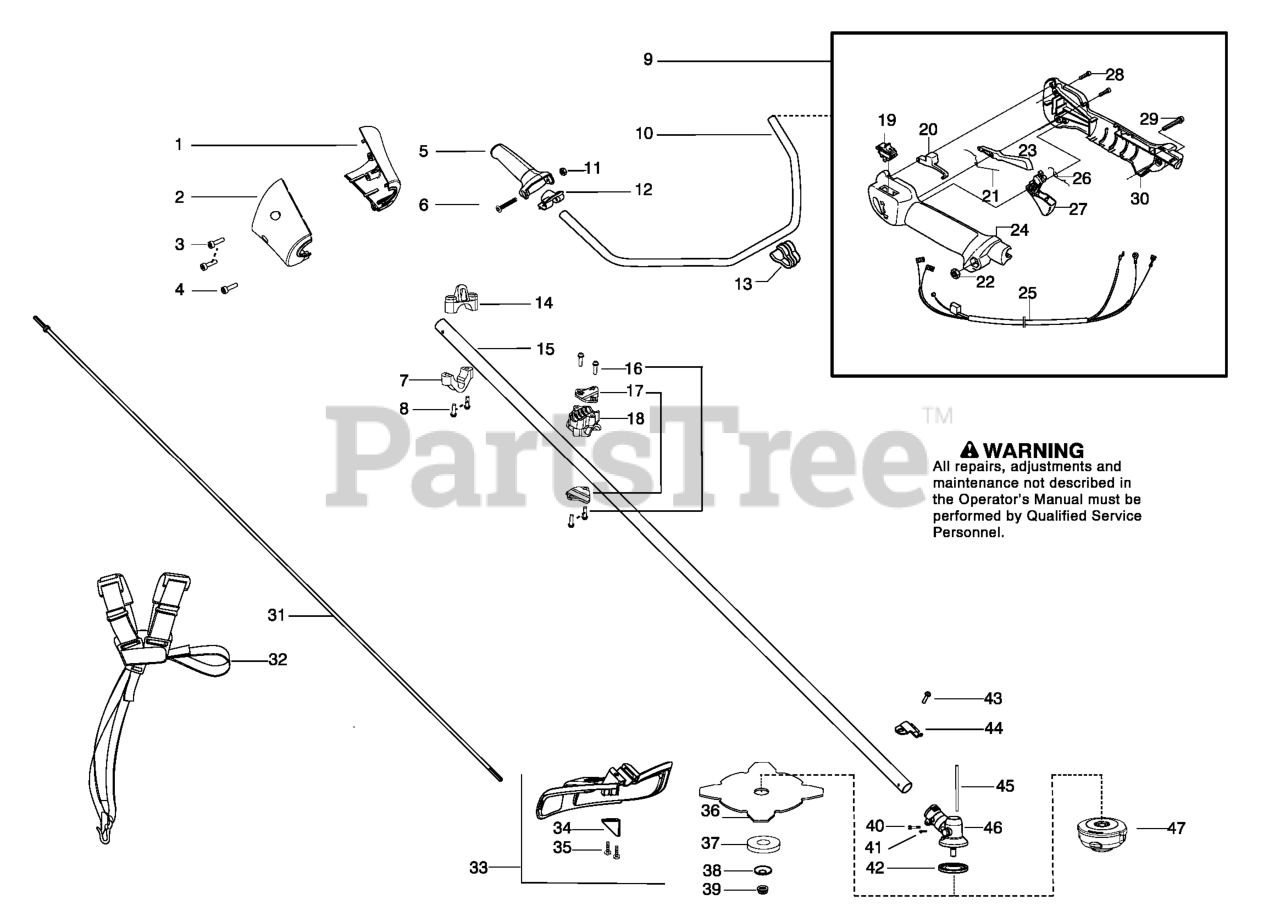

Handle & Controls Parts Diagram

  • Title

1

Husqvarna 545036401

NOSE CONE BH LEFT

$

$

Not available

2

Husqvarna 545036501

NOSE CONE BH RIGHT

$

$

Not available

3

Husqvarna 530016448

SCREW

$3.49

$

In Stock, only 2 left!

0

4

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

$3.49

$

In Stock, Qty 14

0

5

Husqvarna 537172802

HANDLE

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503200245

SCREW

$3.49

$

In Stock, only 1 left!

0

7

Husqvarna 545056601

CLAMP HARNESS LOWER

Note: (lower)

$4.99

$

In Stock, only 2 left!

0

8

Husqvarna 530015940

SCREW

$3.49

$

In Stock, only 2 left!

0

9

Husqvarna 545125501

ASSY THROTTLE HOUSING

Note: (Incl. 19,20,21,22,23, 24,25,26,27,28,29,30)

$62.99

$

Usually ships in 3-10 days

0

10

Husqvarna 502199503

HANDLE

$37.99

$

Usually ships in 3-10 days

0

11

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

12

Husqvarna 537172901

BRACKET

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 502211201

GROMMET

$3.49

$

In Stock, only 2 left!

0

14

Husqvarna 545113301

CLAMP HARNESS UPPER

Note: (upper)

$5.99

$

In Stock, only 2 left!

0

15

Husqvarna 545180805

KIT-DRIVESHAFT(INCL. 40.41.44.

Note: (Incl. 40,41,44,46)

$

$

Not available

16

Husqvarna 530015814

SCREW

$3.49

$

In Stock, Qty 6

0

17

Husqvarna 530058563

CLAMP BRACKET

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 545058501

CLAMP

$13.99

$

Usually ships in 3-10 days

0

19

Husqvarna 537419001

STOP BUTTON

$9.49

$

In Stock, Qty 20+

0

20

Husqvarna 537160701

LOCKOUT STARTER THROTTLE
(Superseded to 537160703)

$5.99

$

In Stock, only 1 left!

0

21

Husqvarna 537174301

SPRING

$3.49

$

In Stock, Qty 6

0

22

Husqvarna 503221013

NUT

$3.49

$

In Stock, Qty 20+

0

23

Husqvarna 506495101

THROTTLE LOCKOUT

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 537160203

HANDLE

$22.99

$

In Stock, only 1 left!

0

25

Assy - Cable Wire

Note: Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

26

Husqvarna 537174201

SPRING

$5.99

$

In Stock, Qty 20+

0

27

Husqvarna 506495001

THROTTLE CONTROL

$5.99

$

Usually ships in 3-10 days

0

28

Husqvarna 503216618

SCREW

$3.49

$

In Stock, Qty 6

0

29

Husqvarna 503200735

SCREW
(Superseded to 503200782)

$3.99

$

In Stock, only 2 left!

0

30

Husqvarna 537160301

HANDLE

$20.99

$

Usually ships in 3-10 days

0

31

Flexshaft

Note: Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

32

Husqvarna 537216301

HARNESS DUO

$

$

Not available

33

Husqvarna 545030901

KIT COBI SHIELD

Note: (Incl. 34,35)

$31.99

$

In Stock, Qty 5

0

34

Husqvarna 530052286

Limiter - Line

$

$

Not available

35

Husqvarna 530015814

SCREW

$3.49

$

In Stock, Qty 6

0

36

Husqvarna 537149604

Blade - Grass
(Superseded to 596278001)

$28.99

$

In Stock, only 1 left!

0

37

Husqvarna 503890101

SUPPORTING CUP

$17.99

$

In Stock, Qty 6

0

38

Husqvarna 537285601

SUPPORT FLANGE

$15.99

$

In Stock, Qty 8

0

39

Husqvarna 503856301

GEARHEAD NUT - BRUSHCUTTER

$7.99

$

In Stock, Qty 10

0

40

Husqvarna 530016014

SCREW - CARB. ADAPTOR

$3.49

$

In Stock, only 2 left!

0

41

Husqvarna 545003902

SCREW

$3.49

$

In Stock, Qty 6

0

42

Husqvarna 537234901

DRIVE DISC

$26.99

$

In Stock, Qty 8

0

43

Husqvarna 530015771

SCREW 1/4-20 X 7/8 (TAP

$3.49

$

In Stock, only 4 left!

0

44

Husqvarna 530057554

BRACKET SHIELD STRAIGHT SHAFT

$6.99

$

In Stock, Qty 6

0

45

Husqvarna 502285901

LOCKING PIN

$5.99

$

In Stock, only 2 left!

0

46

Husqvarna 530096295

ASSY GEARBOX

$43.99

$

In Stock, only 2 left!

0

47

Husqvarna 537338302

T25 10MM LH TRIMMER HEAD
(Superseded to 537338310)

$31.99

$

In Stock, Qty 20+

0

Husqvarna 545154124

MANUAL OPERATORS

Note: Not Shown

$

$

Not available

Husqvarna 545098601

DECAL SHAFT WARNING US

Note: Not Shown

$

$

Not available

Husqvarna 537312901

BLADE GUARD TRANSPORT

Note: Not Shown

$11.99

$

Usually ships in 3-10 days

0

Husqvarna 530031159

HEX WRENCH 5/32

Note: Not Shown

$3.49

$

In Stock, only 1 left!

0

Husqvarna 502114602

COMBI WRENCH
(Superseded to 501691701)

Note: Not Shown

$

$

Not available
