128 RJ - Husqvarna String Trimmer, Canada (2009-08) Handle & Controls Parts Diagram

String Trimmer, Canada

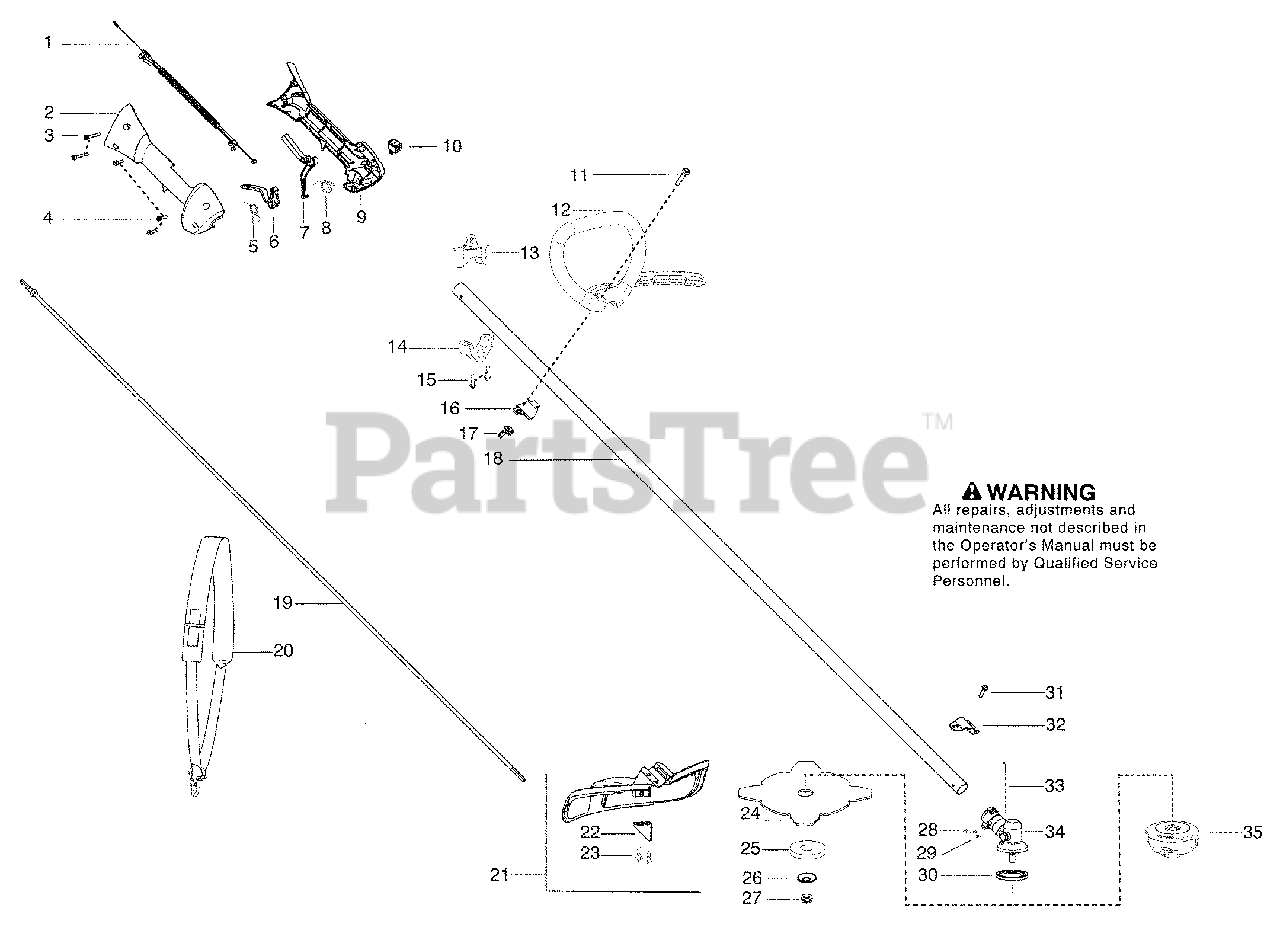

Handle & Controls Parts Diagram

  • Title

1

Husqvarna 545125301

Assy-Cable/Wire Harness

$37.99

$

In Stock, Qty 8

0

2

Husqvarna 545062001

Housing-Throttle - RH

$

$

Not available

3

Husqvarna 530016448

Screw

$6.49

$

In Stock, Qty 19

0

4

Husqvarna 530016449

Screw

$6.49

$

In Stock, Qty 20+

0

5

Husqvarna 530016454

Spring-Trigger

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 545066001

Trigger

$

$

Not available

7

Husqvarna 530059804

Lockout-Throttle

$6.49

$

In Stock, Qty 8

0

8

Husqvarna 545045601

Spring-Lockout

$6.49

$

In Stock, Qty 5

0

9

Husqvarna 545067001

Housing-Thottle - LH

$

$

Not available

10

Husqvarna 545030601

Kit-Switch
(Superseded to 545049301)

$9.99

$

In Stock, Qty 17

0

11

Husqvarna 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 545139701

Assy-Handle/J-Bar

$27.99

$

Usually ships in 3-10 days

0

13

Husqvarna 545113301

Clamp-Harness

Note: (upper)

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 545056601

Clamp-Harness

Note: (lower)

$4.99

$

In Stock, only 4 left!

0

15

Husqvarna 530015940

Screw

$6.49

$

In Stock, Qty 9

0

16

Husqvarna 530059185

Clamp - Handle

$6.49

$

In Stock, only 2 left!

0

17

Husqvarna 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

18

Husqvarna 545180852

Kit-Driveshaft

Note: (Incl. 28,29,32,34)

$

$

Not available

19

Husqvarna 545007507

Flexshaft

$34.99

$

In Stock, only 1 left!

0

20

Husqvarna 537216201

Harness-w/o warning
(Superseded to 537216202)

$10.99

$

In Stock, only 2 left!

0

21

Husqvarna 545030901

Kit-Shield

Note: (Incl. 22,23,31)

$34.99

$

In Stock, Qty 12

0

22

Husqvarna 530052286

Limiter - Line

$

$

Not available

23

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

24

Husqvarna 504001303

Blade - Grass
(Superseded to 596278001)

$36.99

$

Usually ships in 3-10 days

0

25

Husqvarna 503890101

Cup - Support

$26.99

$

Usually ships in 3-10 days

0

26

Husqvarna 537285601

Support - Flange

$15.99

$

In Stock, only 4 left!

0

27

Husqvarna 503856301

Locknut - Blade

$7.49

$

In Stock, Qty 5

0

28

Husqvarna 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

29

Husqvarna 545003902

Screw

$4.99

$

In Stock, Qty 7

0

30

Husqvarna 537234901

Driver Disc

$40.99

$

In Stock, only 3 left!

0

31

Husqvarna 530015771

Screw

$6.49

$

In Stock, Qty 6

0

32

Husqvarna 530057554

Bracket - Shield

$6.49

$

In Stock, Qty 11

0

33

Husqvarna 502285901

Pin - Locking

$8.99

$

In Stock, only 2 left!

0

34

Husqvarna 530096295

Assy - Gearbox

$80.99

$

In Stock, Qty 10

0

35

Husqvarna 537338306

Assy-T25 Cutting Head
(Superseded to 537338310)

$30.99

$

In Stock, Qty 20+

0

Husqvarna 545196739

Manual

Note: Not Shown

$

$

Not available

Husqvarna 537312901

Guard - Transport

Note: Not Shown

$12.99

$

Usually ships in 3-10 days

0

Husqvarna 530031159

Wrench-Hex

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0

Husqvarna 502114602

Wrench-Spark Plug
(Superseded to 530031146)

Note: Not Shown

$8.99

$

In Stock, Qty 20+

0
