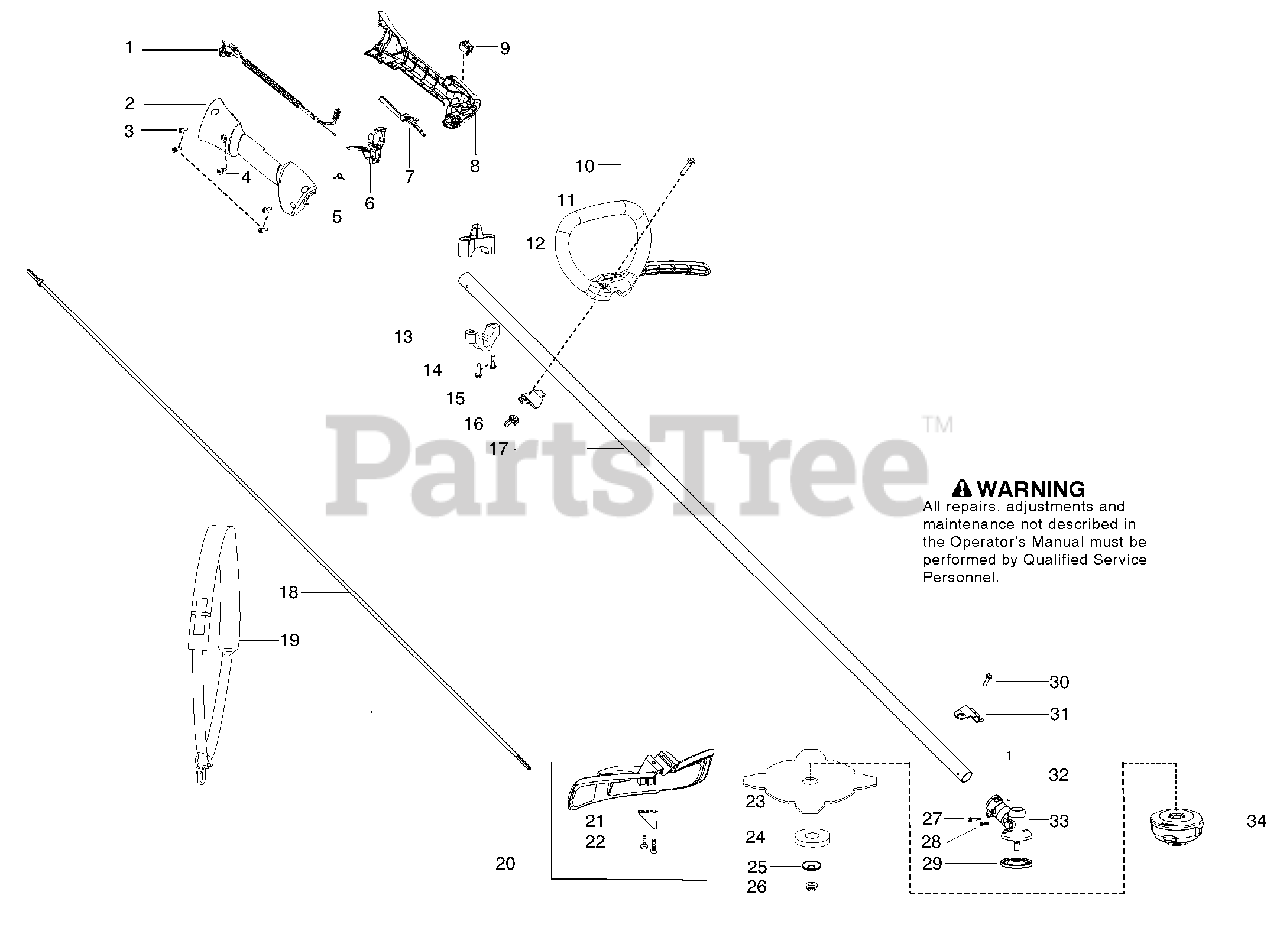

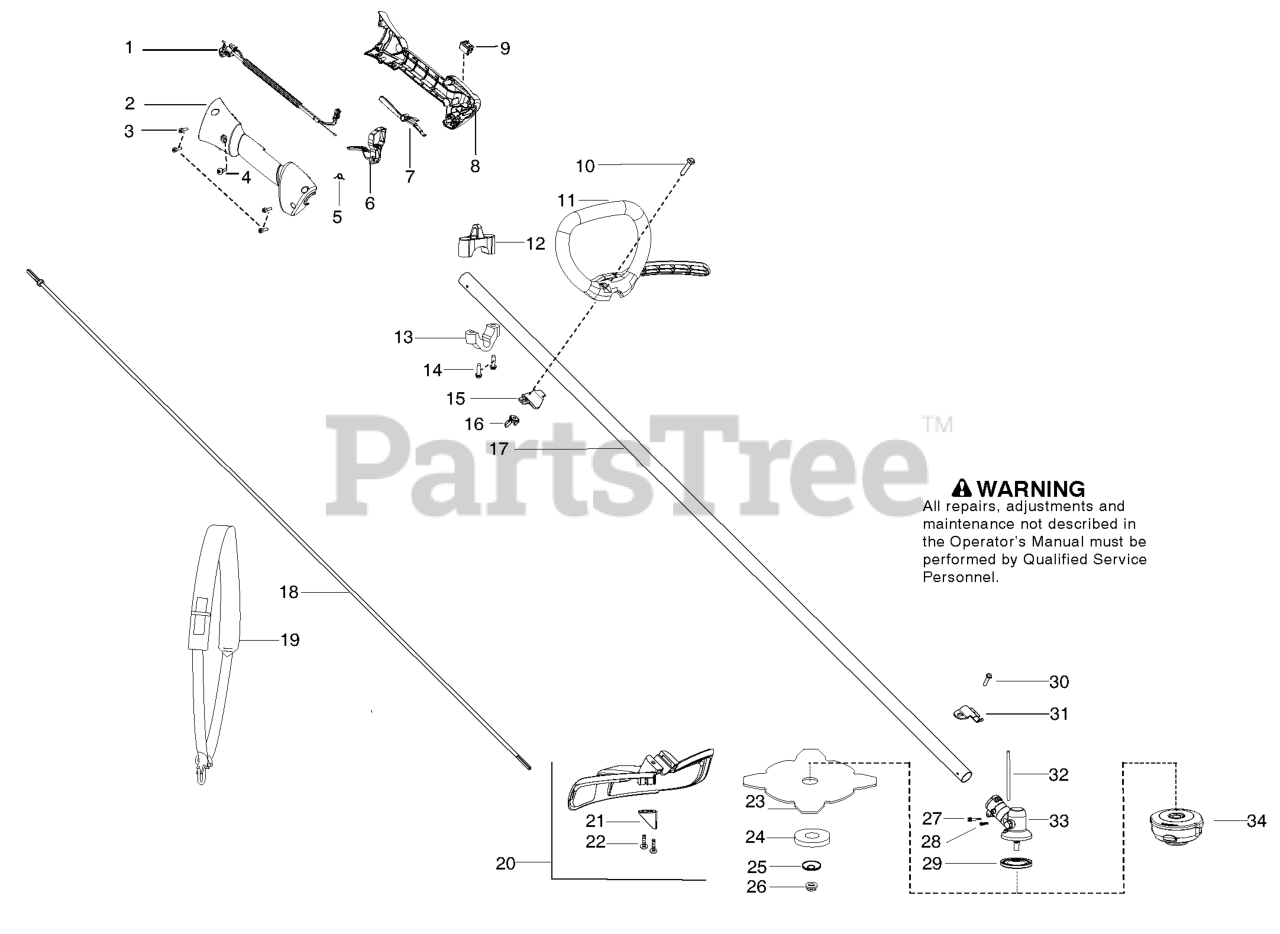

128 RJ - Husqvarna String Trimmer, Canada (2010-03) Shaft & Handle Parts Diagram

String Trimmer, Canada

Shaft & Handle Parts Diagram

  • Title

1

Assy-Cable/Wire Harness

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

2

Housing-Throttle - RH

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

3

Screw

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

4

Screw

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

5

Husqvarna 530016454

SPRING TRIGGER

$5.99

$

In Stock, Qty 6

0

6

Trigger

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

7

Lockout-Throttle

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

8

Housing-Thottle - LH

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

9

Kit-Switch

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

10

Husqvarna 530015820

BOLT, TYPE 2

$2.49

$

In Stock, Qty 10

0

11

Husqvarna 545139701

ASSY HANDLE JBAR

$33.99

$

Usually ships in 3-10 days

0

12

Husqvarna 545113301

CLAMP HARNESS UPPER

$5.99

$

In Stock, only 2 left!

0

13

Husqvarna 545056601

CLAMP HARNESS LOWER

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 530015940

SCREW

$3.99

$

In Stock, only 2 left!

0

15

Husqvarna 530059185

CLAMP ASSIST HANDLE

$4.99

$

In Stock, Qty 6

0

16

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$

$

Not available

17

Husqvarna 575775901

Kit-Driveshaft

Note: (Incl. 27,28,31,33) New Part Number For This IPL

$

$

Currently unavailable

18

Husqvarna 545007507

FLEXSHAFT 57"

$33.99

$

In Stock, Qty 7

0

19

Husqvarna 537216201

Harness-w/o warning
(Superseded to 537216202)

$23.99

$

In Stock, only 4 left!

0

20

Husqvarna 545030901

KIT COBI SHIELD

Note: (Incl. 21,22,30)

$33.99

$

In Stock, Qty 5

0

21

Husqvarna 530052286

Limiter - Line

$

$

Not available

22

Husqvarna 530015814

SCREW

$3.49

$

In Stock, Qty 5

0

23

Husqvarna 504001303

Blade - Grass
(Superseded to 596278001)

$29.99

$

In Stock, only 1 left!

0

24

Husqvarna 503890101

SUPPORTING CUP

$17.99

$

In Stock, only 4 left!

0

25

Husqvarna 537285601

SUPPORT FLANGE

$15.99

$

In Stock, Qty 12

0

26

Husqvarna 503856301

GEARHEAD NUT - BRUSHCUTTER

$7.99

$

In Stock, only 3 left!

0

27

Husqvarna 530016014

SCREW - CARB. ADAPTOR

$3.99

$

In Stock, only 2 left!

0

28

Husqvarna 545003902

SCREW

$2.49

$

In Stock, Qty 6

0

29

Husqvarna 537234901

DRIVE DISC

$33.99

$

In Stock, only 3 left!

0

30

Husqvarna 530015771

SCREW 1/4-20 X 7/8 (TAP

$3.99

$

In Stock, only 2 left!

0

31

Husqvarna 530057554

BRACKET SHIELD STRAIGHT SHAFT

$7.49

$

In Stock, only 4 left!

0

32

Husqvarna 502285901

LOCKING PIN

$7.49

$

In Stock, only 2 left!

0

33

Husqvarna 530096295

ASSY GEARBOX

$43.99

$

In Stock, only 2 left!

0

34

Husqvarna 537338306

T25 TRIM HEAD 10MM LH
(Superseded to 537338310)

$33.99

$

In Stock, Qty 20+

0

Husqvarna 545196739

MANUAL OPERATORS

Note: Not Shown

$

$

Not available

Husqvarna 537312901

BLADE GUARD TRANSPORT

Note: Not Shown

$11.99

$

Usually ships in 3-10 days

0

Husqvarna 530031159

HEX WRENCH 5/32

Note: Not Shown

$3.99

$

In Stock, only 1 left!

0

Husqvarna 502114602

COMBI WRENCH
(Superseded to 501691701)

Note: Not Shown

$

$

Not available
