128 T (21A-128T063) - Troy-Bilt Tiller (2002) Transmission Assembly Parts Diagram

Tiller

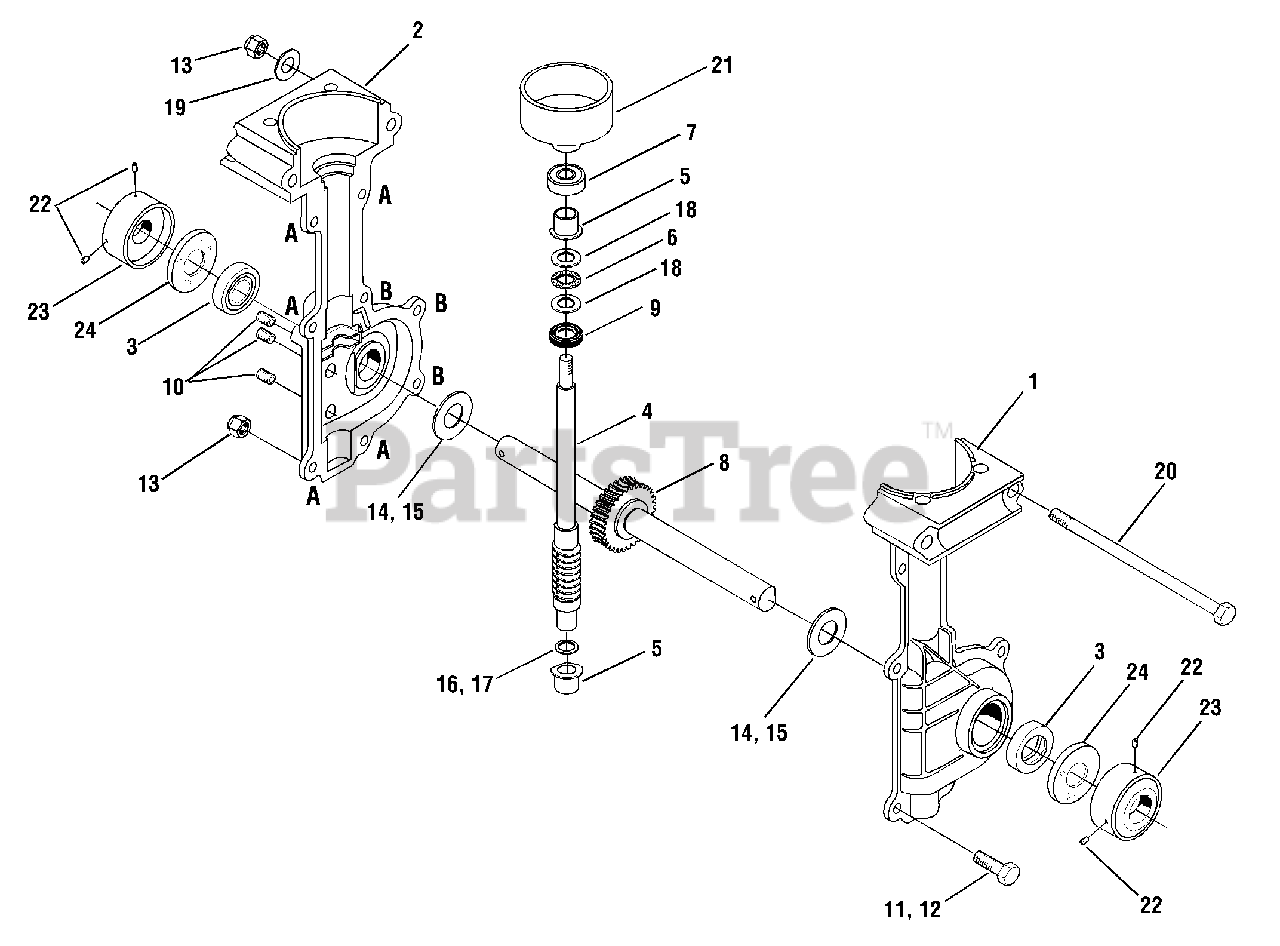

Transmission Assembly Parts Diagram

  • Title

1

Troy-Bilt 1915039

Transmission Case - left-side.

Note: (Incl. pressed-in bushing)

$

$

Not available

2

MTD 1915040

Transmission Case - right-side.

Note: (Incl. pressed-in bushing)

$

$

Not available

3

Troy-Bilt 1983632

Oil Seal
(Superseded to 921-04044)

$8.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 1918307

Worm Input Shaft Assembly

$57.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 1983731

Input Bearing

$11.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1983636

Thrust Bearing
(Superseded to 741-04052)

$

$

Not available

7

Troy-Bilt 1983637

Ball Bearing

$35.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 1904416

Worm Gear Shaft Assembly

$

$

Not available

9

MTD 1909923

Oil Seal, Input
(Superseded to 921-04032)

$

$

Not available

10

Troy-Bilt 1185741

Plug, 1/8
(Superseded to 737-04178)

$3.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 710-0206

Hex Screw, 1/4-20 x 7/8

$4.49

$

Usually ships in 3-6 days

0

12

UNKNOWN

$

$

Not available

13

Troy-Bilt 712-0324

Locknut, Nyloc, 1/4"-20

$3.49

$

In Stock, Qty 20+

0

14

MTD 1983635

Thrust Washer, output (.050")

$

$

Not available

15

Troy-Bilt 1983640

Thrust Washer, output (.040")

$6.49

$

In Stock, only 1 left!

0

16

Troy-Bilt 1983641

Thrust Washer, input (.020")

$3.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 1983642

Thrust Washer, input (.035")
(Superseded to 936-0616)

$4.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt 1983638

Thrust Washer

$

$

Not available

19

Troy-Bilt 736-0463

Flat Washer, .25 x .630 x .0515

$4.49

$

In Stock, only 2 left!

0

20

MTD 1983663

Hex Hd. Screw, 1/4-20 x 5

$

$

Not available

21

Troy-Bilt 1909486

Clutch Drum and Hub

$53.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 1747166

Set Screw, 1/4-28 x 3/8

$3.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 1915055

Dust Cover

$10.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 1983713

Felt Washer

$4.99

$

Usually ships in 3-6 days

0

$

$

Not available
