1280 E (1694442) - Simplicity 32" Snow Thrower, 12hp Handles and Controls Group Parts Diagram

32" Snow Thrower, 12hp

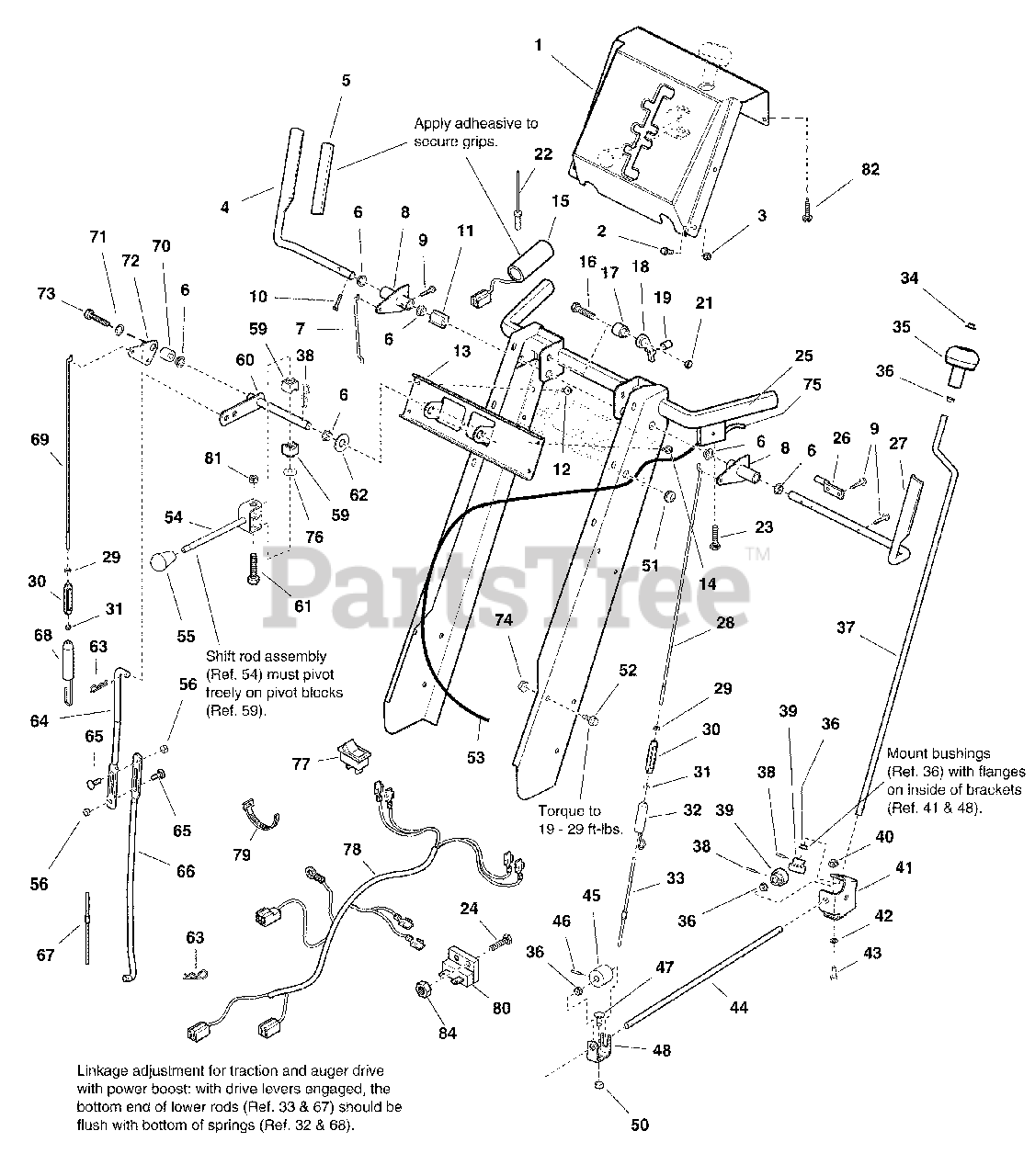

Handles and Controls Group Parts Diagram

  • Title

1

Simplicity 1667800CSM

DASHBOARD

$52.99

$

Usually ships in 2-12 days

0

2

Simplicity 1935450SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 1930641SM

NUT, Whiz Lock 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1612165SM

HANDLE, Clutch, RH

$

$

Not available

5

Simplicity 1668608SM

GRIP

$

$

Not available

6

Simplicity 1668185SM

BUSHING, Nylon

$5.49

$

In Stock, only 2 left!

0

7

Simplicity 1702663SM

ROD, Clutch

$13.99

$

Usually ships in 2-12 days

0

8

Simplicity 1725205ASM

LEVER & TUBE ASSEMBLY

$33.99

$

In Stock, only 1 left!

0

9

Simplicity 1960471SM

CAPSCREW, Hex Washer Head, #12-24 x 1

$3.49

$

In Stock, only 2 left!

0

10

Simplicity 1928732SM

CAPSCREW, Hex Washer Head, #10-24 x 1
(Superseded to 703162)

$3.99

$

In Stock, only 1 left!

0

11

Simplicity 1705899SM

GUIDE, Control
(Superseded to 703213)

$8.49

$

In Stock, only 4 left!

0

12

Simplicity 1925592SM

SCREW, Hex Washer Head Taptite 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, only 2 left!

0

13

Simplicity 1723935ASM

BRACKET, Shift Control
(Superseded to 1723935BMYP)

$15.99

$

Usually ships in 2-12 days

0

14

Simplicity 1925592SM

SCREW, Hex Washer Head Taptite 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, only 2 left!

0

15

Simplicity 1723965SM

HAND GRIP, Heated

$86.99

$

Usually ships in 2-12 days

0

16

Simplicity 1933689SM

SCREW, Hex Whiz Lock Flange 5/16-18 x 1 1/2, Black

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1678579SM

SPACER
(Superseded to 703049)

$6.99

$

Usually ships in 2-12 days

0

18

Simplicity 1705898SM

LATCH, Control
(Superseded to 703214)

$9.49

$

In Stock, only 1 left!

0

19

Simplicity 1701342SM

SPRING, Compression
(Superseded to 1750475YP)

$4.49

$

In Stock, only 2 left!

0

21

Simplicity 1960686SM

NUT, Hex ESNA 5/16-18, Black
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

22

Simplicity 1726422SM

RIVET, Pop

$3.49

$

Usually ships in 2-12 days

0

23

Simplicity 1725702SM

SCREW, Pan Torx Head, #10 x 1/2

$5.49

$

Usually ships in 2-12 days

0

24

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

25

Simplicity 1725124SM

HANDLE ASSEMBLY
(Superseded to 1725124CSM)

$202.99

$

Usually ships in 2-12 days

0

26

Simplicity 1677453SM

ROD, Control

$8.99

$

Usually ships in 2-12 days

0

27

Simplicity 1612167SM

HANDLE, Clutch, LH

$27.99

$

Usually ships in 2-12 days

0

28

Simplicity 1668121SM

ROD, 17.3" Long

$

$

Not available

29

Simplicity 2828704SM

NUT, LH, Machine Screw, Hex, #10-24

$5.99

$

In Stock, only 2 left!

0

30

Simplicity 2108775SM

TURNBUCKLE

$

$

Not available

31

Simplicity 1916621SM

NUT, RH, Machine Screw, Hex, #10-24

$3.49

$

In Stock, only 2 left!

0

32

Simplicity 1707452SM

SPRING

$14.99

$

In Stock, only 1 left!

0

33

Simplicity 1668526SM

ROD, Clutch

$

$

Not available

34

Simplicity 1960093SM

PUSH NUT
(Superseded to 703948)

$4.49

$

In Stock, Qty 15

0

35

Simplicity 1714084SM

KNOB, Spinner

$12.99

$

In Stock, Qty 7

0

36

Simplicity 1667588SM

BUSHING, Nylon

$5.99

$

In Stock, Qty 15

0

37

Simplicity 1715658SM

ROD, Chute Control

$28.99

$

Usually ships in 2-12 days

0

38

Simplicity 1960074SM

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

39

Simplicity 1718593SM

GEAR

$14.99

$

In Stock, Qty 20+

0

40

Simplicity 1960294SM

NUT, Hex Flange, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

41

Simplicity 1718793SM

SUPPORT, Gear

$19.99

$

Usually ships in 2-12 days

0

42

Simplicity 1960518SM

PUSH NUT
(Superseded to 703826)

$3.49

$

In Stock, Qty 17

0

43

Simplicity 1960252SM

CARRIAGE BOLT, 1/4-20 x 5/8

$3.99

$

In Stock, only 2 left!

0

44

Simplicity 1725283SM

ROD, Chute

$14.99

$

Usually ships in 2-12 days

0

45

Simplicity 1668186SM

GEAR, Worm

$41.99

$

In Stock, only 3 left!

0

46

Simplicity 2816168SM

PIN, Spring, 1/8 x 3/4

$4.49

$

In Stock, Qty 20+

0

47

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

48

Simplicity 1611911SM

SUPPORT, Worm

$9.99

$

Usually ships in 2-12 days

0

50

Simplicity 1960684SM

NUT, Hex ESNA, 5/16-18, Black
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

51

Simplicity 1664022SM

GROMMET

$4.49

$

Usually ships in 2-12 days

0

52

Simplicity 1930591SM

CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 12

0

53

Simplicity 1718791SM

CABLE & HANDLE ASSEMBLY, Clutch (Includes Ref. 75)

$70.99

$

In Stock, only 1 left!

0

54

Simplicity 1714120SM

SHIFT ASSEMBLY, Rod & Clevis
(Superseded to 703053)

$38.99

$

Usually ships in 2-12 days

0

55

Simplicity 1713844SM

KNOB

$12.99

$

Usually ships in 2-12 days

0

56

Simplicity 1960685SM

NUT, Hex KEPS, 1/4-20, Black
(Superseded to 703061)

$3.49

$

In Stock, only 3 left!

0

59

Simplicity 1668524SM

BLOCK, Pivot
(Superseded to 703050)

$13.99

$

Usually ships in 2-12 days

0

60

Simplicity 1703043SM

ROD & ARM ASSEMBLY, Pivot

$32.99

$

Usually ships in 2-12 days

0

61

Simplicity 1960705SM

CAPSCREW, Hex Head, 1/4-20 x 2 1/4, Black

$2.99

$

Usually ships in 2-12 days

0

62

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

Usually ships in 2-12 days

0

63

Simplicity 1722460SM

PIN, Hair
(Superseded to 703430)

$3.49

$

In Stock, Qty 10

0

64

Simplicity 1726304SM

ROD, Shift, Upper

$

$

Not available

65

Simplicity 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, Qty 5

0

66

Simplicity 1666255SM

ROD, Shift, Lower

$51.99

$

In Stock, only 1 left!

0

67

Simplicity 1702004SM

ROD, Clutch, Lower

$16.99

$

In Stock, only 2 left!

0

68

Simplicity 1701996SM

SPRING

$12.99

$

In Stock, only 3 left!

0

69

Simplicity 1702485SM

ROD, Clutch, Upper

$

$

Not available

70

Simplicity 1702552SM

SPACER

$12.99

$

Usually ships in 2-12 days

0

71

Simplicity 1919326SM

WASHER, Plain 11/32 x 3/4 x 1/16

$4.49

$

In Stock, Qty 18

0

72

Simplicity 1702662SM

LEVER, Clutch

$48.99

$

Usually ships in 2-12 days

0

73

Simplicity 1933689SM

CAPSCREW, Hex Whiz Lock Flange 5/16-18 x 1 1/2

$4.49

$

Usually ships in 2-12 days

0

74

Simplicity 1931277SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

75

Simplicity 1718804SM

TRIGGER ASSEMBLY, Easy Turn Clutch Cable

$37.99

$

In Stock, only 1 left!

0

76

Simplicity 1668681SM

WASHER, Curved, 1/2

$4.49

$

Usually ships in 2-12 days

0

77

Simplicity 1723967SM

SWITCH, Heated Grips, Rocker

$38.99

$

Usually ships in 2-12 days

0

78

Simplicity 1725439SM

HARNESS, Wiring

$29.99

$

Usually ships in 2-12 days

0

79

Simplicity 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

80

Simplicity 1724037SM

RESISTOR BLOCK

$39.99

$

Usually ships in 2-12 days

0

81

Simplicity 2860694SM

NUT, Hex Flange 1/4-20 ESNA, Yellow
(Superseded to 703463)

$4.49

$

In Stock, Qty 5

0

82

Simplicity 1925592SM

SCREW, Hex Washer Head Taptite 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, only 2 left!

0

84

Simplicity 1960694SM

NUT, Hex Flang ESNA Black 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 5

0
