1280 E (1694592) - Simplicity 32" Snow Thrower, 12hp Auger Housing and Chute Group - 9560, 1060, 1170 & 1280 Models Parts Diagram

32" Snow Thrower, 12hp

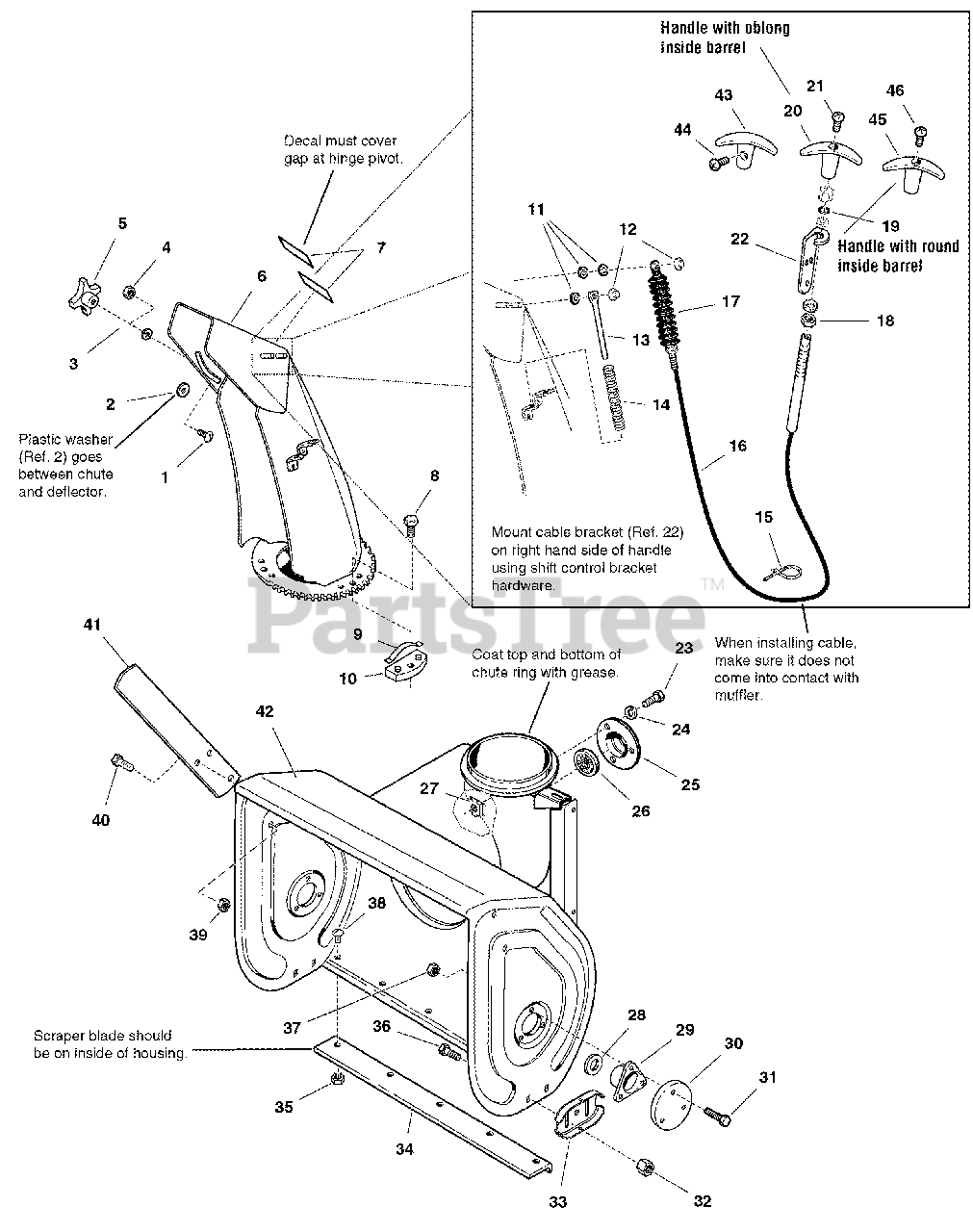

Auger Housing and Chute Group - 9560, 1060, 1170 & 1280 Models Parts Diagram

  • Title

1

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 2860210SM

WASHER, Nylon

$4.49

$

In Stock, Qty 5

0

3

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 18

0

4

Simplicity 1919438SM

NUT, Hex Lock ESNA Light, 5/16-18NC-3B (Used on all models Except 9560 Models)
(Superseded to 703902)

$3.99

$

In Stock, Qty 14

0

5

Simplicity 1670578SM

KNOB, Internal Thread, 5/16 (Used Only on 9560 Models)

$13.99

$

In Stock, only 2 left!

0

6

Simplicity 1704161CSM

CHUTE AND DEFLECTOR ASSEMBLY, Manual (Used Only on 9560 Models)

$

$

Not available

6

Simplicity 1720671CSM

CHUTE AND DEFLECTOR ASSEMBLY, w/Remote (Used on all models Except 9560 Models)

$141.99

$

Usually ships in 2-12 days

0

7

Simplicity 1706085SM

DECAL, Orange Strip

$13.99

$

Usually ships in 2-12 days

0

8

Simplicity 1960001SM

SCREW, Hex Washer Head Pastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 1667865SM

SPRING, Flat

$10.99

$

In Stock, Qty 9

0

10

Simplicity 1666613SM

HOLD DOWN, Chute

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 1702219SM

SPACER, 17/64 ID x 3/8 OD

$8.49

$

Usually ships in 2-12 days

0

12

Simplicity 1960126SM

NUT, Push 1/4
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

13

Simplicity 1611945SM

ROD, Spring

$13.99

$

In Stock, only 1 left!

0

14

Simplicity 1611939SM

SPRING, Compression

$10.99

$

In Stock, only 1 left!

0

15

Simplicity 1701011SM

TIE, Self Locking (Used on all models Except 9560 Models)

$5.49

$

In Stock, only 2 left!

0

16

Simplicity 1720446SM

CABLE AND KNOB ASSEMBLY, Chute (Includes Ref. No. 17, 18, 19, 20 & 21)

$179.99

$

In Stock, Qty 6

0

17

Simplicity 1700048SM

BOOT, Bellows

$33.99

$

Usually ships in 2-12 days

0

18

Simplicity 1719140

COLLET
(Superseded to 1718771SM)

$186.99

$

In Stock, only 1 left!

0

19

Simplicity 1719139

SEAL, Rod

$

$

Not available

20

Simplicity 1719138SM

KNOB

Note: (Handle with oblong inside barrel)

$20.99

$

Usually ships in 2-12 days

0

21

Simplicity 1960600SM

SCREW, 8-32

$4.99

$

Usually ships in 2-12 days

0

22

Simplicity 1726411ASM

BRACKET, Cable

$

$

Not available

23

Simplicity 1925205SM

CAPSCREW, Hex Head, 5/16-18 x 5/8 G5
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

24

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1665982ASM

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, only 4 left!

0

26

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

27

Simplicity 1930659SM

NUT, Retainer Speed, 5/16-18

$5.99

$

Usually ships in 2-12 days

0

28

Simplicity 1663189SM

SPACER, Low

$6.49

$

In Stock, Qty 6

0

29

Simplicity 1665980SM

BEARING, Flange

$

$

Not available

30

Simplicity 1668639CSM

CAP, Bearing, 3-3/4OD
(Superseded to 1668639BMYP)

$51.99

$

Usually ships in 2-12 days

0

31

Simplicity 1923325SM

CAPSCREW, Hex Head 5/16-18 x 7/8 G5
(Superseded to 703408)

$4.99

$

In Stock, Qty 20+

0

32

Simplicity 1960687SM

NUT, Hex Flange 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 1727854CSM

SKID SHOE, Reversible
(Superseded to 1727854BMYP)

$16.99

$

In Stock, only 3 left!

0

34

Simplicity 1709946ASM

BLADE, Scraper, 24" (Used Only on 9560 & 1060 Models)

$39.99

$

In Stock, only 2 left!

0

34

Simplicity 1709947ASM

BLADE, Scraper, 28" (Used Only on 1170 Models)
(Superseded to 1709947BMYP)

$45.99

$

In Stock, only 1 left!

0

34

Simplicity 1709948ASM

BLADE, Scraper, 32" (Used Only on 1280 Models)
(Superseded to 1709948BMYP)

$58.99

$

In Stock, Qty 5

0

35

Simplicity 1935048SM

NUT, Hex Flange, 5/16-18, Two-Way Lock GA (Quantity 7 Only on 1280 Models)
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

36

Simplicity 1960711SM

CARRIAGE BOLT, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

37

Simplicity 1923362SM

NUT, Hex Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

38

Simplicity 1960699SM

CARRIAGE BOLT, 5/16-18 x 5/8 G5 (Quantity 7 Only on 1280 Models)
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

39

Simplicity 1960684SM

NUT, Hex Keps, 5/16-18, Conical Washer (Used on all models Except 9560 Models)
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

40

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4 G5 (Used on all models Except 9560 Models)
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

41

Simplicity 1715787CSM

CUTTER, Drift, 1/4" Thick, 20LG (Used on all models Except 9560 Models)

$37.99

$

Usually ships in 2-12 days

0

42

Simplicity 1612184C

HOUSING AND IMPELLER ASSEMBLY, 24" (Used on 9560 & 1060 Models)

$

$

Not available

42

Simplicity 1612185C

HOUSING AND IMPELLER ASSEMBLY, 28" (Used on 1170 Models)

$

$

Not available

42

Simplicity 1612186C

HOUSING AND IMPELLER ASSEMBLY, 32" (Used on 1280 Models)

$

$

Not available

43

Simplicity 1715799SM

HANDLE "T"

$

$

Not available

44

Simplicity 1930547SM

SCREW, Set, Hex #10-24 x 3/8

$4.49

$

Usually ships in 2-12 days

0

45

Simplicity 1706201SM

HANDLE "T"

Note: (Handle with round inside barrel)

$

$

Not available

46

Simplicity 1960399SM

SCREW, Round Head

$3.49

$

Usually ships in 2-12 days

0
