1282 (142-680-399) - Cub Cadet Garden Tractor Grille Parts Diagram

Garden Tractor

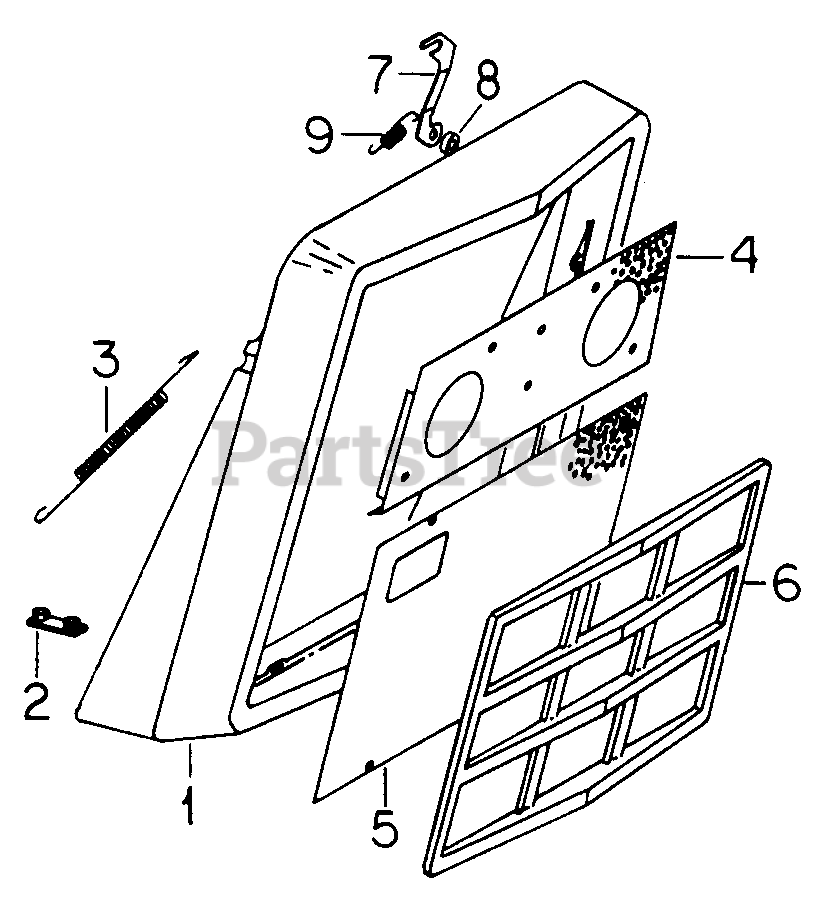

Grille Parts Diagram

  • Title

1

Cub Cadet 719-3002

Housing, Grille

$

$

Currently unavailable

2

Cub Cadet 703-0008

Retainer Assy, Grille Housing

$

$

Not available

Cub Cadet 710-0376

Bolt, 5/16 X 1 Type 5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0119

Washer, 5/16 Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 732-3001

Spring
(Superseded to 932-3001)

$17.99

$

In Stock, only 3 left!

0

4

Cub Cadet 703-0165

Screen, Upper Grille

Variations

703-0165-0637

Cub Cadet 703-0165-0637

SCREEN, GRILLE - POWDER BLACK (0637)

$

$

Not available

$

$

5

Not used in this application

$

$

Not available

6

Cub Cadet 719-3003

Grille

Note: (Replaces IH-140198-C1)

$

$

Currently unavailable

7

Cub Cadet 703-0010

Latch, Hood

$

$

Not available

Cub Cadet 736-0275

Washer, .344 X .688 X .051

$7.49

$

Usually ships in 3-6 days

0

Cub Cadet 710-3004

Screw, 5/16 X 3/4 H/Hd Tap
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 750-3000

Spacer, Hood Latch

$

$

Not available

9

Cub Cadet 732-3002

Spring
(Superseded to 932-3002)

$9.99

$

In Stock, only 3 left!

0
