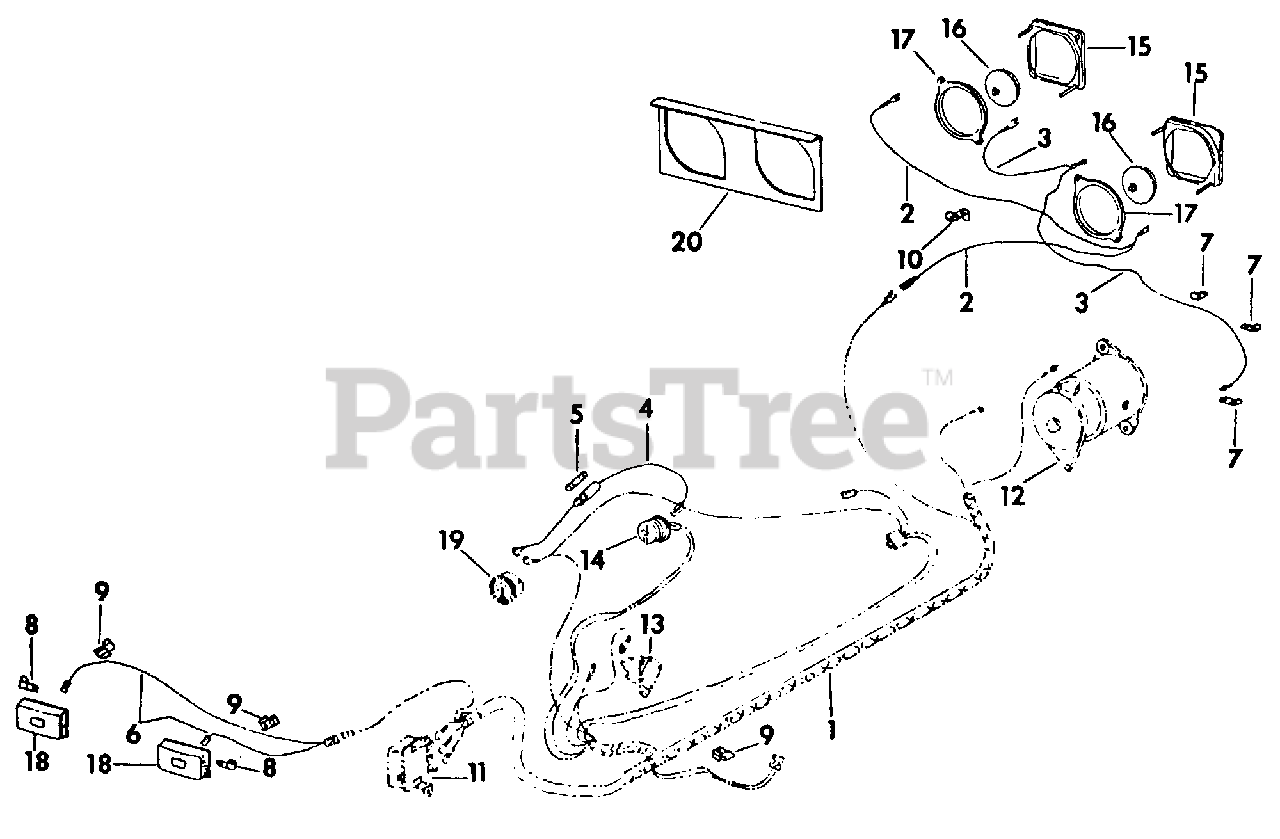

129 (2050046U) - Cub Cadet Garden Tractor Electric Lighting Attachment Parts Diagram

Garden Tractor

Electric Lighting Attachment Parts Diagram

  • Title

1

Harness, Cable

Note: (Refer to ignition & starting listing)

$

$

Not available

2

Cub Cadet IH-545723-R1

Cable, Headlight

$

$

Not available

3

Cub Cadet IH-545724-R1

Cable, Headlight to Ground

$

$

Not available

4

~NLA

Cable, Switch to Charge Indicator

$

$

Not available

5

Cub Cadet 725-3012

Fuse, 10 Amp Slo-Blo
(Superseded to 925-3012)

$

$

Not available

6

Cub Cadet IH-545726-R1

Cable, Taillight

$

$

Currently unavailable

Cub Cadet 735-3008

Grommet, Rubber

$

$

Not available

7

Cub Cadet 726-3025

Clip, Cable
(Superseded to 726-0272)

$7.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 726-3015

Clip, Taillight
(Superseded to 726-3008)

$5.49

$

Usually ships in 3-6 days

0

9

~NLA

Clip, Safety Starting Switch Cable

$

$

Not available

10

Cub Cadet IH-365584-R1

Clip, Cable

$

$

Currently unavailable

11

Regulator, Voltage

Note: (Refer to ignition & starting listing)

$

$

Not available

12

Starter-Generator Assy

Note: (Refer to ignition & starting listing)

$

$

Not available

13

Switch, Magnetic

Note: (Refer to ignition & starting listing)

$

$

Not available

14

Cub Cadet IH-394771-R92

Switch, Lighting
(Superseded to IH-394771-R93)

$97.99

$

Usually ships in 3-6 days

0

15

Rim, Headlight

Note: (Order two rims IH-107277-C1 & panel IH-61419-C1)

$

$

Not available

Cub Cadet IH-529860-R1

Screw, 10-32 X 5/8 Slt Pan Hd Mach

$

$

Not available

Cub Cadet IH-138479

Washer, No. 10 Ext Tooth Lock

$

$

Not available

Cub Cadet 712-0349

Nut, 10-32 Hex

$4.99

$

In Stock, Qty 5

0

16

Cub Cadet 725-0222

Unit, Sealed Beam
(Superseded to 925-0222)

$62.99

$

In Stock, only 2 left!

0

17

Cub Cadet IH-389746-R1

Ring, Headlight Clamp
(Superseded to IH-389746-R2)

$

$

Not available

Nut, 10-32 C-Z Wing

Note: (Common Hardware, Purchase Locally)

$

$

Not available

18

Cub Cadet IH-545616-R1

Taillight Assy

$

$

Not available

Cub Cadet IH-55186-C1

Base

$

$

Not available

Cub Cadet IH-9417863

Lamp, No. 1895, 12 Volt
(Superseded to IH-9417863P)

$

$

Not available

Cub Cadet IH-55187-C1

Lens

$

$

Not available

Screw, 10-24 X 5/8 Pan Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet IH-138479

Washer, No. 10 Ext Tooth Lock

$

$

Not available

Cub Cadet BS-231082

Nut, 10-24 Hex

$

$

Not available

19

Indicator, Charge

Note: (Refer to ignition & starting listing)

$

$

Not available

20

Cub Cadet IH-545507-R1

Panel, Headlight Mounting

$

$

Currently unavailable
