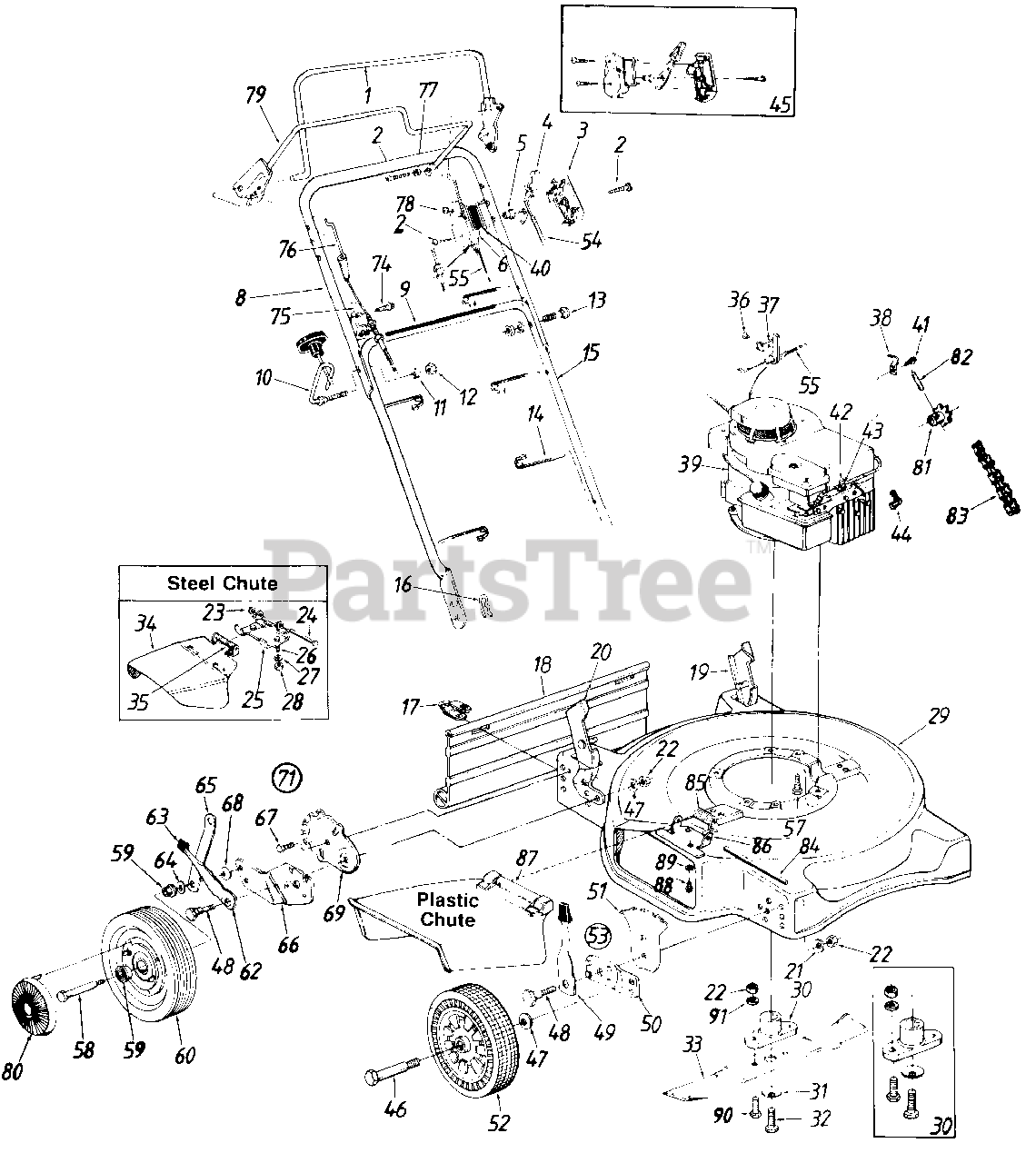

129-222R190 - White Outdoor Lawn Boss 22" Walk-Behind Mower (1989) Body Assembly Parts Diagram

Lawn Boss 22" Walk-Behind Mower

Body Assembly Parts Diagram

  • Title

1

MTD 14321

Control Handle Ass'y.

Note: NLA

$

$

Not available

2

MTD 710-0796

Truss Mach. Scr. #12 x 1.5"

$5.49

$

In Stock, Qty 6

0

3

MTD 731-0817A

Control Panel Half

$

$

Not available

4

MTD 931-0972

Throttle Control Lever

$8.99

$

In Stock, Qty 14

0

5

MTD 731-0524

Control Disc Pin

Note: NLA

$

$

Not available

6

MTD 731-0816

Clutch Panel Half

Note: NLA

$

$

Not available

8

MTD 749-0756A

Upper Handle (Painted)

$

$

Not available

9

MTD 777-5776

Instruction Label-Handle

Note: NLA

$

$

Currently unavailable

10

MTD 710-0842B

Rope Guide Bolt

Note: NLA

$

$

Not available

11

MTD 936-0119

L-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

12

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

Note: NLA

$

$

Not available

14

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

15

MTD 749-0928A

Lower Handle (Painted)
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, Qty 10

0

$33.99

$

In Stock, Qty 10

0

16

MTD 914-0104

Hairpin Cotter
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

17

MTD 17098P

Hinge Clip

$

$

Not available

18

MTD 731-0872B

Rear Flap

$36.99

$

In Stock, Qty 6

0

19

MTD 17189B-0637

Handle Bracket Ass'y.-L.H.

$

$

Not available

20

MTD 17188B-0637

Handle Bracket Ass'y.-R.H.

$

$

Not available

21

MTD 936-0356

Bell-Wash. .39" I.D. x 1.38" O.D.

$

$

Not available

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

23

MTD 926-0106

Push Cap 1/4" Rodt
(Superseded to 726-0106)

$

$

Not available

24

MTD 711-0555

Pivot Pint

Note: NLA

$

$

Not available

25

MTD 11130

Adapter Platet

Note: NLA

$

$

Not available

26

MTD 910-0289

Hex Bolt 1/4-20 x .50" Lg.t

$3.49

$

Usually ships in 3-6 days

0

27

MTD 936-0329

L-Wash. 1/4" I.D.t

$4.49

$

In Stock, Qty 13

0

28

MTD 912-0287

Hex Nut 1/4-20 Thd.t

$4.49

$

In Stock, only 2 left!

0

29

MTD 97046

22" Deck Ass'y.

Variations

MTD 97046-0638

DECK ASSEMBLY-22IN - MTD/TROY-BILT RED (0638)

$227.99

$

Usually ships in 3-6 days

0

MTD 97046-0483

No Longer Available DECK ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 97046-0629

No Longer Available DECK ASM - SILVER FLAKE (0629)

$

$

Not available

MTD 97046-0665

No Longer Available DECK ASM - YARDMAN GREEN (0665)

$

$

Not available

MTD 97046-0667

No Longer Available DECK ASM - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 97046-0691

No Longer Available DECK ASM - BLACK JACK (0691)

$

$

Not available

$197.99

$

Usually ships in 3-6 days

0

30

MTD 753-0484

Blade Adapter Kit

$21.99

$

In Stock, only 1 left!

0

31

MTD 736-0331

Blade Bell-Wash. .39" I.D. x 1.12"

$3.99

$

In Stock, Qty 20+

0

32

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, Qty 20+

0

33

MTD 942-0622

22" Blade

$

$

Not available

34

MTD 931-1034B

Chute Deflector Ass'y

$67.99

$

In Stock, Qty 12

0

35

MTD 732-0253

Torsion Spring

Note: NLA

$

$

Not available

36

MTD 728-0171

Pop Rivet

$

$

Not available

37

MTD 14924

Cable Bracket

Note: NLA

$

$

Not available

38

MTD 12894A

Cable Clamp

Note: NLA

$

$

Not available

39

Engine

$

$

Not available

40

MTD 777-5773

Control Label-Throttle

Note: NLA

$

$

Currently unavailable

41

MTD 910-0429

Hex B-Tap Scr. #10 x .38"

$3.49

$

Usually ships in 3-6 days

0

42

MTD 751-0369

Cable Clamp

Note: NLA

$

$

Not available

43

MTD 710-0227

Hex AB-Tap Scr. #8 x 38" Lg.

$3.99

$

In Stock, Qty 20+

0

44

MTD 735-0639

Spark Plug Boot

$

$

Not available

45

MTD 753-0430

Kit-Control Housing Comp.

Note: NLA

$

$

Not available

46

MTD 710-1020

Front Axle Bolt

Note: NLA

$

$

Not available

47

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

48

MTD 938-0507B

Shld. Bolt .50" Dia. x .357"
(Superseded to 738-0507B)

$4.49

$

In Stock, Qty 20+

0

49

MTD 94832

Spring Lever Ass'y. w/Knob

$10.99

$

In Stock, Qty 8

0

50

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

51

MTD 787-01290A

Height Adj. Plate

$11.99

$

In Stock, only 2 left!

0

52

Wheel Ass'y. Comp.

$

$

Not available

53

MTD 14578

Height Adj. Ass'y. Comp.-R.F.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

53

MTD 753-06761

Height Adj. Ass'y. Comp.-L.F.

$60.99

$

In Stock, Qty 7

0

54

MTD 946-0671A

Throttle Wire-53"

$13.99

$

In Stock, Qty 9

0

55

MTD 946-0476A

Control Cable-39"

$

$

Not available

57

MTD 710-0654A

Hex L-Wash. HD. Bolt 3/8-16 x 1.0" Lg.

$3.99

$

In Stock, only 4 left!

0

58

MTD 938-0144

Rear Axle Bolt

$

$

Not available

59

MTD 941-0180

Fl. Ball Brg. 1/2" I.D.

$18.99

$

Usually ships in 3-6 days

0

60

MTD 734-1419

Rear Wheel Ass'y. Comp.

Note: NLA

$

$

Not available

62

MTD 732-0417A

Spring Lever

$12.99

$

Usually ships in 3-6 days

0

63

MTD 720-0426

Spring Lever Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

64

MTD 936-0192

Fl-Wash. .531" I.D. x .93"

$3.99

$

In Stock, Qty 18

0

65

MTD 14760A

Link 4.58" Lg.

Note: NLA

Variations

MTD 14760A-0637

No Longer Available LINK - POWDER BLACK (0637)

$

$

Not available

$

$

66

MTD 14765

Pivot Bar R.H.

$19.99

$

Usually ships in 3-6 days

0

66

MTD 14766

Pivot Bar L.H.

Note: (Not Shown)

$19.99

$

Usually ships in 3-6 days

0

67

MTD 910-0892

Hex AB-Tap 1/4-.62" Lg.

$

$

Not available

68

MTD 736-0105

Bell-Wash. .380" l.D. x .88"

$3.99

$

In Stock, Qty 20+

0

69

MTD 14764C

Index Plate

$7.99

$

Usually ships in 3-6 days

0

71

MTD 16106

Rear Height Adj. Ass'y.-R.H.

Note: NLA

$

$

Not available

71

MTD 16107

Rear Height Adj. Ass'y.-L.H.

Note: NLA (Not Shown)

$

$

Not available

74

MTD 710-0726

Hex Wash. AB-Tap Scr. 5/16 x.75" Lg.

$3.99

$

In Stock, Qty 20+

0

75

MTD 16309A

Cable Brkt.

$

$

Not available

76

MTD 946-0628

Clutch Cable w/Spring-32" Lg.

$

$

Not available

77

MTD 750-0649

Spacer .23" I.D. x .30" O.D.

Note: NLA

$

$

Not available

78

MTD 736-0370

Spr.-Wash. .206" I.D. x .448

Note: NLA

$

$

Not available

79

MTD 16391

S.P. Bail Ass'y.

Note: NLA

$

$

Not available

80

MTD 731-0355A

Hub Cap

Note: NLA

$

$

Not available

81

MTD 713-0308

10 Tooth Sprocket Ass'y.

$

$

Not available

82

MTD 915-0247

Spring Pin Spir. 1" Lg.

$

$

Not available

83

MTD 913-0311

#48 Chain 1/2" Pitch x 50 Links-Endless

$31.99

$

Usually ships in 3-6 days

0

84

MTD 747-0710A

Hinge Pin

$3.99

$

In Stock, Qty 20+

0

85

MTD 932-0593

Torsion Spring

$4.49

$

In Stock, only 4 left!

0

86

MTD 17032A

Adapter Plate

$10.99

$

In Stock, only 4 left!

0

87

MTD 931-1034B

Chute Deflector Ass'y.

$67.99

$

In Stock, Qty 12

0

88

MTD 710-0599

Hex Self-Tap Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

89

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 13

0

90

MTD 910-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

91

MTD 936-0169

L-Wash. 318" I.D.*
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0
