129-476B190 - White Outdoor Lawn Boss 21" Walk-Behind Mower (1989) Height Adjustment Assembly 476B Parts Diagram

Lawn Boss 21" Walk-Behind Mower

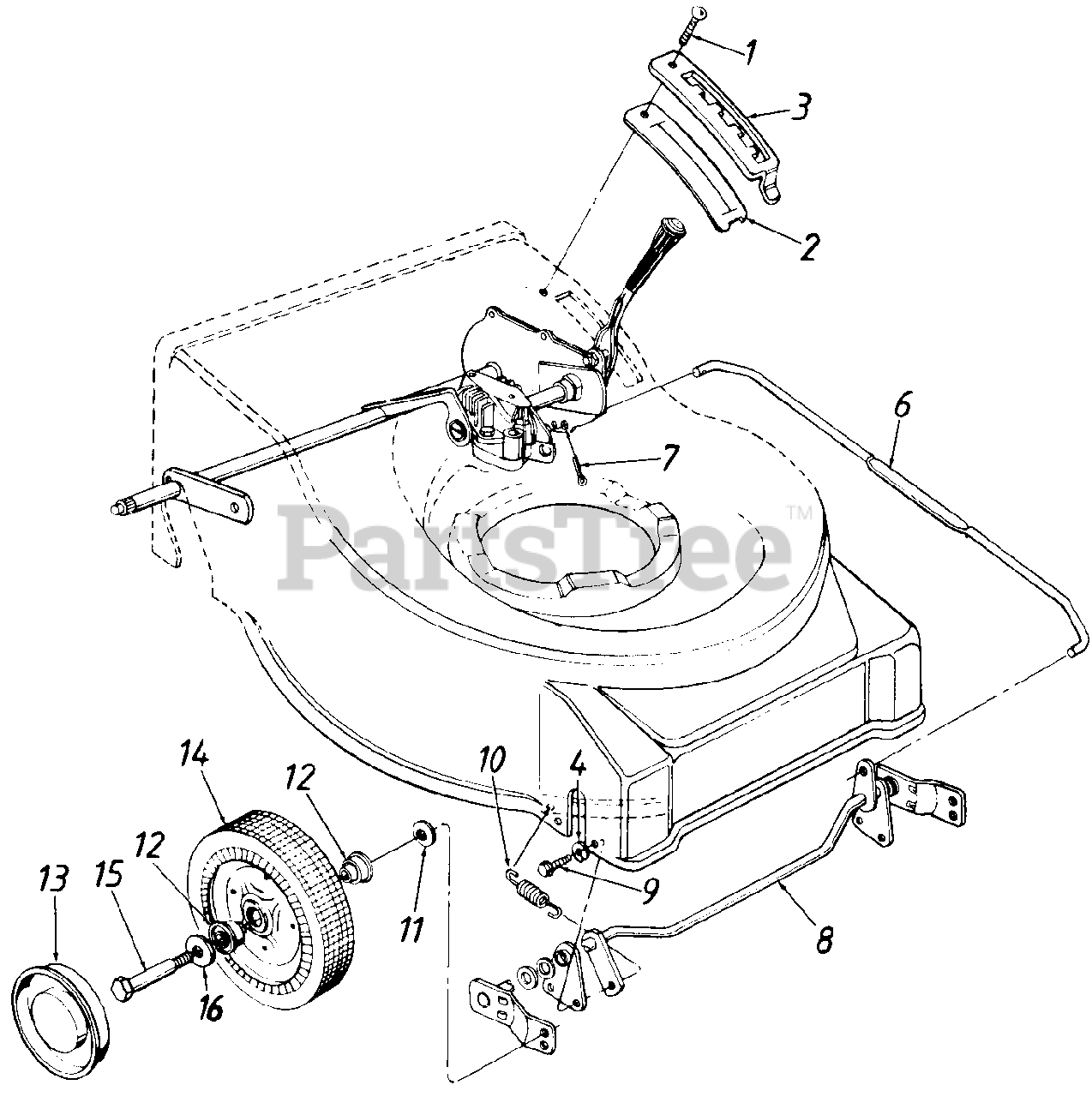

Height Adjustment Assembly 476B Parts Diagram

  • Title

1

MTD 710-1017

Torx Mach. AB-Tap Scr. 1/4 X .62" Lg.

$8.99

$

In Stock, Qty 14

0

2

MTD 721-0216

Height Adjustment Support

Note: NLA

$

$

Not available

3

MTD 17323

Height Adjustment Plate

Note: NLA

$

$

Not available

4

MTD 936-0329

L-Wash. 1/4" I.D.

$4.99

$

In Stock, Qty 16

0

6

MTD 747-0699

Height Adj. Connecting Rod

Note: NLA

$

$

Not available

7

MTD 914-0507

Cotter Pin 3/32" Dia.

$4.99

$

In Stock, Qty 17

0

8

MTD 17022-0637

Front Axle Ass'y.

$144.99

$

Usually ships in 3-6 days

0

9

MTD 710-0352

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x.38" Lg.

$4.99

$

Usually ships in 3-6 days

0

10

MTD 732-0589

Extension Spring 2.39" Lg.

Note: NLA

$

$

Not available

11

MTD 736-0105

Bell-Wash. 380" l.D. x .88" O.D.

$4.99

$

In Stock, Qty 20+

0

12

MTD 941-0180

Flange Ball Bearing 1/2" I.D.

$18.99

$

Usually ships in 3-6 days

0

13

MTD 731-0981C

Hub Cap

$11.99

$

In Stock, Qty 6

0

14

MTD 734-2004B

Wheel Ass'y. Comp.-Front
(Superseded to 753-08093)

$48.99

$

In Stock, only 4 left!

0

15

MTD 938-0102

Shld. Bolt .498" Dia. x 1.45"
(Superseded to 738-0102)

$

$

Not available

16

MTD 936-0160

Fl-Wash. .531" I.D. x .93" O.D.

$4.49

$

In Stock, only 1 left!

0
