129-560B190 - White Outdoor Lawn Boss 26" Walk-Behind Mower (1989)

Lawn Boss 26" Walk-Behind Mower

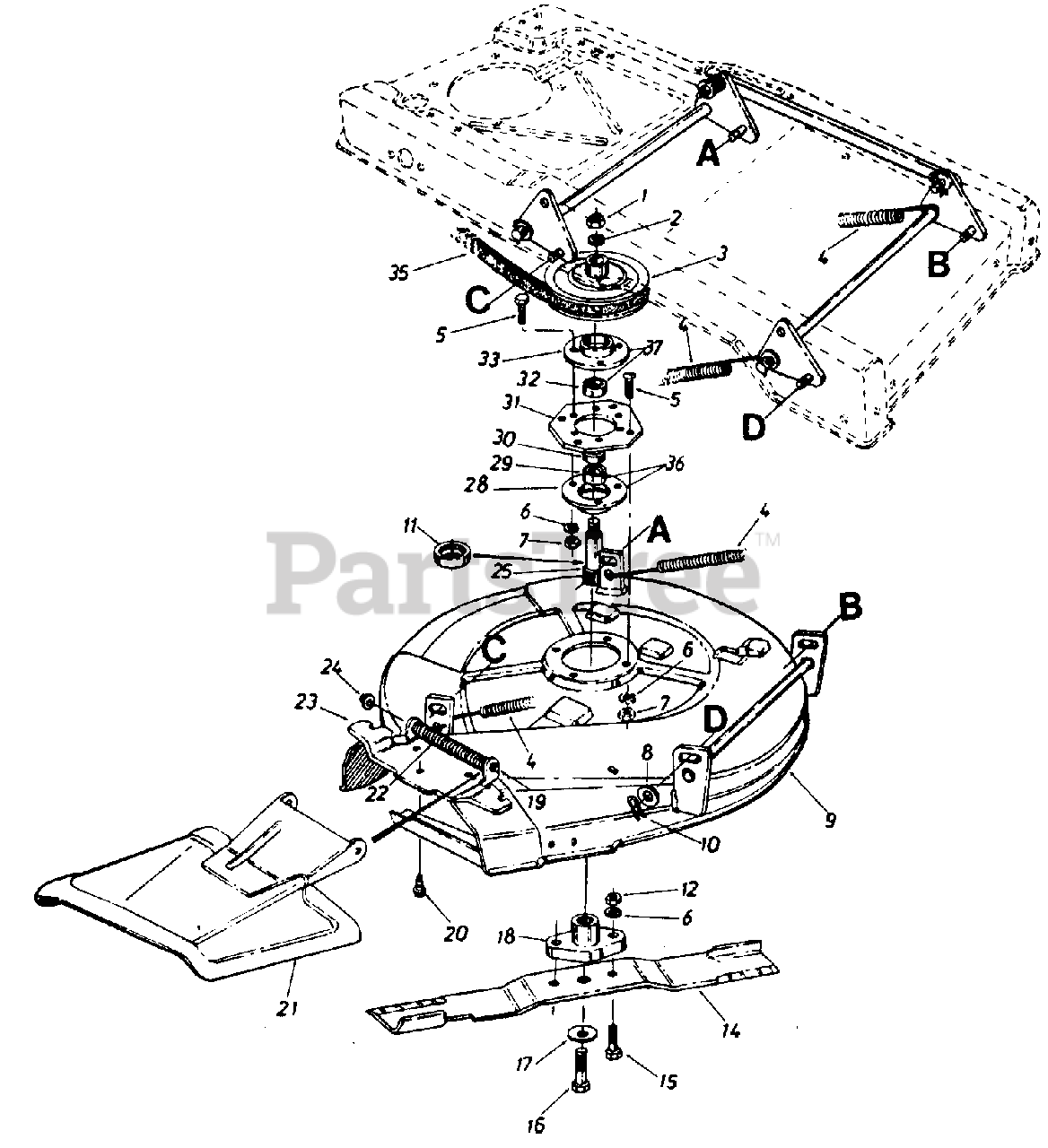

129-560B190 - White Outdoor Lawn Boss 26" Walk-Behind Mower (1989) > Parts Diagrams (4) > Deck Assembly

  • Title
712-0318

1

Hex Jam Nut 5/16-18 Thd.

Part# 712-0318

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.44

736-0317

2

Bell-Wash. .630" I.D. x 1.25" O.D.

Part# 736-0317

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.16

756-0484

3

518" "V"-Pulley .75" I.D. x 9.5"

Part# 756-0484

Not available

732-0529

4

Extension Spring .56" O.D. x 1 0.5

Part# 732-0529

OEM Warranty Repair Part for White Outdoor

Not available

710-0118

5

Hex Bolt 5/16-18 x .75" Lg.*

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

736-0119

6

L-Wash. 5/16" I.D.*

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-0267

7

Hex Nut 5/16-18 Thd.*

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.87

736-0272

8

Fl-Wash. .510" I.D. x 1.0" O.D.

Part# 736-0272 (Superseded to 936-0272)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.20

16499

9

26" Deck Ass'y.

Part# 16499

Not available

714-0101

10

Inter. Cotter Pin 1/2" Dia.

Part# 714-0101 (Superseded to 914-0101)

OEM Warranty Repair Part for White Outdoor

Not available

13703

11

Bearing Shield

Part# 13703

OEM Warranty Repair Part for White Outdoor

Not available

712-0123

12

Hex Nut 5/16-24 Thd.*

Part# 712-0123 (Superseded to 912-3057)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

742-0147

14

Blade 26"

Part# 742-0147 (Superseded to 942-0147)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $13.73

710-0888

15

Hex Bolt Special 5/16-24 x 1.0" Lg.

Part# 710-0888

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

710-0152

16

Hex Bolt 3/8-24 x 1.00" Lg.

Part# 710-0152 (Superseded to 710-1039)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0356

17

Bell-Wash. .391" I.D. x 1.38" O.D.

Part# 736-0356 (Superseded to 936-0356)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.66

748-0300

18

Blade Adapter

Part# 748-0300

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.48

711-0571

19

Hinge Pin

Part# 711-0571

OEM Warranty Repair Part for White Outdoor

Not available

710-0599

20

Hex Wash. Hd. TT-Scr. 1/4-20

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

11571

21

Chute Cover Ass'y.

Part# 11571

OEM Warranty Repair Part for White Outdoor

Not available

732-0261

22

Torsion Spring

Part# 732-0261

OEM Warranty Repair Part for White Outdoor

Not available

11396

23

Adapter Plate

Part# 11396

OEM Warranty Repair Part for White Outdoor

Not available

726-0106

24

Cap Speed Nut 1/4" Rod

Part# 726-0106 (Superseded to 926-0106)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.50

738-0578

25

Blade Spindle 4.42" Lg.

Part# 738-0578

OEM Warranty Repair Part for White Outdoor

Not available

08253

28

Bearing Housing 1.85

Part# 08253 (Superseded to 08253B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $13.19

741-0919

29

Ball Brg. .787" I.D. x 1.85" O.D.

Part# 741-0919 (Superseded to 941-0919B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.76

750-0456

30

Spacer 1.0" O.D. x .790" I.D. x.350" Lg.

Part# 750-0456 (Superseded to 950-0456)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

16490

31

Spindle Mounting Plate

Part# 16490

OEM Warranty Repair Part for White Outdoor

Not available

741-0919

32

Ball Brg. .787" I.D. x 1.85" O.D.

Part# 741-0919 (Superseded to 941-0919B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.76

15296

33

Open Brg. Housing 1.85

Part# 15296 (Superseded to 15296A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.80

754-0326

35

"V"-Belt

Part# 754-0326 (Superseded to 954-0326)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $46.32

741-0163

36

Brg. Hsg. Ass'y.

Part# 741-0163 (Superseded to 741-0163A)

Note: (Incl. Ref. 28 & 29)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $31.74

15297

37

Brg. Hsg. Ass'y.

Part# 15297 (Superseded to 15297A)

Note: (Incl. Ref. 32 & 33)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $48.61
