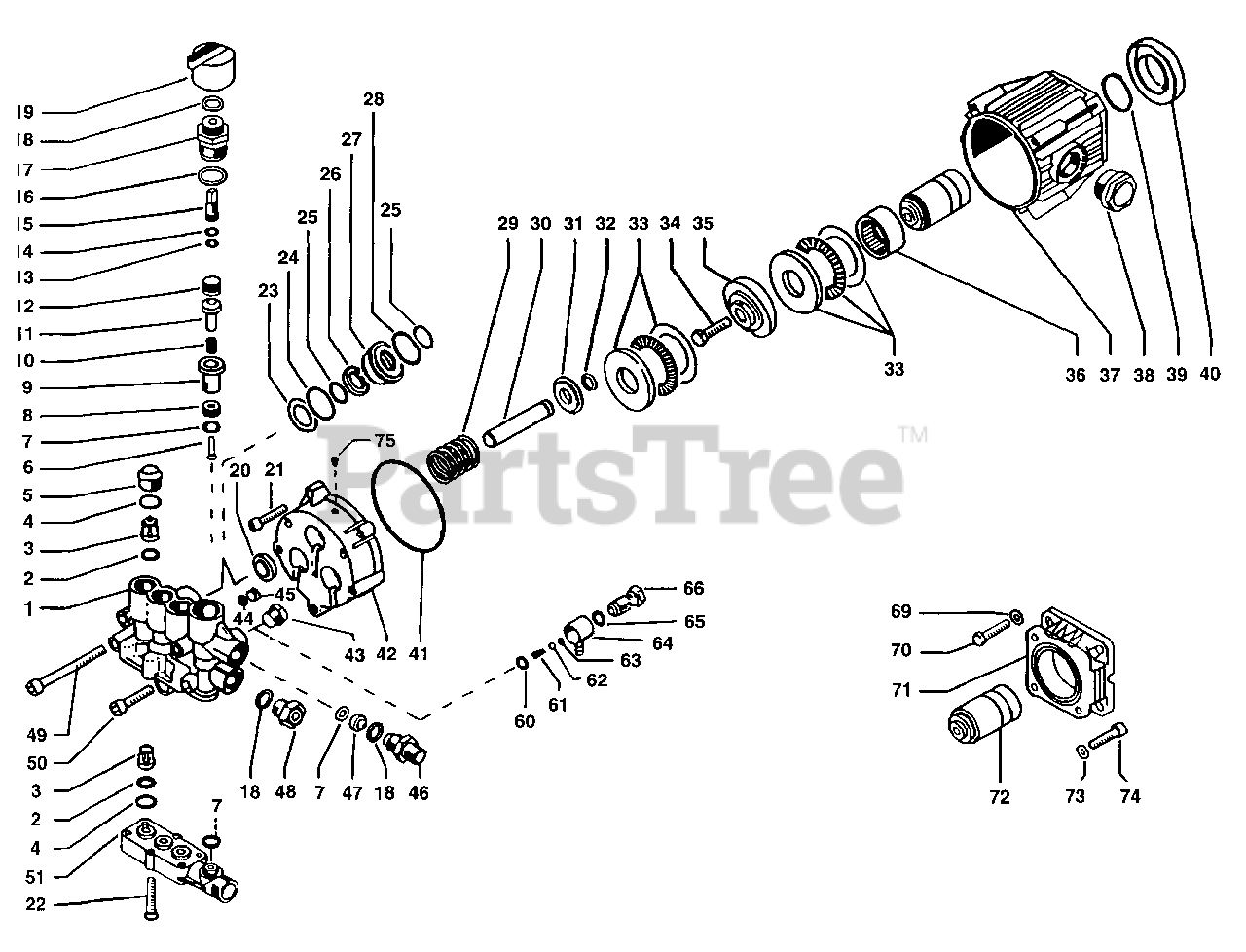

1292-0 - Generac 2,300 PSI Pressure Washer Pump Parts Diagram

2,300 PSI Pressure Washer

Pump Parts Diagram

  • Title

1

Briggs & Stratton 100B3699

Manifold
(Superseded to 100B3699GS)

$284.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 101B3699

O-ring 12.42 x 1.78

$

$

Currently unavailable

3

Briggs & Stratton 102B3699

Valve unit
(Superseded to 102B3699GS)

$18.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 103B3699

O-ring 5.60 x 1.78
(Superseded to 103B3699GS)

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 104B3699

Valve cap
(Superseded to 104B3699GS)

$13.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 105B3699

Unloader valve screw
(Superseded to 105B3699GS)

$20.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 106B3699

O-ring 9.92 x 2.62
(Superseded to 106B3699GS)

$3.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 107B3699

Valve seat
(Superseded to 107B3699GS)

$40.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 108B3699

Spacer
(Superseded to 108B3699GS)

$8.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 119B3699

Spring
(Superseded to 119B3699GS)

$26.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 110B3699

Unloader piston
(Superseded to 110B3699GS)

$63.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 187292GS

Seal

$7.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 112B3699

O-ring
(Superseded to 112B3699GS)

$3.49

$

In Stock, only 1 left!

0

14

Briggs & Stratton 113B3699

Anti-extrusion ring
(Superseded to 113B3699GS)

$4.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 114B3699

Unloader stem
(Superseded to 114B3699GS)

$46.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 115B3699

O-ring

$

$

Currently unavailable

17

Briggs & Stratton 116B3699

Guide
(Superseded to 116B3699GS)

$112.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 117B3699

O-ring

$

$

Currently unavailable

19

Briggs & Stratton 118B3699

Regulating knob
(Superseded to 118B3699GS)

$9.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 119B3699

Oil seal
(Superseded to 119B3699GS)

$26.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 120B3699

Screw, M6 x 30
(Superseded to 120B3699GS)

$5.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 121B3699

Screw, M6 x 30

$

$

Currently unavailable

23

Briggs & Stratton 122B3699

Head ring
(Superseded to 122B3699GS)

$6.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 123B3699

O-ring
(Superseded to 123B3699GS)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 124B3699

O-ring

$

$

Currently unavailable

26

Briggs & Stratton 125B3699

Packing
(Superseded to 125B3699GS)

$6.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 126B3699

Retainer 15mm
(Superseded to 126B3699GS)

$47.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 127B3699

O-ring

$

$

Currently unavailable

29

Briggs & Stratton 128B3699

Spring 33 x 56
(Superseded to 128B3699GS)

$86.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 129B3699

Piston assembly
(Superseded to 129B3699GS)

$136.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 130B3699

Spring plate
(Superseded to 130B3699GS)

$39.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 131B3699

Spring plate retainer
(Superseded to 131B3699GS)

$26.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 132B3699

Roller Bearing
(Superseded to 132B3699GS)

$148.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 133B3699

Screw, M8 x 28

$

$

Currently unavailable

35

Briggs & Stratton 134B3699

Wobble plate
(Superseded to 134B3699GS)

$176.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 135B3699

Bearing bushing
(Superseded to 135B3699GS)

$96.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 136B3699

Crankcase
(Superseded to 136B3699GS)

$

$

Not available

38

Briggs & Stratton 137B3699

Sight glass

$

$

Currently unavailable

39

Briggs & Stratton 138B3699

Snap ring
(Superseded to 138B3699GS)

$8.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 139B3699

Oil seal
(Superseded to 139B3699GS)

$33.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 140B3699

O-ring

$

$

Currently unavailable

42

Briggs & Stratton 141B3699

Piston guide
(Superseded to 141B3699GS)

$188.99

$

Usually ships in 2-12 days

0

43

UNKNOWN

$

$

Not available

44

Briggs & Stratton 142B3699

Plug, M14 x 1.5 x 9mm

$

$

Currently unavailable

44

Briggs & Stratton 143B3699

Plug, 10mm
(Superseded to 143B3699GS)

$18.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 144B3699

O-ring
(Superseded to 144B3699GS)

$4.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 145B3699

Nipple, M22 x 1.5
(Superseded to 145B3699GS)

$71.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 146B3699

Orifice, 1.8mm
(Superseded to 146B3699GS)

$33.99

$

In Stock, only 1 left!

0

48

Briggs & Stratton 147B3699

Plug, 3/8"
(Superseded to 147B3699GS)

$7.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 148B3699

Screw, M8 x 70
(Superseded to 148B3699GS)

$10.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 149B3699

Screw, M8 x 25
(Superseded to 149B3699GS)

$6.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 150B3699

Inlet manifold
(Superseded to 150B3699GS)

$

$

Not available

60

Briggs & Stratton 151B3699

O-ring

$

$

Currently unavailable

61

Briggs & Stratton 152B3699

Spring, conical

$

$

Currently unavailable

62

Briggs & Stratton 153B3699

Ball, 7/32"

$

$

Currently unavailable

63

Briggs & Stratton 154B3699

O-ring

$

$

Currently unavailable

64

Briggs & Stratton 155B3699

Hose barb

$

$

Currently unavailable

65

Briggs & Stratton 156B3699

O-ring
(Superseded to 11292294PGS)

$4.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 157B3699

Inspector housing
(Superseded to 157B3699GS)

$47.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 158B3699

Washer

$

$

Currently unavailable

70

Briggs & Stratton 159B3699

Screw
(Superseded to 159B3699GS)

$8.49

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 160B3699

Gas mounting flange
(Superseded to 160B3699GS)

$71.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 161B3699

Crankshaft
(Superseded to 161B3699GS)

$341.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 162B3699

Washer

$

$

Currently unavailable

74

Briggs & Stratton 163B3699

Screw

$

$

Currently unavailable

75

Briggs & Stratton 164B3699

Vent plug
(Superseded to 164B3699GS)

$46.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 201B3699

High Pressure Seal Repair Kit
(Superseded to 201B3699GS)

Note: (Includes items 23-28, Assy;s In Kit 1)

$54.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 202B3699

Check Valve C / O-Ring Repair Kit
(Superseded to 202B3699GS)

Note: (Includes items 4, 5, Assy's In Kit 4)

$59.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 203B3699

Check Valve / O-Ring Repair Kit
(Superseded to 203B3699GS)

Note: (Includes items 2, 3, Assy In Kit 6)

$96.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 204B3699

Oil Seal Repair Kit
(Superseded to 204B3699GS)

Note: (Includes item 20, Assy's In Kit 3)

$75.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 205B3699

Unloader Repair Kit

Note: (Includes items 6-18, Assy's In Kit 3)

$

$

Currently unavailable
