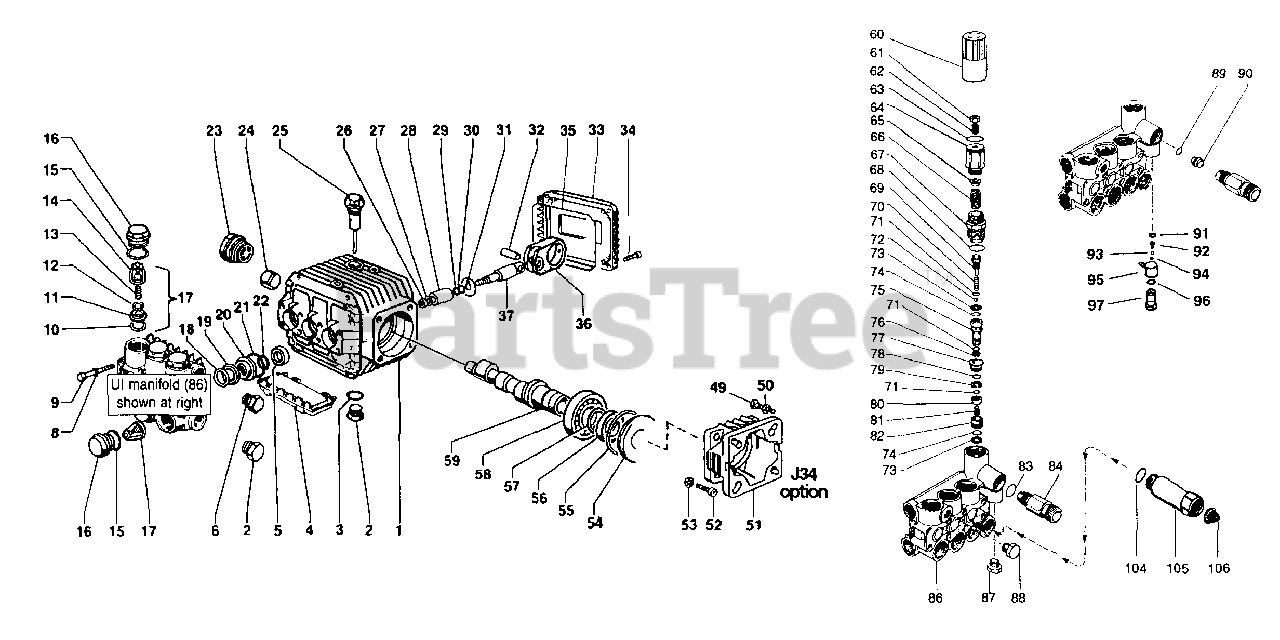

1293-0 - Generac 2,700 PSI Pressure Washer Pump Parts Diagram

2,700 PSI Pressure Washer

Pump Parts Diagram

  • Title

1

Briggs & Stratton 100B3169

Crankcase

$

$

Currently unavailable

2

Briggs & Stratton 101B3169

Plug

$

$

Currently unavailable

3

Briggs & Stratton 102B3169

O-Ring

$

$

Currently unavailable

4

Briggs & Stratton 103B3169

Protector

$

$

Currently unavailable

5

Briggs & Stratton 104B3169

Oil Seal
(Superseded to 104B3169GS)

$23.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 105B3169

Plug

$

$

Currently unavailable

8

Briggs & Stratton 106B3169

Washer

$

$

Currently unavailable

9

Briggs & Stratton 107B3169

Screw

$

$

Currently unavailable

10

Briggs & Stratton 108B3169

O-Ring
(Superseded to 108B3169GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 109B3169

Valve Seat
(Superseded to 109B3169GS)

$22.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 110B3169

Valve Plate
(Superseded to 110B3169GS)

$9.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 111B3169

Spring
(Superseded to 111B3169GS)

$1.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 112B3169

Valve Cage
(Superseded to 112B3169GS)

$6.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 113B3169

O-Ring

$

$

Currently unavailable

16

Briggs & Stratton 114B3169

Valve Cap
(Superseded to 114B3169GS)

$25.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 115B3169

Valve Assy.
(Superseded to 115B3169GS)

$50.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 116B3169

Head Ring
(Superseded to 116B3169GS)

$6.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 117B3169

Packing
(Superseded to 117B3169GS)

$42.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 118B3169

Packing Retainer
(Superseded to 118B3169GS)

$51.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 119B3169

O-Ring
(Superseded to 119B3169GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 120B3169

O-Ring
(Superseded to 120B3169GS)

$2.99

$

In Stock, only 3 left!

0

23

Briggs & Stratton 121B3169

Sight Gauge

$

$

Currently unavailable

24

Briggs & Stratton 122B3169

Needle Bearing

$

$

Currently unavailable

25

Briggs & Stratton 123B3169

Oil Dip Stick

$

$

Currently unavailable

26

Briggs & Stratton 124B3169

Nut

$

$

Currently unavailable

27

Briggs & Stratton 125B3169

Washer

$

$

Currently unavailable

28

Briggs & Stratton 126B3169

Plunger

$

$

Currently unavailable

29

Briggs & Stratton 127B3169

O-Ring

$

$

Currently unavailable

30

Briggs & Stratton 128B3169

Back Up Ring

$

$

Currently unavailable

31

Briggs & Stratton 129B3169

Flinger Washer

$

$

Currently unavailable

32

Briggs & Stratton 130B3169

Conn. Rod Pin

$

$

Currently unavailable

33

Briggs & Stratton 131B3169

Crankcase Cover

$

$

Currently unavailable

34

Briggs & Stratton 132B3169

Screw

$

$

Currently unavailable

35

Briggs & Stratton 133B3169

Cover O-Ring

$

$

Currently unavailable

36

Briggs & Stratton 134B3169

Connecting Rod
(Superseded to 134B3169GS)

$115.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 135B3169

Plunger Rod

$

$

Currently unavailable

49

Briggs & Stratton 136B3169

Screw
(Superseded to 136B3169GS)

$5.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 137B3169

Washer
(Superseded to 137B3169GS)

$1.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 138B3169

Flange
(Superseded to 138B3169GS)

$86.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 139B3169

Screw

$

$

Currently unavailable

53

Briggs & Stratton 140B3169

Washer

$

$

Currently unavailable

54

Briggs & Stratton 141B3169

Spacer

$

$

Currently unavailable

55

Briggs & Stratton 142B3169

O-Ring

$

$

Currently unavailable

56

Briggs & Stratton 143B3169

Oil Seal

$

$

Currently unavailable

57

Briggs & Stratton 144B3169

Snap Ring

$

$

Currently unavailable

58

Briggs & Stratton 145B3169

Bearing

$

$

Currently unavailable

59

Briggs & Stratton 146B3169

Crankshaft
(Superseded to 146B3169GS)

$446.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 148B3169

Knob
(Superseded to 148B3169GS)

$6.49

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 148B3169

Bolt
(Superseded to 148B3169GS)

$6.49

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 149B3169

Nut
(Superseded to 149B3169GS)

$7.49

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 150B3169

O-Ring

$

$

Currently unavailable

64

Briggs & Stratton 151B3169

Pressure Regulator

$

$

Currently unavailable

65

Briggs & Stratton 152B3169

Seal
(Superseded to 152B3169GS)

$24.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 153B3169

Spring

$

$

Currently unavailable

67

Briggs & Stratton 154B3169

Bushing
(Superseded to 154B3169GS)

$83.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 155B3169

O-Ring

$

$

Currently unavailable

69

Briggs & Stratton 156B3169

Stopper
(Superseded to 156B3169GS)

$26.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 157B3169

Spring
(Superseded to 157B3169GS)

$4.49

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 158B3169

O-Ring
(Superseded to 158B3169GS)

$4.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 159B3169

Ball
(Superseded to 159B3169GS)

$11.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 160B3169

Back Up Ring
(Superseded to 160B3169GS)

$6.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 161B3169

O-Ring
(Superseded to 161B3169GS)

$9.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 162B3169

Piston
(Superseded to 162B3169GS)

$63.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 163B3169

Back Up Ring
(Superseded to 163B3169GS)

$5.99

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 164B3169

Valve Guide
(Superseded to 164B3169GS)

$16.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 165B3169

O-Ring
(Superseded to 165B3169GS)

$4.49

$

Usually ships in 2-12 days

0

79

Briggs & Stratton 166B3169

Back Up Ring
(Superseded to 166B3169GS)

$5.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 167B3169

Valve
(Superseded to 167B3169GS)

$44.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 168B3169

Screw
(Superseded to 168B3169GS)

$8.49

$

Usually ships in 2-12 days

0

82

Briggs & Stratton 169B3169

Valve Seal
(Superseded to 169B3169GS)

$54.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 170B3169

O-Ring
(Superseded to 170B3169GS)

$9.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 171B3169

Nipple

$

$

Currently unavailable

86

Briggs & Stratton 172B3169

UI Manifold
(Superseded to 172B3169GS)

$620.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 173B3169

Cap
(Superseded to 173B3169GS)

$27.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 174B3169

Cap

$

$

Currently unavailable

89

Briggs & Stratton 175B3169

O-Ring

$

$

Currently unavailable

90

Briggs & Stratton 176B3169

Nozzle

$

$

Currently unavailable

91

Briggs & Stratton 177B3169

O-Ring
(Superseded to 177B3169GS)

$3.99

$

Usually ships in 2-12 days

0

92

Briggs & Stratton 178B3169

Spring
(Superseded to 178B3169GS)

$4.49

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 179B3169

Ball
(Superseded to 179B3169GS)

$8.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 180B3169

O-Ring

$

$

Currently unavailable

95

Briggs & Stratton 197B3169

Hosebarb
(Superseded to 197B3169GS)

$8.49

$

Usually ships in 2-12 days

0

96

Briggs & Stratton 198B3169

O-Ring

$

$

Currently unavailable

97

Briggs & Stratton 199B3169

Injector Housing
(Superseded to 199B3169GS)

$58.99

$

Usually ships in 2-12 days

0

104

UNKNOWN

$

$

Not available

105

UNKNOWN

$

$

Not available

106

UNKNOWN

$

$

Not available

Briggs & Stratton 190B3169

Valve Kit Repair Kit

Note: (Incl. items 10-14, & (17), 6 ea.)

$

$

Currently unavailable

Briggs & Stratton 191B3169

Oil Seal Repair Kit

Note: (Includes item 5, 3 each)

$

$

Currently unavailable

Briggs & Stratton 192B3169

O-Ring Repair Kit
(Superseded to 192B3169GS)

Note: (Includes items 20-22, 3 each)

$310.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193B3169

O-Ring Repair Kit

Note: (Incl. items 83, 89, 91-96)

$

$

Currently unavailable

Briggs & Stratton 194B3169

O-Ring Repair Kit

Note: (Incl. items 18-22, 1 ea.)

$

$

Currently unavailable

Briggs & Stratton 195B3169

O-Ring Repair Kit

Note: (Incl. items 18, 19, 21, & 22, 3 ea.)

$

$

Currently unavailable

Briggs & Stratton 196B3169

O-Ring Repair Kit

Note: (Includes items 67-82)

$

$

Currently unavailable
