12983 - Ariens 26" Fairway Rear-Engine Rider, 6hp Tecumseh (SN: 000001 & Above) Tractor Parts List For Fairway Parts Diagram

26" Fairway Rear-Engine Rider, 6hp Tecumseh

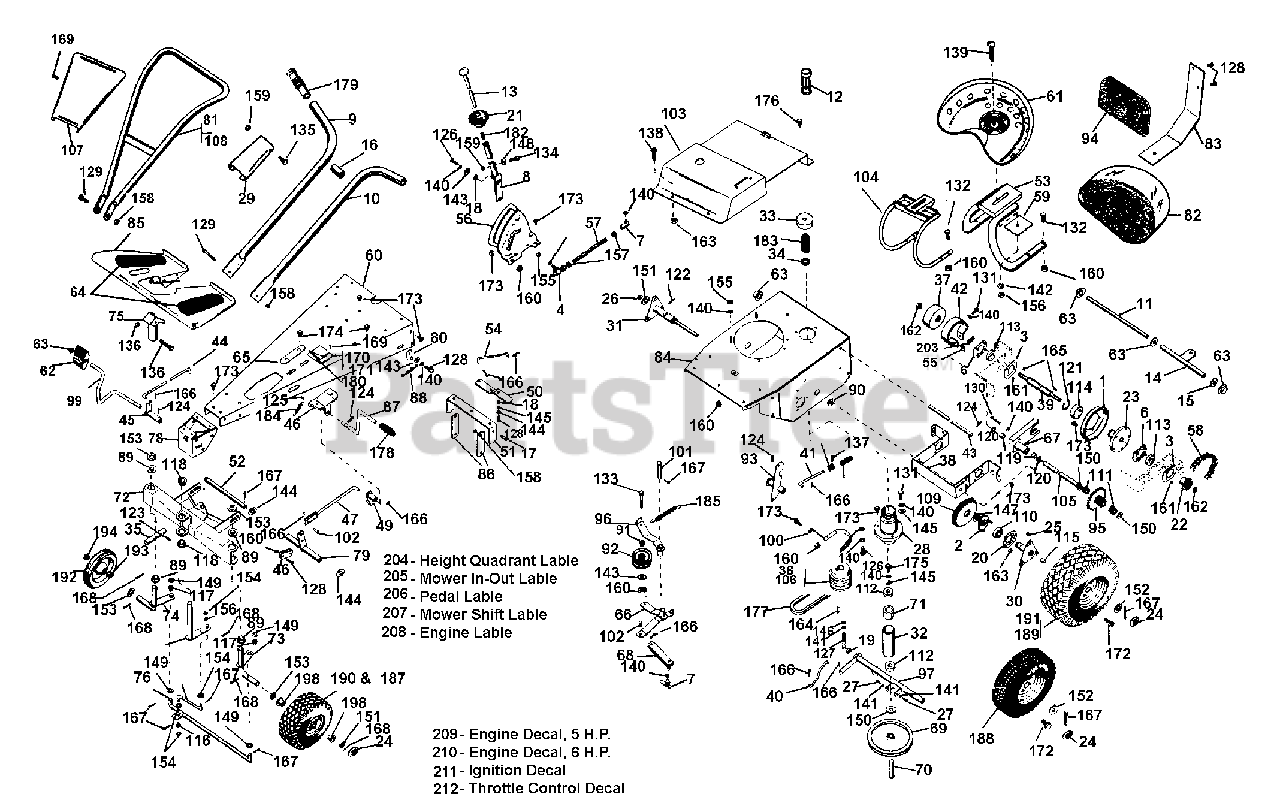

Tractor Parts List For Fairway Parts Diagram

  • Title
1

Ariens 00300300

FRICTION DISC
(Superseded to 09475300)

$29.01

$

In Stock, Qty 20+

0

2

Ariens 00301700

BEARING FLANGE

$20.07

$

In Stock, only 4 left!

0

3

Ariens 00303100

BEARING FLANGE
(Superseded to 02414100)

$18.56

$

In Stock, Qty 5

0

4

Ariens 00306000

SNAP IN BALL JOINT

$

$

Not available

5

Ariens 00307400

SET COLLAR

$

$

Not available

6

Ariens 00308500

BEARING FLANGE

$22.08

$

In Stock, only 3 left!

0

7

Ariens 00308600

BALL JOINT
(Superseded to 04110300)

$13.36

$

Usually ships in 4-12 days

0

8

Ariens 00308900

SHIFT LEVER

$

$

Not available

9

Ariens 00309500

R H HANDLE BAR
(Superseded to 00300500)

Note: (Used Only On Model(s): 12979).

$

$

Not available

10

Ariens 00309600

L H HANDLE BAR
(Superseded to 00300500)

Note: (Used Only On Model(s): 12979).

$

$

Not available

11

Ariens 00315900

HITCH SHAFT

$

$

Not available

13

Ariens 00324700

SHIFT RELEASE HANDLE

$5.53

$

Usually ships in 4-12 days

0

14

$

$

Not available

15

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$1.96

$

In Stock, only 4 left!

0

16

Ariens 00327900

SPACER

Note: (Used Only On Model(s): 12979).

$

$

Not available

17

Ariens 00411500

SHOULDER BOLT .50 X .281
(Superseded to 07000034)

$3.63

$

In Stock, Qty 10

0

18

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$10.73

$

Usually ships in 4-12 days

0

19

Ariens 01013200

FORK SPACER

$

$

Not available

20

Ariens 01014200

BEARING FLANGE

$12.24

$

In Stock, Qty 10

0

21

Ariens 01024800

SHIFT BALL

$15.21

$

Usually ships in 4-12 days

0

22

Ariens 01027600

9 TOOTH SPROCKET

$47.29

$

Usually ships in 4-12 days

0

23

Ariens 01027700

FRICTION DISC HUB
(Superseded to 01218300)

$

$

Not available

24

Ariens 01028800

HUB CAP
(Superseded to 01238200)

$14.81

$

Usually ships in 4-12 days

0

25

Ariens 01035400

HYDRAULIC DRIVE FITTING

$5.53

$

In Stock, Qty 19

0

26

Ariens 01036600

PUSHNUT

$5.53

$

Usually ships in 4-12 days

0

27

Ariens 01052200

SCREW PIN

$3.30

$

Usually ships in 4-12 days

0

28

Ariens 01200600

DRIVE SPRING HOUSING

$

$

Not available

29

Ariens 01200700

HNDLBR PANEL

Note: (Used Only On Model(s): 12979).

$

$

Not available

30

Ariens 01200800

L H AXLE
(Superseded to 51201900)

$35.16

$

Usually ships in 4-12 days

0

31

Ariens 01200900

R H AXLE
(Superseded to 51201100)

$

$

Not available

32

Ariens 01201000

DRIVE SPINDLE HOUSING

$

$

Not available

$

$

Not available

34

Ariens 01201400

SPRING RETAINER

$6.65

$

Usually ships in 4-12 days

0

35

Ariens 01202100

AXLE PIVOT PIN

$

$

Not available

37

Ariens 01202600

BRAKE DRUM

$

$

Not available

38

Ariens 01202700

CARRIER

$

$

Not available

39

Ariens 01202900

HEX SHAFT

$31.58

$

Usually ships in 4-12 days

0

40

$

$

Not available

41

Ariens 01203200

BRAKE ROD

$

$

Not available

42

Ariens 01203300

BRAKE BAND

$

$

Not available

43

Ariens 01203900

DISC FORK ROD

$5.53

$

Usually ships in 4-12 days

0

44

Ariens 01204000

FRONT CLTCH ROD

$

$

Not available

45

$

$

Not available

46

Ariens 01204400

FRONT LINK

$

$

Not available

47

Ariens 01204500

MOWER CLTCH LINK

$

$

Not available

48

Ariens 01204600

MOWER CLUTCH BRACKET

$

$

Not available

49

Ariens 01204700

MOWER OVERCENTER LEVER
(Superseded to 02607700)

$

$

Not available

50

Ariens 01204900

CLTCH TRANSFER LEVER

$

$

Not available

51

Ariens 01205000

HANGER BRACKET

$

$

Not available

52

Ariens 01206700

HANGER PIN

$

$

Not available

53

Ariens 01207000

SEAT BRACKET

$

$

Not available

54

Ariens 01207100

REAR CLTCH ROD

$

$

Not available

55

Ariens 01207400

BRAKE BAND WASHER

$

$

Not available

56

Ariens 01207500

SHIFT CNTL

$

$

Not available

57

Ariens 01207600

SHIFT LINKS

$

$

Not available

58

Ariens 01207800

CHAIN
(Superseded to 02477700)

$14.48

$

In Stock, only 4 left!

0

59

Ariens 01207900

SEAT SUPPORT WASHER

Note: (Used Only On Model(s): 12979).

$

$

Not available

60

Ariens 01208200

FRAME CHANNEL

$

$

Not available

61

Ariens 01208300

SEAT
(Superseded to 08574053)

$

$

Not available

62

$

$

Not available

63

Ariens 01208600

CAP, .50 ROD YWZC

$2.52

$

In Stock, only 2 left!

0

64

Ariens 01208900

FOOT PAD

$

$

Not available

65

Ariens 01209000

GUIDE PLATE

$

$

Not available

66

Ariens 01209400

SHIFT TRANSFER LEVER

$

$

Not available

67

Ariens 01209500

SLIDING FORK
(Superseded to 51201700)

$

$

Not available

68

Ariens 01209600

SHIFT LINK

$

$

Not available

69

Ariens 01209800

DRIVE DISK
(Superseded to 01231600)

$

$

Not available

70

Ariens 01209900

DRIVE SPINDLE
(Superseded to 01231600)

$

$

Not available

71

Ariens 01210000

BEARING SPACER .87 X .63 X 1.2

$

$

Not available

72

Ariens 01210100

FRONT AXLE ASSM

$

$

Not available

73

Ariens 01210200

L H WHEEL SPINDLE
(Superseded to 02735400)

$90.56

$

Usually ships in 4-12 days

0

74

Ariens 01210300

R H WHEEL SPINDLE

$

$

Not available

75

Ariens 01210400

CENTER STEER COL

$

$

Not available

76

Ariens 01210500

TIE ROD

$

$

Not available

77

Ariens 01210600

STEER BLOCK

$

$

Not available

78

Ariens 01210700

FRONT FRAME ASSM

$

$

Not available

79

Ariens 01210800

MOWER CLUTCH LEVER

$

$

Not available

80

Ariens 01210900

BLADE BRAKE

$

$

Not available

82

Ariens 01212000

SEAT COVER
(Superseded to 01217500)

$

$

Not available

84

Ariens 01212200

REAR FRAME

$

$

Not available

85

Ariens 01212300

FOOT REST

$

$

Not available

86

Ariens 01212400

HANGER LINK

$

$

Not available

87

Ariens 01212600

MOWER CLTCH PEDAL

$

$

Not available

88

Ariens 01212700

BRAKE RELEASE CHAIN

$

$

Not available

89

Ariens 01212800

FLANGE BUSHING

$5.53

$

Usually ships in 4-12 days

0

90

Ariens 01212900

FLANGE BUSHING

$5.53

$

Usually ships in 4-12 days

0

91

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.30

$

In Stock, only 1 left!

0

92

Ariens 01213200

IDLER
(Superseded to 52007000)

$44.55

$

In Stock, Qty 14

0

93

Ariens 01213400

BRAKE BELLCRNK
(Superseded to 51200300)

$

$

Not available

95

Ariens 01214100

PINION & SPROCKET
(Superseded to 51202900)

$

$

Not available

96

Ariens 01214200

IDLER ARM

$5.53

$

Usually ships in 4-12 days

0

97

$

$

Not available

98

Ariens 01214500

STEERING LINK

$

$

Not available

99

$

$

Not available

100

Ariens 01214700

REAR BELT FINGER

$

$

Not available

101

Ariens 01215000

PIN-CLEVIS .500 X 3.250

$

$

Not available

102

Ariens 01215100

CLEVIS PIN

$

$

Not available

105

Ariens 01215600

CARRIER SHFT

$

$

Not available

106

Ariens 01215700

ENGINE SHEAVE

$

$

Not available

109

Ariens 61299900

DIFFERENTIAL ASSEMBLY
(Superseded to 51202000)

$

$

Not available

110

Ariens 05402600

BRG-BALL ??X??X??
(Superseded to 05409300)

$39.07

$

In Stock, Qty 19

0

111

Ariens 05403800

BRG-NEEDLE .625X.812X.50

$20.07

$

Usually ships in 4-12 days

0

112

Ariens 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$13.36

$

In Stock, Qty 20+

0

113

Ariens 05408000

BRG-BALL .500X1.38X.437

$20.07

$

In Stock, Qty 12

0

114

Ariens 05408300

BRG-BALL 1.25X2.18X.63

$

$

Not available

115

Ariens 05502900

BSHG-SLV .562X.625X.625 BRZ

$6.65

$

In Stock, only 2 left!

0

116

Ariens 05503600

BSHG-FLG .372X.500X.312X.625NY

$3.63

$

In Stock, Qty 20+

0

117

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$3.63

$

In Stock, Qty 20+

0

118

Ariens 05503800

BSHG-FLG.750X1X.375X1.250 IC

$

$

Not available

119

Ariens 05504700

BSHG-SLV .625X.750X.500 BR

$5.53

$

In Stock, Qty 20+

0

120

Ariens 05603400

SEAL .625X.875X.125

$9.34

$

Usually ships in 4-12 days

0

121

Ariens 05704300

RG-RTNG-EXT 1.250X.050

$3.58

$

In Stock, Qty 10

0

122

Ariens 05800300

PIN-ROLL .188X1.25

$1.96

$

In Stock, Qty 17

0

123

Ariens 05800700

PIN-ROLL .250X1.25

$1.96

$

In Stock, Qty 6

0

124

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.40

$

In Stock, Qty 7

0

125

Ariens 05802500

PIN-GRV .188X.75 TP G

$

$

Not available

126

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.96

$

In Stock, Qty 20+

0

127

Ariens 05901700

BLT-HEX .38-24X1.25 BLKO GR5

$

$

Not available

128

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

Note: (Used Only On Model(s): 12979).

$1.96

$

In Stock, Qty 20+

0

129

Ariens 05903500

BLT-HEX .38-16X2.50 PL GR2
(Superseded to 05958400)

$3.63

$

In Stock, Qty 13

0

130

Ariens 05903600

BLT-HEX .31-24X.50 GR5
(Superseded to 05962700)

$

$

Not available

131

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.79

$

Usually ships in 4-12 days

0

132

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$2.24

$

In Stock, only 3 left!

0

133

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.24

$

Usually ships in 4-12 days

0

134

Ariens 05907200

BLT-HEX .25-20X1.25

$

$

Not available

135

Ariens 05907700

BLT-HEX .25-20X2.75 PL GR2
(Superseded to 05969900)

Note: (Used Only On Model(s): 12979).

$

$

Not available

136

Ariens 05907900

BLT-HEX .25-20X1.50

$

$

Not available

137

Ariens 06001800

SCR-SET .25-20X.50 SQHCUP HT

$

$

Not available

139

Ariens 06201400

BLT-RDHDSQNK .50-13X1.25 PL
(Superseded to 06224700)

$5.53

$

Usually ships in 4-12 days

0

140

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$2.24

$

In Stock, Qty 20+

0

141

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$2.24

$

Usually ships in 4-12 days

0

142

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.52

$

In Stock, Qty 5

0

143

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$2.18

$

In Stock, Qty 20+

0

144

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$2.52

$

In Stock, Qty 11

0

145

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$2.52

$

In Stock, Qty 14

0

146

Ariens 06402800

WSHR-FL-STL .438X1.125X.19

$

$

Not available

147

Ariens 06403600

WSHR-FL-STL .880X1.380X.062

$5.53

$

Usually ships in 4-12 days

0

148

Ariens 06403700

WSHR-FL-STL .281X1.250X.048PL

$1.96

$

Usually ships in 4-12 days

0

149

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$1.96

$

In Stock, Qty 5

0

150

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$2.24

$

In Stock, Qty 20+

0

151

Ariens 06404200

WSHR-FL-STL .755X2.000X.125
(Superseded to 06444800)

$5.53

$

Usually ships in 4-12 days

0

152

Ariens 06404500

WSHR-FL-STL .568X2.000X.125

$

$

Not available

153

Ariens 06404800

WSHR-FL-STL .755X1.375X.062 PL
(Superseded to 06441500)

$3.58

$

In Stock, Qty 20+

0

154

Ariens 06405200

WSHR-FL-STL .382X.812X.023 PL
(Superseded to 06436500)

$1.96

$

In Stock, only 4 left!

0

155

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$1.96

$

In Stock, Qty 20+

0

156

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.63

$

Usually ships in 4-12 days

0

157

Ariens 06503100

NUT-HEX .312-24 PL
(Superseded to 06529500)

$1.68

$

Usually ships in 4-12 days

0

158

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$2.24

$

In Stock, Qty 20+

0

159

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$2.24

$

In Stock, Qty 20+

0

160

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$2.52

$

In Stock, Qty 20+

0

161

Ariens 06505100

NUT-KEPS 10-24 PL
(Superseded to 06536600)

$1.96

$

In Stock, only 3 left!

0

162

Ariens 06505400

NUT-LK-CTR .50-20 PL
(Superseded to 06530000)

$2.12

$

In Stock, only 4 left!

0

163

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.96

$

In Stock, Qty 20+

0

164

Ariens 06600900

KEY-WDRF .156X.625X.25 SAE 6

$2.12

$

In Stock, only 3 left!

0

165

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.24

$

In Stock, Qty 5

0

166

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$1.96

$

In Stock, Qty 11

0

167

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$1.96

$

In Stock, Qty 14

0

168

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$1.96

$

In Stock, Qty 10

0

169

Ariens 06803100

RVT-POP.125 X .294 DOME

$

$

Not available

171

Ariens 06904500

THROTTLE CONTROL

$

$

Not available

172

Ariens 07000500

BLT-WHL .50-20X.50 GR5 PL
(Superseded to 07416900)

$11.12

$

Usually ships in 4-12 days

0

173

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.46

$

Usually ships in 4-12 days

0

174

Ariens 07001000

BLT-SCRHFWH .38-16X.50 PL

$3.58

$

Usually ships in 4-12 days

0

175

Ariens 07001400

BLT-LK .31-18X.75 GR 5

$

$

Not available

177

Ariens 07204800

V-BELT, SAE 380-RAW EDGE

$19.68

$

Usually ships in 4-12 days

0

178

$

$

Not available

179

Ariens 07500600

GRIP
(Superseded to 07500113)

Note: (Used Only On Model(s): 12979).

$5.81

$

Usually ships in 4-12 days

0

180

$5.53

$

Usually ships in 4-12 days

0

204

Ariens 07800200

HEIGHT QUADRANT LABEL

$

$

Not available

205

Ariens 07800300

MOWER IN-OUT LABEL

$

$

Not available

206

Ariens 07801700

PEDAL LABEL
(Superseded to 07859800)

$

$

Not available

207

Ariens 07801800

MOWER SHIFT LABEL

$

$

Not available

208

Ariens 07801900

ENGINE LABEL

$

$

Not available

181

Ariens 08301300

SG-COMP .1X.38X2.63 WLD 75

$

$

Not available

182

Ariens 08301500

SG-COMP ??X.44X?? WLD 10

$5.53

$

Usually ships in 4-12 days

0

183

Ariens 08302400

SG-COMP .148X1.25X2.53
(Superseded to 08305500)

$

$

Not available

184

Ariens 08302500

SG-TENS ??X.25X1.31 WLD 12 `

$

$

Not available

185

Ariens 08302600

SG-TENS .063X.44X2.81 WLD 18

$20.07

$

Usually ships in 4-12 days

0

186

Ariens 08302800

SG-COMP .067X.562X1.75 WLD.34

$

$

Not available

188

Ariens 61096000

TIRE & WHEEL ASSEMBLY CARLISLE
(Superseded to 07116500)

Note: (Used Only On Model(s): 12979).

$

$

Not available

188

Ariens 07104600

TIRE 4.10/3.50X6

Note: (Used Only On Model(s): 12979).

$

$

Not available

188

Ariens 07105000

TUBE

Note: (Used Only On Model(s): 12979).

$8.89

$

Usually ships in 4-12 days

0

188

Ariens 07105200

WHL 6 IN O.D.
(Superseded to 07103800)

Note: (Used Only On Model(s): 12979).

$

$

Not available

192

Ariens 07106900

WHL 10 IN O.D.
(Superseded to 07116500)

Note: (Used Only On Model(s): 12979).

$

$

Not available

193

Ariens 05501900

BSHG-FLG.750X1.125X1.000X1.250

Note: (Used Only On Model(s): 12979).

$

$

Not available

194

Ariens 05502000

BSHG-FLG.750X1.125X1.000X1.125

Note: (Used Only On Model(s): 12979).

$

$

Not available

203

Ariens 01214300

SPRING
(Superseded to 08302800)

$

$

Not available
