129H02-0105-E2 - Briggs & Stratton Vertical Engine Blower Housing/Shrouds, Flywheel, Rewind Starter Parts Diagram

Vertical Engine

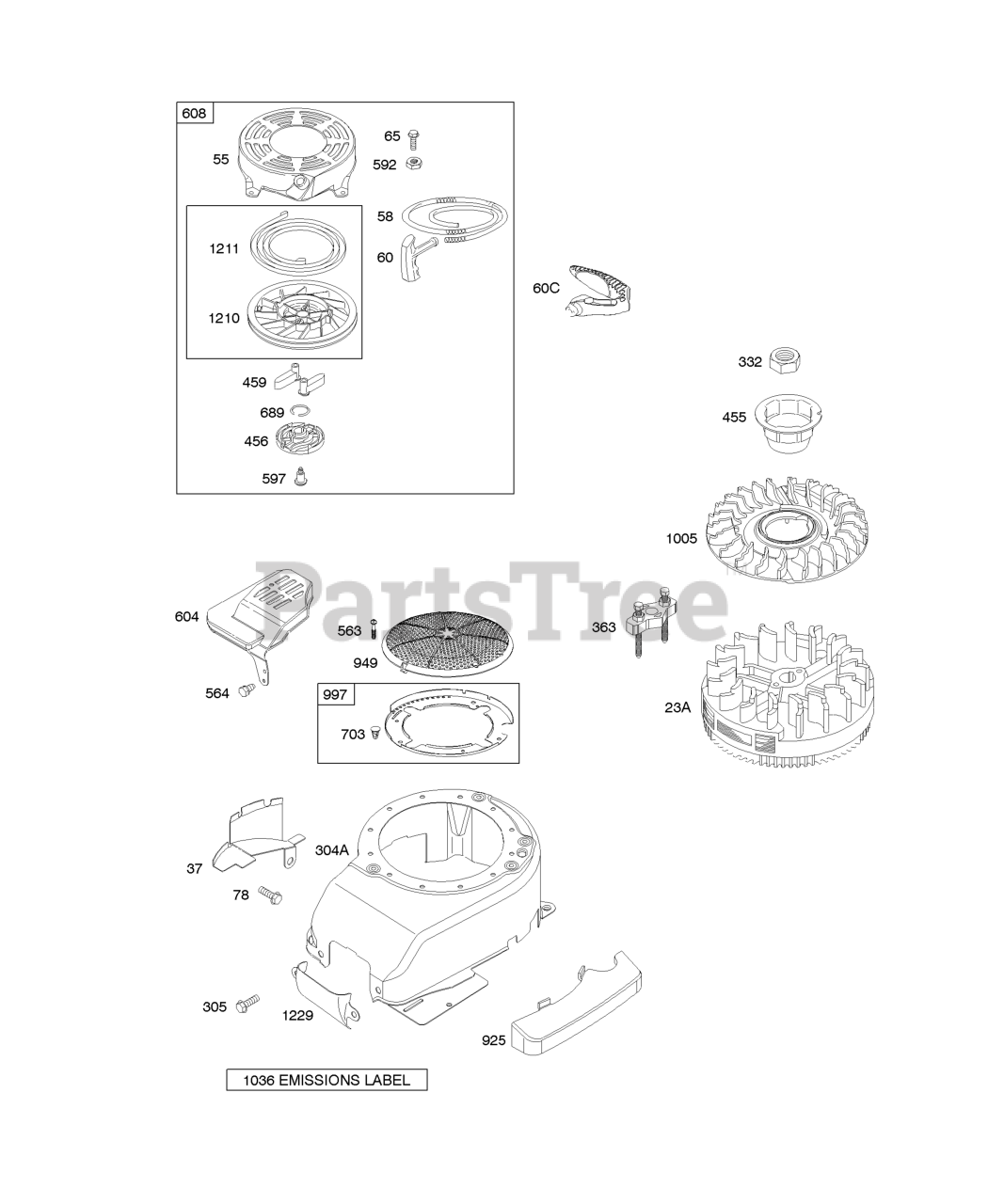

Blower Housing/Shrouds, Flywheel, Rewind Starter Parts Diagram

  • Title

23A

Briggs & Stratton 691987

Flywheel

$112.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 694086

Guard-Flywheel
(Superseded to 793756)

$10.99

$

In Stock, only 4 left!

0

55

Briggs & Stratton 691421

Housing-Rewind Starter

$64.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 697316

Rope-Starter

Note: (Cut To Required Length)

$5.99

$

In Stock, Qty 14

0

60

Briggs & Stratton 281434S

Grip-Starter Rope

$3.99

$

In Stock, Qty 12

0

60C

Briggs & Stratton 799716

Grip-Starter Rope

$10.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 690837

Screw

Note: (Rewind Starter)

$3.49

$

In Stock, Qty 18

0

78

Briggs & Stratton 691108

SCREW

Note: (Flywheel Guard)

$3.49

$

In Stock, Qty 20+

0

304A

Briggs & Stratton 695892

Housing-Blower

$103.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 691108

SCREW

Note: (Blower Housing)

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 690662

Nut

Note: (Flywheel)

$5.99

$

In Stock, Qty 8

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

Usually ships in 2-12 days

0

455

Briggs & Stratton 791960

Cup-Flywheel

$11.99

$

In Stock, only 1 left!

0

456

Briggs & Stratton 692299

Plate-Pawl Friction

$4.99

$

In Stock, Qty 20+

0

459

Briggs & Stratton 281505S

PAWL, Ratchet

$3.49

$

In Stock, Qty 20+

0

563

Briggs & Stratton 691138

Screw

Note: (Debris Screen Guard)

$3.99

$

In Stock, Qty 17

0

564

Briggs & Stratton 690664

Screw

Note: (Control Cover)

$5.49

$

In Stock, Qty 5

0

592

Briggs & Stratton 690800

Nut

Note: (Rewind Starter)

$3.99

$

In Stock, only 3 left!

0

597

Briggs & Stratton 691696

Screw

Note: (Pawl Friction Plate)

$11.99

$

In Stock, only 4 left!

0

604

Briggs & Stratton 691757

Cover-Control

$24.99

$

In Stock, only 3 left!

0

608

Briggs & Stratton 497680

Starter-Rewind

$49.99

$

In Stock, Qty 5

0

689

Briggs & Stratton 691855

SPRING, Friction

$4.49

$

In Stock, Qty 7

0

703

Briggs & Stratton 696309

Clip

$7.49

$

Usually ships in 2-12 days

0

925

Briggs & Stratton 795403

Cover-Linkage

Note: Used After Code Date 07072200

$10.99

$

Usually ships in 2-12 days

0

925

Briggs & Stratton 690595

Cover-Linkage
(Superseded to 795403)

Note: Used Before Code Date 07072300

$10.99

$

Usually ships in 2-12 days

0

949

Briggs & Stratton 696306

Guard-Debris Screen

$37.99

$

Usually ships in 2-12 days

0

997

Briggs & Stratton 696310

Shield-Debris

$20.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 691346

Fan-Flywheel

$26.99

$

Usually ships in 2-12 days

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1210

Briggs & Stratton 498144

Pulley/Spring Assembly

Note: (Pulley) (Pulley)

$19.99

$

In Stock, Qty 7

0

1211

Briggs & Stratton 498144

Pulley/Spring Assembly

Note: (Spring) (Spring)

$19.99

$

In Stock, Qty 7

0

1229

Briggs & Stratton 696308

Extension-Blower Housing

$3.99

$

Usually ships in 2-12 days

0
