129H02-0105-E2 - Briggs & Stratton Vertical Engine Carburetor, Fuel Supply Parts Diagram

Vertical Engine

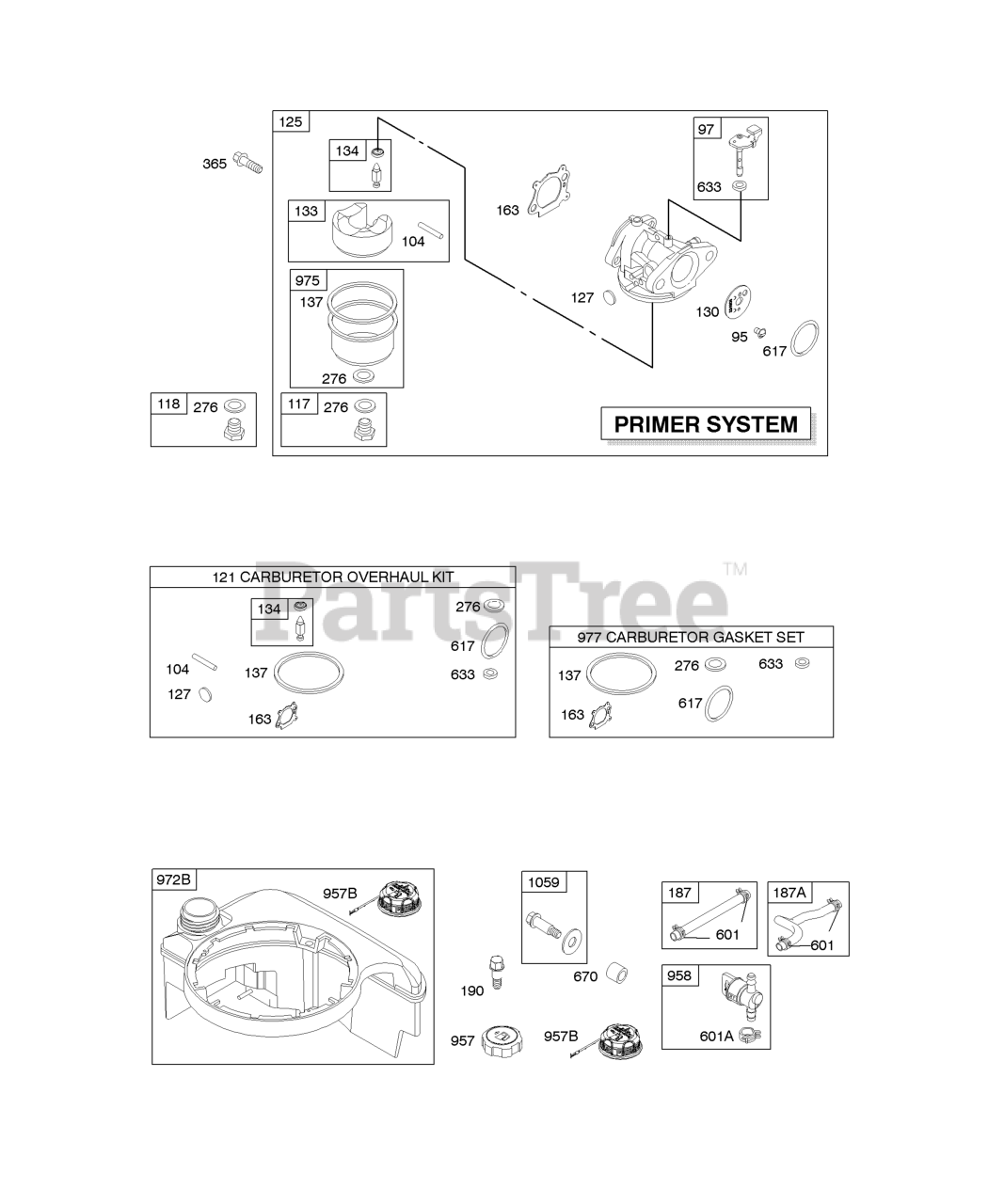

Carburetor, Fuel Supply Parts Diagram

  • Title

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 696565

Shaft-Throttle

$15.99

$

In Stock, only 4 left!

0

104

Briggs & Stratton 691242

Pin-Float Hinge
(Superseded to 797622)

$3.99

$

In Stock, only 4 left!

0

117

Briggs & Stratton 498978

Jet-Main

Note: (Standard)

$16.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 498975

Jet-Main
(Superseded to 798660)

Note: (High Altitude)

$19.99

$

In Stock, Qty 5

0

121

Briggs & Stratton 498260

Kit-Carb Overhaul

$16.99

$

In Stock, Qty 20+

0

125

Briggs & Stratton 498170

Carburetor
(Superseded to 799868)

Note: (Primer System)

$63.99

$

In Stock, only 4 left!

0

127

Briggs & Stratton 694468

Plug-Welch

$4.49

$

In Stock, Qty 7

0

130

Briggs & Stratton 696564

Valve-Throttle

$8.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 10

0

134

Briggs & Stratton 398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653S

Gasket-Air Cleaner
(Superseded to 795629)

$3.49

$

In Stock, Qty 20+

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 791873

Line-Fuel

Note: (Molded)

$15.99

$

In Stock, only 2 left!

0

190

Briggs & Stratton 690940

Screw

Note: (Fuel Tank)

$3.99

$

In Stock, only 4 left!

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: (Main Jet)

$6.49

$

In Stock, Qty 20+

0

365

Briggs & Stratton 691688

Screw

Note: (Carburetor)

$4.49

$

In Stock, Qty 5

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

601A

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

617

Briggs & Stratton 270344S

Seal-O Ring

Note: (Intake Manifold)

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 691321

Seal-Choke/Thr Shaft

Note: (Throttle)

$4.99

$

In Stock, only 2 left!

0

670

Briggs & Stratton 692294

Spacer-Fuel Tank

$4.99

$

In Stock, Qty 12

0

957

Briggs & Stratton 397974S

Cap-Fuel Tank
(Superseded to 796577)

Note: (Plastic)

$16.99

$

In Stock, Qty 13

0

957B

Briggs & Stratton 699985

Cap-Fuel Tank
(Superseded to 796577)

Note: (Plastic)

$16.99

$

In Stock, Qty 13

0

958

Briggs & Stratton 698183

VALVE, Fuel Shut Off(PLT)

Note: (Plastic)

$8.49

$

In Stock, Qty 6

0

972B

Briggs & Stratton 699374

Tank-Fuel

Note: (Plastic)

$64.99

$

In Stock, Qty 11

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$6.49

$

In Stock, Qty 18

0

977

Briggs & Stratton 498261

Gasket Set-Carburetor
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

1059

Briggs & Stratton 692311

Kit-Screw/Washer

$7.49

$

In Stock, Qty 10
