12A-373F136 - Yard Machines Walk-Behind Mower (1999) (Homebase) Front Axle Assembly & Height Adjuster Parts Diagram

Walk-Behind Mower

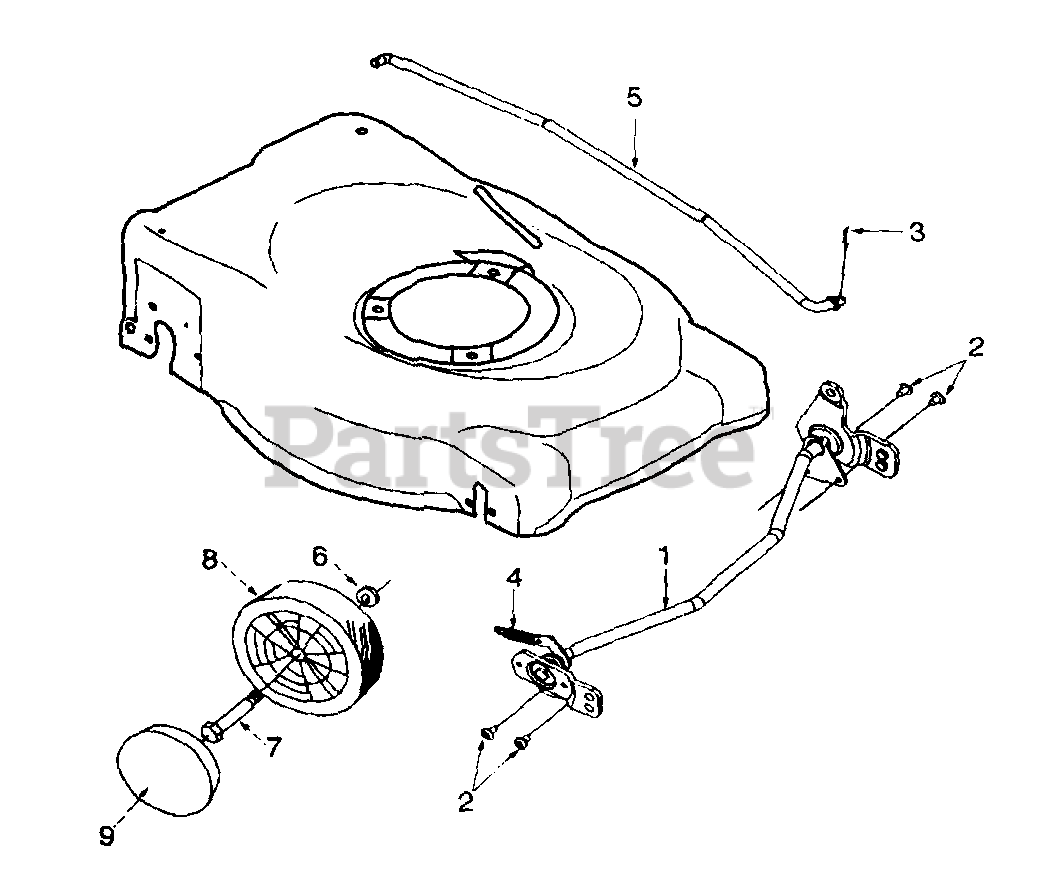

Front Axle Assembly & Height Adjuster Parts Diagram

  • Title

1

MTD 611-0060

Axle Ass'y, Frt.
(Superseded to 611-0060-0637)

Variations

MTD 611-0060-0637

AXLE: ASM. FRONT - POWDER BLACK (0637)

$114.99

$

Usually ships in 3-6 days

0

$114.99

$

Usually ships in 3-6 days

0

2

MTD 710-1348

AB Pan Scr. 1/4-14 x .50 Lg.

$7.49

$

In Stock, only 3 left!

0

3

MTD 714-0104

Cotter Pin .072 x 1.12 Lg.

$4.49

$

In Stock, Qty 17

0

4

MTD 732-0820

Ext. Spring
(Superseded to 932-0820)

$11.99

$

Usually ships in 3-6 days

0

5

MTD 747-0920A

Adj. Rod

$

$

Not available

6

MTD 736-0105

Spr. Washer

$4.99

$

In Stock, Qty 20+

0

7

MTD 738-0102

Shl. Bolt .498 x 1.445 3/8-16

$10.99

$

In Stock, Qty 5

0

8

MTD 634-0020

Front Wheels 8" x 1.75"

Note: Bar Tread. Wheel Ass'y Complete

$42.99

$

In Stock, Qty 9

0

MTD 634-0020

Rear Wheels 8" x 1.75"

Note: Bar Tread. Wheel Ass'y Complete

$42.99

$

In Stock, Qty 9

0

MTD 734-1268

Front Wheels 8" x 1.75"

Note: "T" Tread. Wheel Ass'y Complete

$75.99

$

In Stock, only 2 left!

0

MTD 741-0484

Bearings 8" x 1.75"
(Superseded to 941-0484)

Note: "T" Tread

$7.99

$

Usually ships in 3-6 days

0

MTD 734-1412

Rear Wheels 8" x 1.75"

Note: "T" Tread. Wheel Ass'y Complete

$

$

Not available

MTD 734-1790

Front Wheels 8" x 2"

Note: "S" Wave. Wheel Ass'y Complete

$

$

Not available

MTD 741-0484

Bearings 8" x 2"
(Superseded to 941-0484)

Note: "S" Wave

$7.99

$

Usually ships in 3-6 days

0

MTD 734-1791

Rear Wheels 8" x 2"

Note: "S" Wave. Wheel Ass'y Complete

$

$

Not available

MTD 734-1821

Front Wheels 8" x 2" (Yellow Rim)
(Superseded to 753-08093)

Note: "S" Wave. Wheel Ass'y Complete

$48.99

$

In Stock, only 4 left!

0

MTD 741-0484

Bearings 8" x 2" (Yellow Rim)
(Superseded to 941-0484)

Note: "S" Wave

$7.99

$

Usually ships in 3-6 days

0

MTD 734-1826

Rear Wheels 8" x 2" (Yellow Rim)

Note: "S" Wave. Wheel Ass'y Complete

$35.99

$

In Stock, only 2 left!

0

MTD 734-1826

Front Wheels 8" x 2" (Yellow Rim)

Note: "S" Wave. Wheel Ass'y Complete

$35.99

$

In Stock, only 2 left!

0

MTD 734-1826

Rear Wheels 8" x 2" (Yellow Rim)

Note: "S" Wave

$35.99

$

In Stock, only 2 left!

0

MTD 734-1819

Front Wheels 8" x 2" (Yellow Rim)
(Superseded to 734-1978)

Note: Link Tread

$51.99

$

Usually ships in 3-6 days

0

MTD 741-0484

Bearings 8" x 2" (Yellow Rim)
(Superseded to 941-0484)

Note: Link Tread

$7.99

$

Usually ships in 3-6 days

0

MTD 734-1824

Rear Wheels 8" x 2" (Yellow Rim)
(Superseded to 734-1979)

Note: Link Tread

$33.99

$

Usually ships in 3-6 days

0

MTD 720-0249

Hub Cap, Gray (3-1/2" Dia.)
(Superseded to 920-0249)

Note: (Optional)

$

$

Not available

MTD 731-0354

Hub Cap, Black (4-1/4" Dia.)

Note: (Optional)

$

$

Not available

MTD 731-0355A

Hub Cap, Gray (4-1/4" Dia.)

Note: (Optional)

$

$

Not available

MTD 731-0981A

Hub Cap, Gray (5-1/2" Dia.)
(Superseded to 731-0981C)

Note: (Optional)

$11.99

$

In Stock, Qty 6

0

MTD 731-1426

Hub Cap, Yellow (5-1/2" Dia.)
(Superseded to 731-1426B)

Note: (Optional)

$8.99

$

Usually ships in 3-6 days

0

9

UNKNOWN

$

$

Not available
