12A-378Q795 - MTD Pro Walk-Behind Mower (2004) Axle Assemblies Parts Diagram

Pro Walk-Behind Mower

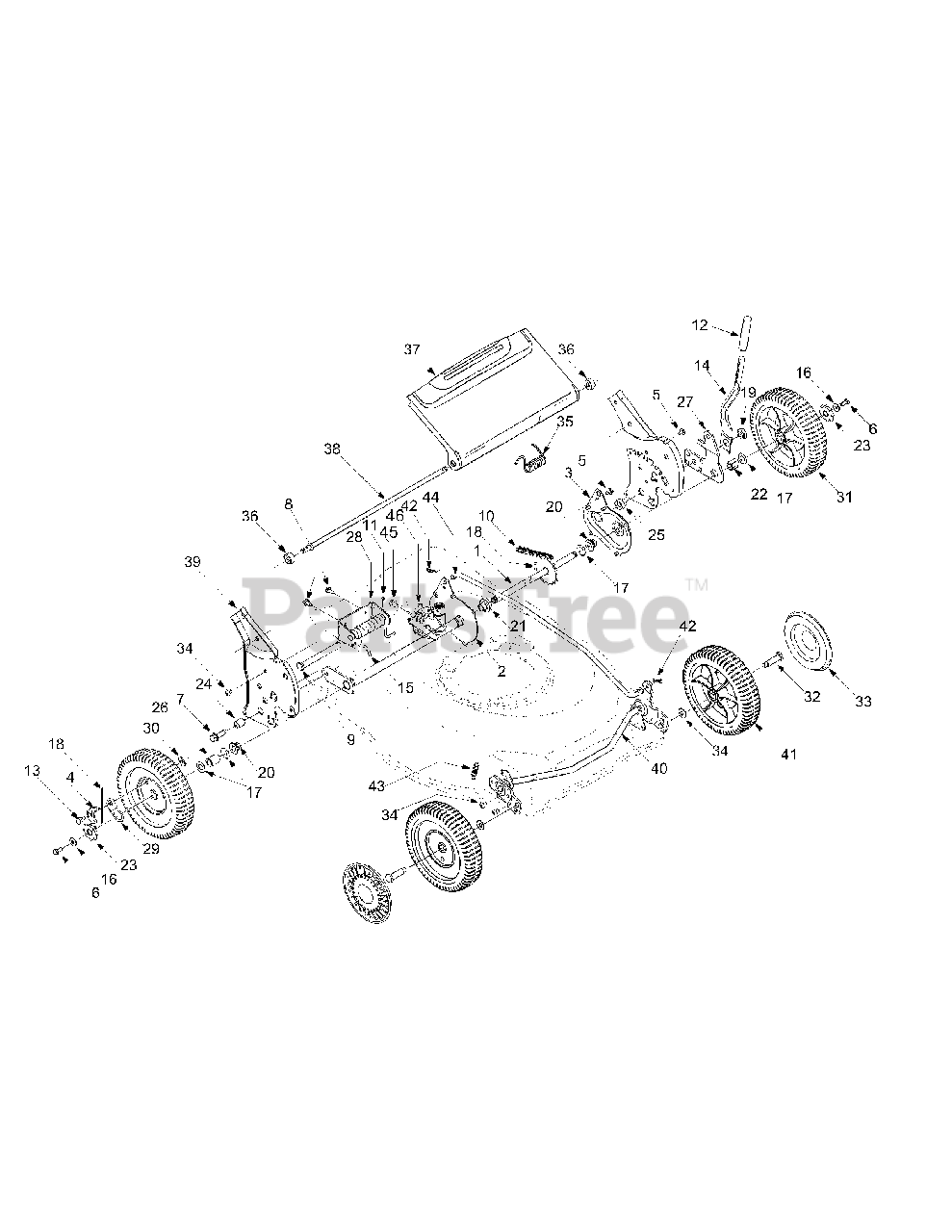

Axle Assemblies Parts Diagram

  • Title

1

MTD 638-0005

Rear Axle Assembly

$

$

Not available

2

MTD 682-7518-0637

Trans axle Assembly

$

$

Not available

3

MTD 682-7524

Chain Cover Assembly

Variations

682-7524-0483

MTD 682-7524-0483

COVER ASS'Y-CHAIN - CHARCOAL GRAY (0483)

$

$

Not available

682-7524-0638

MTD 682-7524-0638

No Longer Available COVER ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

682-7524-0650

MTD 682-7524-0650

No Longer Available COVER ASM - RED METALLIC (0650)

$

$

Not available

682-7524-0662

MTD 682-7524-0662

No Longer Available COVER ASM - OYSTER GRAY (0662)

$

$

Not available

682-7524-0665

MTD 682-7524-0665

COVER ASS'Y-CHAIN - YARDMAN GREEN (0665)

$

$

Not available

682-7524-0691

MTD 682-7524-0691

COVER ASS'Y-CHAIN - BLACK JACK (0691)

$

$

Not available

682-7524-0716

MTD 682-7524-0716

No Longer Available COVER ASM - CUB YELLOW-99 (0716)

$

$

Not available

$

$

4

MTD 748-0381

Pawl RH

$12.99

$

In Stock, only 4 left!

0

4

MTD 948-0188B

Pawl LH

$

$

Not available

5

MTD 710-0653

TT Screw 1/4-20 x 0.375"

$4.99

$

In Stock, only 1 left!

0

6

MTD 710-0751

Hex Bolt 1/4-20 x 0.620"

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-1315

TT Screw 3/8-16 x 1.25"

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-1652

TT Screw 1/4-20 x 0.625"

$4.49

$

In Stock, Qty 20+

0

9

MTD 911-0835

Clevis Pin

$13.99

$

In Stock, only 2 left!

0

10

MTD 913-0421

Chain

$

$

Not available

11

MTD 914-0474

Cotter Pin
(Superseded to 714-0474)

$

$

Not available

12

MTD 720-0230

Foam Grip

$7.99

$

In Stock, only 1 left!

0

13

MTD 938-0137A

Shoulder Screw
(Superseded to 738-0137A)

$11.99

$

In Stock, only 1 left!

0

14

MTD 732-0803A

Height Adjustment Lever

$16.99

$

In Stock, Qty 5

0

15

MTD 732-0818

Torsion Spring RH

$

$

Not available

16

MTD 736-0270

Bell Washer

$4.49

$

In Stock, Qty 20+

0

17

MTD 936-0369

Flat Washer
(Superseded to 736-0369)

$4.99

$

In Stock, Qty 17

0

18

MTD 10622BP

Ratchet Spring
(Superseded to 10622B)

$5.49

$

In Stock, Qty 20+

0

19

MTD 938-0529

Shoulder Nut

$11.99

$

In Stock, only 4 left!

0

20

MTD 741-0324A

Hex Flange Bearing

$8.49

$

In Stock, only 2 left!

0

21

MTD 941-0522

Hex Flange Bearing
(Superseded to 741-0522)

$9.49

$

In Stock, only 1 left!

0

22

MTD 741-0978

Hex Slev Bearing

$4.99

$

In Stock, only 2 left!

0

23

MTD 948-0318

Ratchet Wheel

$10.99

$

In Stock, only 4 left!

0

24

MTD 750-0807

Spacer

$6.99

$

Usually ships in 3-6 days

0

25

MTD 950-1056

Shoulder Spacer

$7.99

$

Usually ships in 3-6 days

0

26

MTD 750-1075

Slev Spacer

Note: NLA

$

$

Not available

27

MTD 782-0566B-0637

Pivot Arm

$47.99

$

In Stock, only 1 left!

0

28

MTD 782-0568-0637

Lift Assist Bracket
(Superseded to 782-0568B-0637)

$

$

Not available

29

MTD 16855

Pawl Plate: Ratchet

$6.99

$

In Stock, Qty 17

0

30

MTD 912-0414

Top Lock Weld Nut
(Superseded to 712-0414)

$4.49

$

In Stock, Qty 20+

0

31

MTD 634-0020

Wheel

$42.99

$

In Stock, Qty 8

0

32

MTD 938-0102

Shoulder Screw
(Superseded to 738-0102)

$

$

Not available

33

MTD 731-0981C

Hubcap

$11.99

$

In Stock, Qty 6

0

34

MTD 710-1348

AB Screw 1/4-14 x 0.5"

$7.49

$

In Stock, only 3 left!

0

35

MTD 932-04074

Torsion Spring LH

$

$

Not available

36

MTD 950-1068

Shoulder Spacer

$

$

Not available

37

MTD 782-7599B-0637

Grass Bag Door

$

$

Not available

38

MTD 747-0922

Pivot Rod

$

$

Not available

39

MTD 782-3030

Handle Bracket RH

Variations

782-3030-0637

MTD 782-3030-0637

No Longer Available BRACKET HA - POWDER BLACK (0637)

$

$

Not available

782-3030-0638

MTD 782-3030-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

782-3030-0716

MTD 782-3030-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

39

MTD 782-3029

Handle Bracket LH

Variations

782-3029-0637

MTD 782-3029-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

782-3029-0638

MTD 782-3029-0638

No Longer Available BRACKET HA - MTD/TROY-BILT RED (0638)

$

$

Not available

782-3029-0716

MTD 782-3029-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

40

MTD 611-0060-0637

Front Axle

$114.99

$

Usually ships in 3-6 days

0

41

MTD 736-0105

Bell Washer

$4.99

$

In Stock, Qty 20+

0

42

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 14

0

43

MTD 932-0820

Extension Spring

$11.99

$

Usually ships in 3-6 days

0

44

MTD 747-0920A

Adjustment Rod

$

$

Not available

45

MTD 710-0604A

Screw

$4.99

$

In Stock, Qty 8

0

46

MTD 918-0263A

Transmission

$

$

Not available
