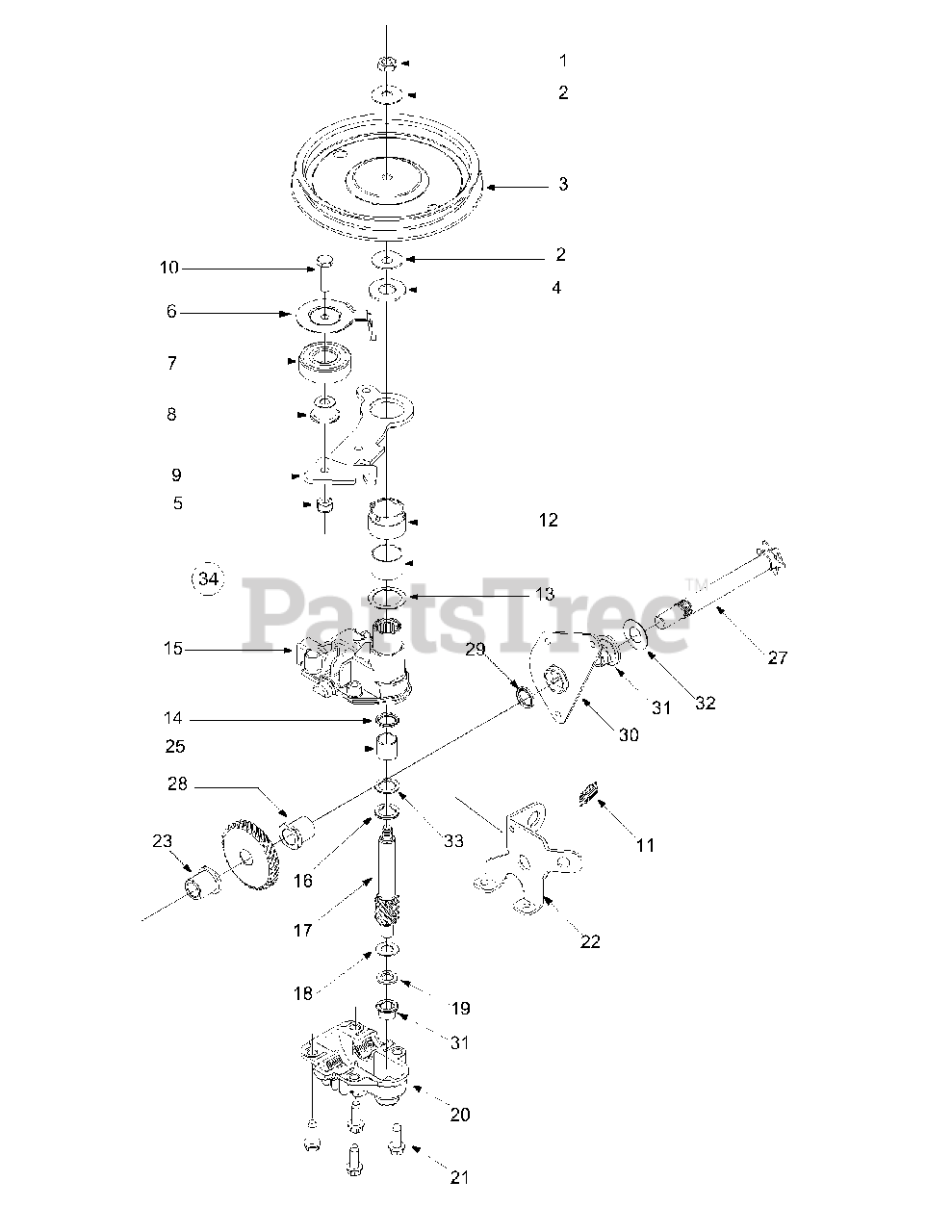

12A-378Q795 - MTD Pro Walk-Behind Mower (2004) Drive Assembly Parts Diagram

Pro Walk-Behind Mower

Drive Assembly Parts Diagram

  • Title

1

MTD 712-3025

Hex Jam Nut 5/16-24

$6.99

$

Usually ships in 3-6 days

0

2

MTD 936-0425

Bell Washer
(Superseded to 736-0425)

$

$

Not available

3

MTD 756-0656

Pulley

$34.99

$

Usually ships in 3-6 days

0

4

MTD 736-3084

Flat washer

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-0896

Hex Jam Nut

$4.49

$

In Stock, Qty 6

0

6

MTD 782-7598

Belt Keeper

$14.99

$

In Stock, only 1 left!

0

7

MTD 941-0600

Bearing

$23.99

$

In Stock, Qty 20+

0

8

MTD 750-1050

Flange Spacer

$4.99

$

Usually ships in 3-6 days

0

9

MTD 982-0027A

Idler Bracket Assembly

$17.99

$

Usually ships in 3-6 days

0

10

MTD 710-0299

Hex Cap Screw

$4.49

$

Usually ships in 3-6 days

0

11

MTD 932-0849A

Torsion Spring

$3.99

$

In Stock, Qty 5

0

12

MTD 741-0682A

Bearing Sleeve

$10.99

$

In Stock, only 2 left!

0

13

MTD 936-0570

Flat Washer 717-1487

$5.99

$

Usually ships in 3-6 days

0

14

MTD 921-0329

Oil Seal

$9.49

$

Usually ships in 3-6 days

0

15

MTD 618-0253

Upper Housing Assembly

$

$

Not available

16

MTD 936-0616

Flat Washer

$4.49

$

Usually ships in 3-6 days

0

17

MTD 717-1487

Pinion Shaft 10 T.
(Superseded to 917-1487)

$63.99

$

Usually ships in 3-6 days

0

18

MTD 936-0314

Thr. Washer
(Superseded to 736-0314)

$

$

Not available

19

MTD 936-0569

Thr. Washer

$

$

Not available

20

MTD 918-0252

Lower Housing Assembly

$42.99

$

Usually ships in 3-6 days

0

21

MTD 710-0642

Hex Screw 1/2-20 x 0.75"

$4.49

$

In Stock, Qty 20+

0

22

MTD 782-7601A-0637

Cable Bracket

$

$

Not available

23

MTD 941-0674

Bearing

$8.99

$

Usually ships in 3-6 days

0

24

MTD 911-0066

Shaft Assembly

$

$

Not available

25

MTD 741-0678

Bearing Sleeve

$

$

Currently unavailable

26

MTD 717-1469

Gear 34 T.

$58.99

$

Usually ships in 3-6 days

0

27

MTD 711-1168

Output shaft 6 T.

$31.99

$

Usually ships in 3-6 days

0

28

MTD 941-0673

Flange Bearing

$5.99

$

In Stock, only 2 left!

0

29

MTD 921-0329

Oil Seal

$9.49

$

Usually ships in 3-6 days

0

30

MTD 782-7595

Pivot Bracket

$24.99

$

Usually ships in 3-6 days

0

31

MTD 741-0324A

Flange Bearing

$7.49

$

In Stock, Qty 8

0

32

MTD 936-0369

Flat Washer
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 6

0

33

MTD 741-0690

Thrust Bearing

$4.49

$

Usually ships in 3-6 days

0

34

MTD 918-0263A

Transmission Assembly Complete

$271.99

$

Usually ships in 3-6 days

0
