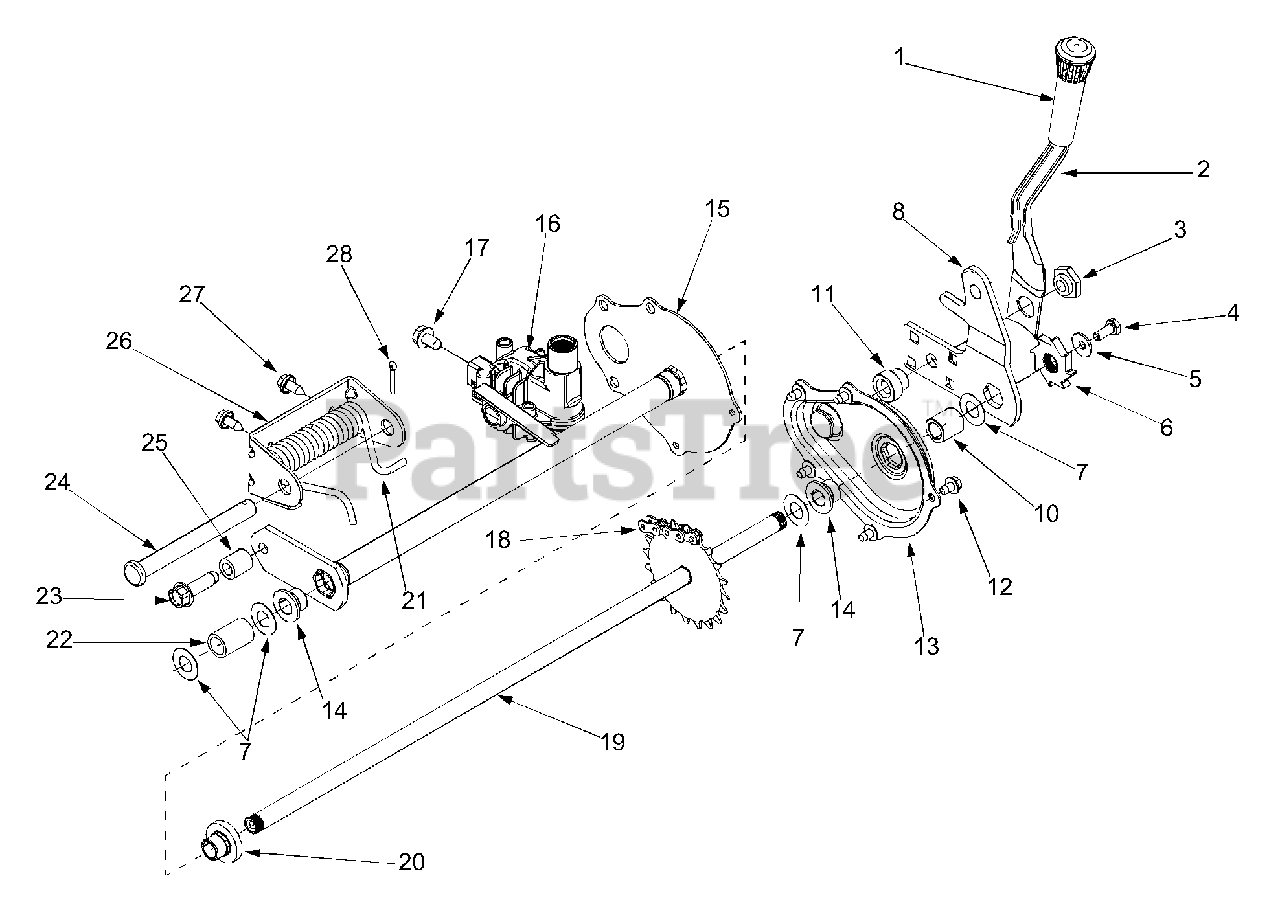

12A-388Q701 - Yard-Man Walk-Behind Mower (2004) Drive Parts Diagram

Walk-Behind Mower

Drive Parts Diagram

  • Title

1

MTD 720-0223

Grip

$13.99

$

In Stock, Qty 9

0

2

MTD 732-0803A

Spring Lever

$14.99

$

In Stock, Qty 20+

0

3

MTD 738-0529

Shoulder Nut.825 x.165 Lg.
(Superseded to 938-0529)

$10.99

$

In Stock, only 4 left!

0

4

MTD 710-0751

Cap Screw 1/4-20 x.620

$3.99

$

In Stock, Qty 20+

0

5

MTD 736-0270

Bell Washer.285 ID x.75 OD

$3.99

$

In Stock, Qty 10

0

6

MTD 748-0318

Wheel Rachet
(Superseded to 948-0318)

$9.99

$

In Stock, Qty 6

0

7

MTD 736-0369

Flat Washer.508 ID x 1.0 OD

$4.49

$

In Stock, Qty 6

0

8

MTD 682-0531

Pivot Arm Assembly
(Superseded to 682-0531-0637)

Variations

MTD 682-0531-0637

Pivot Arm, Rear - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

10

MTD 741-0978

Sleeve Bearing.504 ID x.830 OD

$4.49

$

In Stock, Qty 6

0

11

MTD 750-1056

Shoulder Spacer
(Superseded to 950-1056)

$6.99

$

In Stock, only 2 left!

0

12

MTD 710-0653

Tap Screw 1/4-20 x.375

$4.49

$

In Stock, Qty 16

0

13

MTD 682-7528

Chain Cover Assembly
(Superseded to 682-7528-0637)

Variations

MTD 682-7528-0637

Chain Assembly Cover, Black - POWDER BLACK (0637)

$

$

Not available

$

$

14

MTD 741-0324

Flange Bearing.506 ID x.590 Lg
(Superseded to 741-0324A)

$7.49

$

In Stock, Qty 8

0

15

MTD 682-7526

Transmission Axle Assembly
(Superseded to 682-7526-0637)

Variations

MTD 682-7526-0637

AXLE:CHAIN ASM. - POWDER BLACK (0637)

$122.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

16

MTD 618-0263A

Transmission Assembly Complete
(Superseded to 918-0263A)

$271.99

$

Usually ships in 3-6 days

0

17

MTD 710-0604A

Hex Screw 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

MTD 713-0453

Chain
(Superseded to 913-0453)

$11.99

$

In Stock, only 2 left!

0

19

MTD 638-0012

Rear Axle Assembly
(Superseded to 938-0012A)

$69.99

$

Usually ships in 3-6 days

0

20

MTD 741-0522

Flange Bearing.506 ID x.715 Lg

$7.99

$

In Stock, only 2 left!

0

21

MTD 732-0832

Torsion Spring

$17.99

$

Usually ships in 3-6 days

0

22

MTD 750-0151

Spacer.550 ID x.750 OD
(Superseded to 950-0151)

$9.99

$

In Stock, Qty 20+

0

23

MTD 710-1315

Screw 3/8-16 x.25

$3.99

$

In Stock, Qty 20+

0

24

MTD 711-0835

Clevis Pin.50 Dia x 4.82 Lg.
(Superseded to 911-0835)

$11.99

$

In Stock, Qty 6

0

25

MTD 750-0807

Spacer.385 ID x.624 OD

$5.99

$

Usually ships in 3-6 days

0

26

MTD 782-0568

Hgt Adjustment Spring Bracket
(Superseded to 782-0568B-0637)

Variations

MTD 782-0568-0637

BRACKET.LIFT ASSY. - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 710-1652

Screw 1/4-14 x.825

$3.99

$

In Stock, Qty 20+

0

28

MTD 714-0474

Cotter Pin

$4.49

$

In Stock, Qty 16

0
