12A-446L163 - Bolens Walk-Behind Mower (2003) Shroud Chart Parts Diagram

Walk-Behind Mower

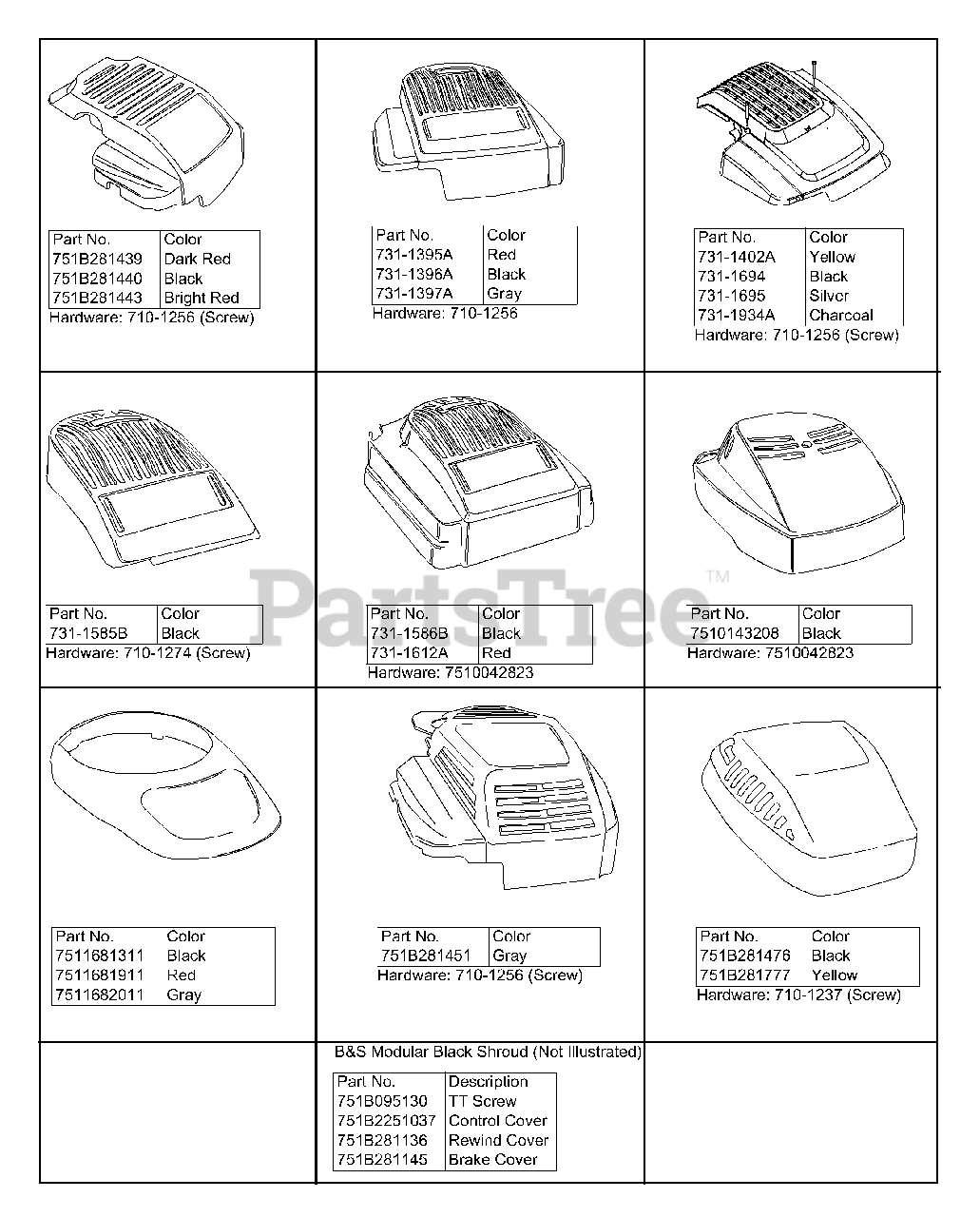

Shroud Chart Parts Diagram

  • Title

751B281439

MTD 751B281439

Shroud, Dark Red

$

$

Not available

751B281440

MTD 751B281440

Shroud, Black

$

$

Not available

751B281443

MTD 751B281443

Shroud, Bright Red

$

$

Not available

7101256

MTD 710-1256

Hardware: Screw

$6.49

$

In Stock, only 1 left!

0

7311395A

MTD 731-1395A

Shroud, Red

$

$

Not available

7311396A

MTD 731-1396A

Shroud, Black

$

$

Not available

7311397A

MTD 731-1397A

Shroud, Gray
(Superseded to 731-1396A)

$

$

Not available

7101256

MTD 710-1256

Hardware

$6.49

$

In Stock, only 1 left!

0

7311402A

MTD 731-1402A

Shroud, Yellow

$

$

Not available

7311694

MTD 731-1694

Shroud, Black

$

$

Not available

7311695

MTD 731-1695

Shroud, Silver

$

$

Not available

7311934A

MTD 731-1934A

Shroud, Charcoal

$

$

Not available

7311585B

MTD 731-1585B

Shroud, Black

$

$

Not available

7101274

MTD 710-1274

Hardware: Screw
(Superseded to 910-1274)

$

$

Not available

7311586B

MTD 731-1586B

Shroud, Black

$

$

Not available

7311612A

MTD 731-1612A

Shroud, Red

$

$

Not available

7510042823

MTD 7510042823

Hardware

$

$

Not available

7510143208

MTD 7510143208

Shroud, Black

$

$

Not available

7511681311

MTD 7511681311

Shroud, Black

$

$

Not available

7511681911

MTD 7511681911

Shroud, Red

$

$

Currently unavailable

7511682011

MTD 7511682011

Shroud, Gray

$

$

Not available

751B281451

MTD 751B281451

Shroud, Gray

$

$

Not available

751B281476

MTD 751B281476

Shroud, Black

$

$

Not available

751B281777

MTD 751B281777

Shroud, Yellow
(Superseded to 751B281476)

$

$

Not available

7101237

MTD 710-1237

Hardware: Screw

$4.99

$

Usually ships in 3-6 days

0

751B095130

MTD 751B095130

TT Screw
(Superseded to BS-691147)

Note: B&S Modular Black Shroud (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

751B2251037

MTD 751B2251037

Control Cover

Note: B&S Modular Black Shroud (Not Illustrated)

$

$

Currently unavailable

751B281136

MTD 751B281136

Rewind Cover

Note: B&S Modular Black Shroud (Not Illustrated)

$

$

Not available

751B281145

MTD 751B281145

Brake Cover
(Superseded to BS-690595)

Note: B&S Modular Black Shroud (Not Illustrated)

$11.99

$

Usually ships in 2-12 days

0
