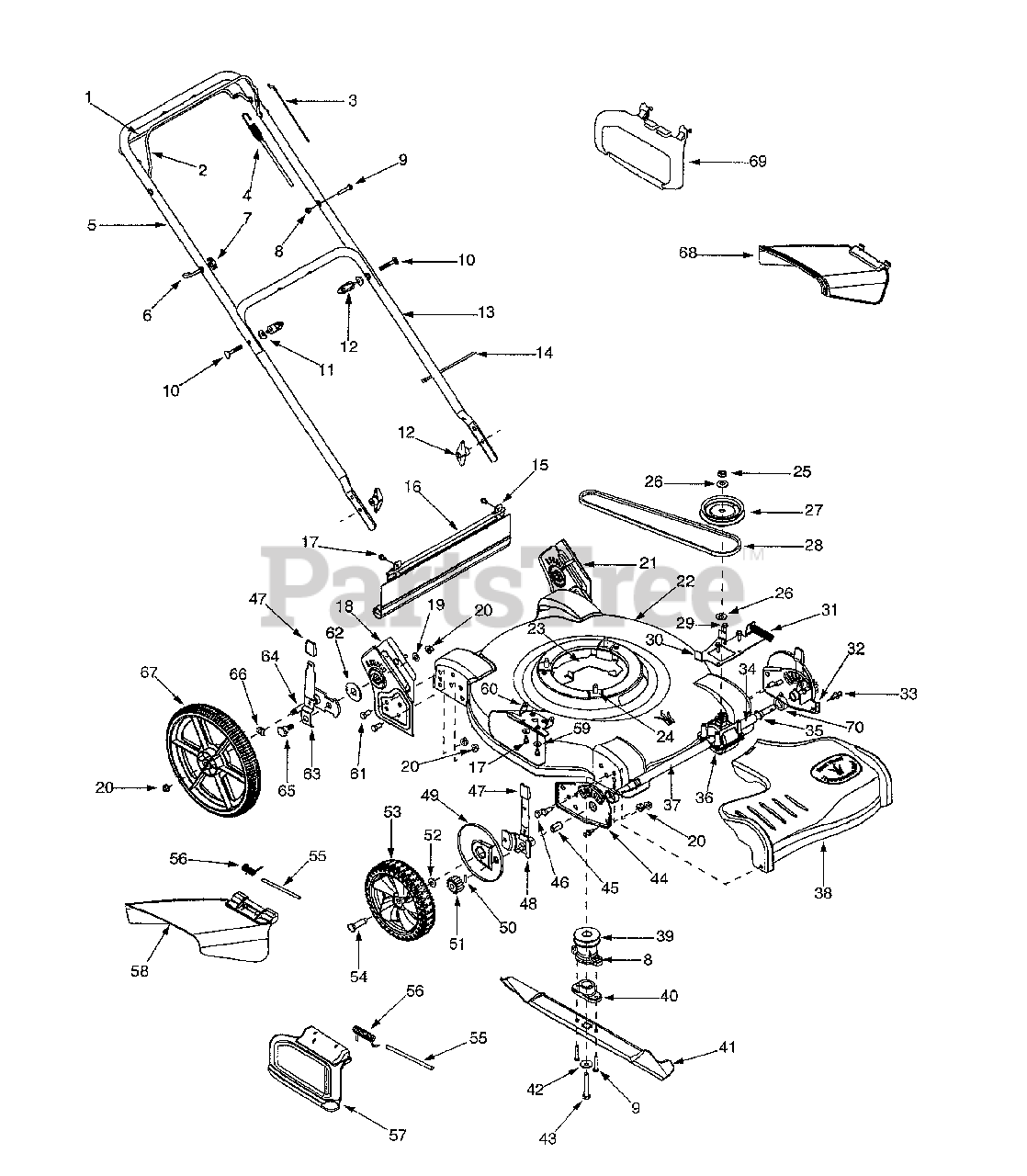

12A-529B098 - Wizard Walk-Behind Mower (2001) (Western Auto) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-1214

Drive Control Handle

$22.99

$

In Stock, Qty 9

0

2

MTD 747-1161A

Blade Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, Qty 20+

0

$13.99

$

In Stock, Qty 20+

0

3

MTD 746-1113

Blade Control Cable - B&S
(Superseded to 946-1113A)

$19.99

$

In Stock, Qty 20+

0

3

MTD 746-1132

Blade Control Cable - B&S
(Superseded to 946-1132)

$22.99

$

In Stock, Qty 20+

0

3

MTD 746-1114

Blade Control Cable - Tec
(Superseded to 946-1114)

$23.99

$

In Stock, Qty 7

0

4

MTD 746-1092A

Drive Control Cable
(Superseded to 946-1092A)

Note: 5/16 dia. shank ball end

$41.99

$

Usually ships in 3-6 days

0

4

MTD 746-04204

Drive Control Cable
(Superseded to 946-04204)

Note: Z fitting end, die cast

$45.99

$

In Stock, Qty 6

0

5

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 4 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

6

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 13

0

7

MTD 720-0279

Wing Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0606

Hex Cap Screw 1/4-20 x 1.5

$5.49

$

In Stock, Qty 13

0

10

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

11

MTD 736-0451

Shoulder Washer .320 ID x .93 OD

$4.49

$

In Stock, only 2 left!

0

12

MTD 720-0284

Wing Nut

$6.99

$

In Stock, Qty 20+

0

13

MTD 749-1093B

Lower Handle
(Superseded to 749-04037)

Variations

MTD 749-1093B-0637

Long Lower Handle - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 18

0

$53.99

$

In Stock, Qty 18

0

14

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 4 left!

0

15

MTD 782-9065

Hinge Clip

$4.49

$

In Stock, only 3 left!

0

16

MTD 731-2280

Trail Shield
(Superseded to 731-2537)

$19.99

$

In Stock, only 1 left!

0

17

MTD 710-0896

Hex Screw 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

18

MTD 682-3062A

Handle Bracket Assembly - RH
(Superseded to 982-3062A)

Variations

MTD 682-3062A-0637

BRACKET-HANDLE RH - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

19

MTD 736-3050

Flat Washer .406 ID x .812 OD

$4.49

$

In Stock, Qty 20+

0

20

MTD 712-0431

Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

21

MTD 682-3063A

Handle Bracket Assembly- LH

Variations

MTD 682-3063A-0637

No Longer Available BRACKET-HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 682-0096

Deck Assembly 22"
(Superseded to 687-02046)

Variations

MTD 682-0096-0665

DECK ASM-22" SIDE DISCHARGE - YARDMAN GREEN (0665)

$209.99

$

Usually ships in 3-6 days

0

MTD 682-0096-0629

No Longer Available DECK ASM-2 - SILVER FLAKE (0629)

$

$

Not available

MTD 682-0096-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0096-0691

No Longer Available DECK ASM-2 - BLACK JACK (0691)

$

$

Not available

MTD 682-0096-0709

DECK ASM-22" SIDE DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 682-0096-0717

No Longer Available DECK ASM-2 - SILVER MIST (0717)

$

$

Not available

$182.99

$

Usually ships in 3-6 days

0

23

MTD 782-9063

Engine Belt Keeper Bracket
(Superseded to 782-9063B-0637)

$26.99

$

Usually ships in 3-6 days

0

24

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 4 left!

0

25

MTD 712-0240

Jam Nut 7/16-20
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0407

Bell Washer .45 ID x 1.00 OD

$3.99

$

In Stock, Qty 7

0

27

MTD 756-1167

Pulley

$

$

Not available

28

MTD 754-0483

V-Belt
(Superseded to 954-0483)

$16.99

$

In Stock, only 4 left!

0

29

MTD 710-1276

Hex Washer Screw 1/4-20 x .750

$4.49

$

Usually ships in 3-6 days

0

30

MTD 782-9062

Transmission Belt Keeper Bracket

$

$

Not available

31

MTD 732-0992

Compression Spring

$4.99

$

Usually ships in 3-6 days

0

32

MTD 782-0585

Forward Height Adjustment Plate - LH
(Superseded to 782-0585A-0637)

Variations

MTD 782-0585-0637

Height Adjust Plate - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

33

MTD 728-0199

Rivet

$4.49

$

In Stock, Qty 20+

0

34

MTD 750-1209

Sleeve Spacer .550 ID x 2.5

$

$

Not available

35

MTD 716-0198

Retainer Ring

$4.99

$

In Stock, Qty 13

0

36

MTD 618-0607

Transmission Assembly
(Superseded to 918-0607A)

$

$

Not available

37

MTD 750-1210

Sleeve Spacer .550 ID x 8.9

$

$

Not available

38

MTD 731-0073

Transmission Cover

$37.99

$

Usually ships in 3-6 days

0

39

MTD 756-1163

Drive Pulley

$48.99

$

Usually ships in 3-6 days

0

40

MTD 748-0426

Blade Adapter

$24.99

$

Usually ships in 3-6 days

0

41

MTD 742-0642A

Blade 22"
(Superseded to 942-0642A)

$26.99

$

In Stock, Qty 5

0

41

MTD 742-0742A

Mulching Blade 22"
(Superseded to 942-0742A)

$24.99

$

In Stock, Qty 7

0

42

MTD 736-0452

Bell Washer .396 ID x 1.140 OD

$4.99

$

In Stock, Qty 15

0

43

MTD 710-1044

Hex Cap Screw 3/8-24 x 1.5

$3.99

$

In Stock, Qty 20+

0

44

MTD 782-0584

Forward Height Adjustment Plate - RH
(Superseded to 782-0584-0637)

Variations

MTD 782-0584-0637

Height Adjust Plate - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

45

MTD 741-0710

Sleeve Bearing

$6.49

$

Usually ships in 3-6 days

0

46

MTD 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 17

0

47

MTD 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 2 left!

0

48

MTD 682-0544

Spring Lever Assembly - LH* (FWD)

Note: *In This Application

$40.99

$

Usually ships in 3-6 days

0

48

MTD 682-0545

Spring Lever Assembly - RH* (RWD)

Note: *In This Application

$

$

Not available

49

MTD 731-2522

Wheel Dust Cover
(Superseded to 731-04643)

$8.49

$

In Stock, only 1 left!

0

50

MTD 715-0221

Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

51

MTD 717-1761

Spur Gear 14T - LH

$13.99

$

In Stock, Qty 11

0

51

MTD 717-1762

Spur Gear 14T- RH

$13.99

$

In Stock, Qty 8

0

52

MTD 736-0105

Bell Washer .401 ID x .870 OD

$4.49

$

In Stock, Qty 20+

0

53

MTD 634-0190

Front Wheel Assembly 8 x 1.8
(Superseded to 634-0190A)

$40.99

$

In Stock, Qty 20+

0

54

MTD 738-1168

Shoulder Screw 3/8
(Superseded to 938-0102)

$

$

Not available

55

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

56

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

57

MTD 631-0098

Mulching Baffle (If Equipped)

$

$

Currently unavailable

58

MTD 731-1034B

Side Discharge Assembly
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 12

0

59

MTD 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 9

0

60

MTD 731-1035B

Chute Hinge
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 12

0

61

MTD 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 17

0

62

MTD 741-0717

Thrust Bearing .688 ID x 1.938 OD

$

$

Not available

63

MTD 732-0984B

Spring Lever

$

$

Not available

64

MTD 682-0093

Rear Pivot Arm Assembly

$

$

Not available

65

MTD 738-1127

Shoulder Screw 3/8-16
(Superseded to 738-1127B)

$7.49

$

In Stock, Qty 15

0

66

MTD 736-0182

Spring Washer

$4.49

$

In Stock, Qty 10

0

67

MTD 734-1864

Rear Wheel Assembly 14 x 1.8
(Superseded to 734-04030)

$76.99

$

In Stock, only 1 left!

0

68

MTD 731-2230

Snap Discharge Chute (If Equipped)

$

$

Not available

69

MTD 731-1386C

Snap Mulching Plug (If Equipped)
(Superseded to 731-1386D)

$

$

Not available

70

MTD 748-0390

Bearing Spacer

$5.99

$

In Stock, Qty 10

0

MTD 716-0865

Snap Ring .500

Note: Not shown

$4.49

$

In Stock, only 3 left!

0

MTD 736-0105

Washer Spacer .401 ID x .870 OD

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

MTD 712-0130

Hex Lock Nut 3/8-16

Note: Not shown

$3.99

$

In Stock, Qty 20+
